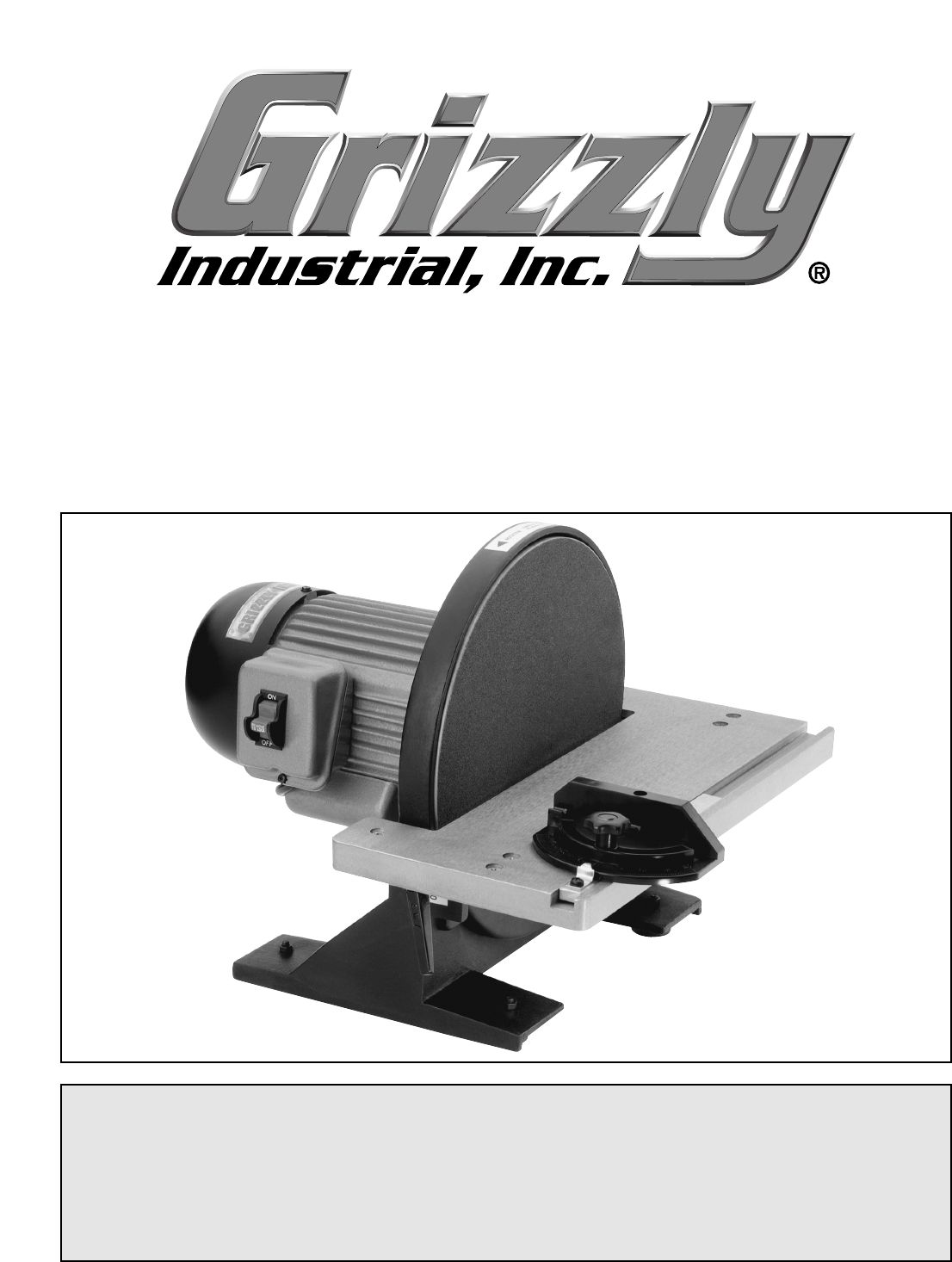

2" DISC SANDER MODEL G7297 INSTRUCTION MANUAL COPYRIGHT © JUNE, 2003 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. PRINTED IN CHINA ONLINE MANUAL DISCLAIMER THE INFORMATION IN THIS MANUAL REPRESENTS THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CONFIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED.
WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks, cement, and other masonry products. • Arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work.
TABLE OF CONTENTS SECTION 1: SAFETY ..............................................................................................2 Safety Instructions for Power Tools ....................................................................2 Additional Safety Instructions for Sanders ..........................................................4 SECTION 2: INTRODUCTION ..................................................................................5 SECTION 3: CIRCUIT REQUIREMENTS ...............................
SECTION 1: SAFETY For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
Safety Instructions for Power Tools 9. USE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. Conductor size should be in accordance with the chart below. The amperage rating should be listed on the motor or tool nameplate. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Your extension cord must also contain a ground wire and plug pin. Always repair or replace extension cords if they become damaged.
Additional Safety Instructions for Sanders 1. BE AWARE OF DISC ROTATION when sanding. 7. DO NOT OPERATE SANDER with a damaged or badly worn disc or belt. 2. KEEP FINGERTIPS AWAY from the moving disc. Serious injury could result if skin contacts abrasives or moving parts. 8. WHEN DISC SANDING, feed material into the portion of the disc spinning down toward the table. 3. NEVER USE EXCESSIVE FORCE when sanding. Doing this greatly increases the chances of personal injury and motor overload. 9.
SECTION 2: INTRODUCTION If you have any comments regarding this manual, please write to us at the address below: Read the manual before assembly and operation. Serious personal injury may result if safety or operational information is not understood or followed. We are proud to offer the Model G7297 Disc Sander. This 12" disc sander is a part of a growing Grizzly family of fine woodworking machinery.
SECTION 3: CIRCUIT REQUIREMENTS 110 Volt Operation Amperage Draw The Model G7297 Disc Sander motor is wired to operate at 110V and will draw the following load: Motor Load............................................10 Amps Plug Type The Model G7297 Disc Sander is supplied with a NEMA 5-15 plug. See Figure 1 for a NEMA 5-15 plug and grounded outlet. DO NOT modify the plug or power cord in any way. Circuit Breaker Requirements We recommend that you dedicate a circuit to your machine.
Grounding In the event of an electrical short, grounding reduces the risk of electric shock by providing a path of least resistance to disperse electric current. This tool is equipped with a power cord that has an equipment-grounding prong. The outlet must be properly installed and grounded in accordance with all local codes and ordinances. Electrocution or a fire can result if the machine is not grounded correctly. Make sure all electrical circuits are grounded. DO NOT use ungrounded machines.
SECTION 4: IDENTIFICATION 2 1 3 4 8 6 5 7 The following is a list of controls and components on the Model G7297 Disc Sander. Please take time to become familiar with each item and its location. These items will be used throughout the manual and knowing them is essential to understanding the instructions and terminology used in this manual. 1. 2. 3. 4. 5. 6. 7. 8.
SECTION 5: SET UP G7297 Inventory Unpacking The machine is shipped from the manufacturer in a carefully packed cardboard box. If you discover the machine is damaged after you’ve signed for delivery, and the truck and driver are gone, you will need to file a freight claim with the carrier. Save the containers and all packing materials for possible inspection by the carrier or its agent. Without the packing materials, filing a freight claim can be difficult.
Site Considerations Weight Load The Model G7297 Disc Sander is a small weight load with a small footprint. Most shop floors and workbenches should be sufficient to carry the weight of the machine. Reinforce the floor and workbench if you question its ability to support the weight. Working Clearance Working clearances can be thought of as the distances between machines and obstacles that allow safe operation of every machine without limitation.
SECTION 6: ADJUSTMENTS General Table Tilt This section will cover the basic adjustment instructions needed to begin operation. Complete the adjustments provided in this manual and then read the remaining portion of the manual before attempting any type of operation. When the table tilt is set to 0˚, the table should be adjusted perpendicular to the sanding disc face. To adjust table tilt: 1.
Miter Gauge The miter gauge needs to be adjusted perpendicular to the face of the wheel when it is mounted in the table slot. To adjust miter gauge: Attaching Sandpaper The Model G7297 Disc Sander accepts 12" diameter cloth or paper-backed PSA sanding discs. These are available in a variety of grits. See the current Grizzly catalog for prices and ordering information. 1.
3. Position the exposed adhesive on the upper half of the disc that extends above the table. Once it is positioned evenly across the disc, press the adhesive onto the surface. 4. Now rotate the disc so the lower half is now above the table. 5. Bend the paper back and remove the remaining half of the protective layer (Figure 6), and then press this portion against the disc. Aligning Table The table must be aligned to the face of the sanding disc so that the sandpaper does not rub against the table.
SECTION 7: OPERATIONS Disc Sanding General This section will cover basic disc sanding operations. Please read the remaining portion of the manual before attempting any type of operation. To perform sanding operations: 1. Set the angle of the table relative to the sanding disc. The angle can be set with the angle gauge on the disc sander or with a protractor for greater accuracy. 2.
Miter Sanding Angle Sanding The most efficient way to get a perfect miter is to cut the workpiece slightly long and sand it to the desired dimension. Miter sanding can be done easily with the miter gauge: To perform angle sanding operations: To perform miter sanding operations: 1. Loosen the knob on the miter gauge and adjust the angle to the desired point. Tighten the knob. 2. Slide the miter gauge into its slot and use it to hold your workpiece in position.
SECTION 8: MAINTENANCE Maintenance Safety Schedule Your safety is important! Please follow the warnings below during this entire section: Following a maintainance schedule ensures that your machine is safe and performs accurately. Check the following items before you use the disc sander: Serious personal injury could occur if you connect your machine to the power source during the maintenance process. DO NOT connect the machine to the power source while performing any maintenance on this machine.
SECTION 9: REFERENCE INFO General This section contains the following subsections for the Model G7297 Disc Sander: aftermarket accessories, data sheets, wiring diagrams, parts diagrams and list, troubleshooting, and warranty/return information. If you need parts or help in assembling your machine, or if you need operational information, call the service department at (570) 546-9663. Trained service technicians will be glad to help you.
TROUBLESHOOTING GUIDE SYMPTOM CORRECTIVE ACTION POSSIBLE CAUSE Motor will not start; 1. fuses or circuit break- 2. ers blow. 3. No voltage. Incorrect fuses or circuit breakers in power line. Bad wiring in motor, or faulty start capacitor. 1. 2. Check for tripped fuse or breaker. Install correct fuses or circuit breakers. 3. 4. Short circuit in line cord or plug. 4. Inspect all connections on motor for loose or shorted terminals, replace start capacitor.
MACHINE DATA SHEET Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 GRIZZLY MODEL G7297 12" DISC SANDER Design Type.................................................................................................... Bench Model Overall Dimensions and Specifications: Height ..................................................................................................................141⁄2'' Width ...................................................................
45 58 12 46 64 49 48 47 nt rta po re r im fo be l fo t.
REF PART # 001 002 003 004 008 009 010 012 013 014 015 018 019 020 021 022 023 024 025 026 027 028 029 030 031 032 033 034 035 036 036A 037 038 039 041 042 043 043A 045 046 047 048 049 050 051 053 054 055 057 G4255 P7297002 P6204 PK23M PC100A PS07M P7297010 P7297012 PS07M P7297014 PS06M PS47M P7297019 P7297020 PW03M P7297022 PN01M PW03M P7297025 P7297026 PS26M P7297028 PLW03M PS26M P7297031 PS19M P7297033 P7297034 PW03M P7297036 P7297036 P7297037 P7297038 PN01M P7297041 PFH06M P7297043 P7297043 P7297045
Warranty and Returns Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
