-1-

These shaper bits have sharp edges. Use care

while removing the waxy protective coating.

Never turn on the shaper with the protective

coating still on the bit.

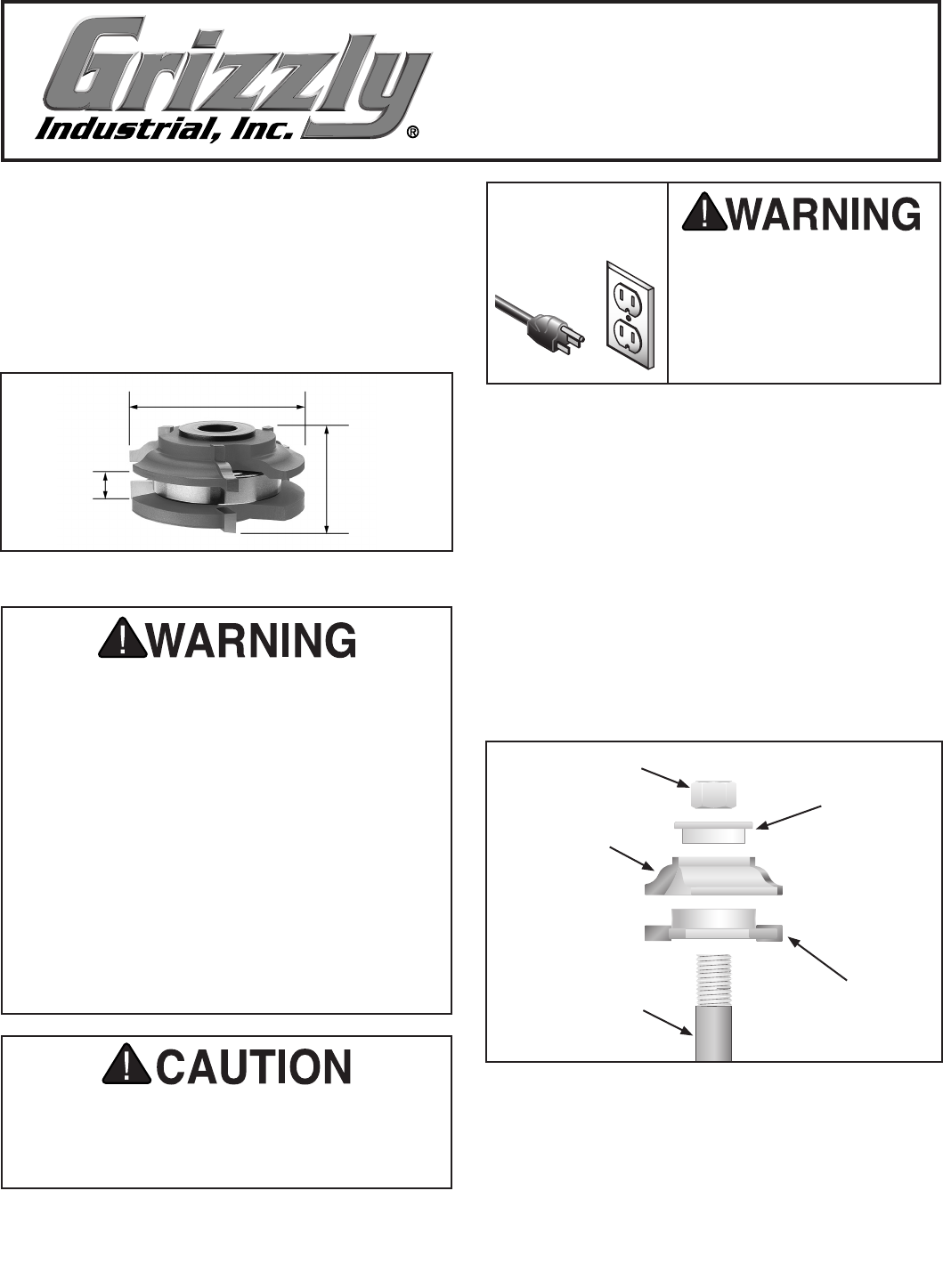

INSTRUCTIONS FOR

C2314-C2317 REVERSIBLE

STILE AND RAIL SET

For safety and best results, we recommend using

a shaper with adjustable fences and a miter gauge.

These instructions are only intended for setting up

the cutter for counterclockwise rotation.

To cut the rail ends:

1. UNPLUG THE SHAPER!

2. Slide the flat cutter, bearing side up, over the

spindle as shown in Figure A

Always disconnect power

to the machine when set

ting up or making adjust

ments. Failure to do this

may result in serious per

sonal injury.

The Model C2314-C2317 Reversible Stile and Rail

Sets allow you to shape ¾" material into door stiles

and then simply reverse the cutter components to

shape the door rails. This set comes complete with

a ball bearing guide and shims.

Introduction

⁄2"

⁄4"

Figure A. Set-up for cutting rails.

• Failure to follow these guidelines will result

in serious personal injury.

• Follow the safety guidelines set forth by the

manufacturer of the shaper.

• DO NOT remove guards and anti-kickback

devices from the shaper.

• ALWAYS WEAR ANSI APPROVED EYE AND

EAR PROTECTION when using this bit.

• Unplug shaper before installing or

adjusting

cutter.

• Always inspect workpiece for cracks, knots,

or other imperfections that could cause the

workpiece to kick or shatter while milling.

• Always feed the workpiece against the cut

ter rotation.

Reversible Stile and Rail Set

Cutting Rails

Spindle Nut

Bushing

Profile

Cutter

Flat

Cutter

Spindle

3. Place the bushing into the hole in the profile cut-

ter and slide both onto the spindle.

4. Thread the spindle nut against the bushing and

tighten it with a wrench.

Summary of content (3 pages)

PAGE 1
INSTRUCTIONS FOR C2314-C2317 REVERSIBLE STILE AND RAIL SET Introduction ! The Model C2314-C2317 Reversible Stile and Rail Sets allow you to shape ¾" material into door stiles and then simply reverse the cutter components to shape the door rails. This set comes complete with a ball bearing guide and shims. 21⁄2" ⁄4" 1 Always disconnect power to the machine when setting up or making adjustments. Failure to do this may result in serious personal injury.
PAGE 2
5. Use a straightedge to align the fences with the edge of the guide bearing. 6. Align the bottom edge of the shaper cutter with the top, or slightly below the top of the table. 7. Before turning the shaper ON, place a test rail on against the miter gauge finished face up and slide it against the fence. Cutting Stiles To cut the stile edges: 1. Unplug the shaper! 2. Place the bushing into the hole in the profile cutter from the bottom, as shown in Figure C, and slide both onto the spindle.
PAGE 3
Adjustments NOTICE If the test pieces are not flush (Figure D) then check the following: Improper Height Adjustment Shown If you have never used this type of machine or equipment before, WE STRONGLY RECOMMEND that you read books, trade magazines, or get formal training before beginning any projects. Regardless of the content in this instruction sheet, Grizzly Industrial will not be held liable for accidents caused by lack of training. Figure D. Improperly fitting stile and rail.
