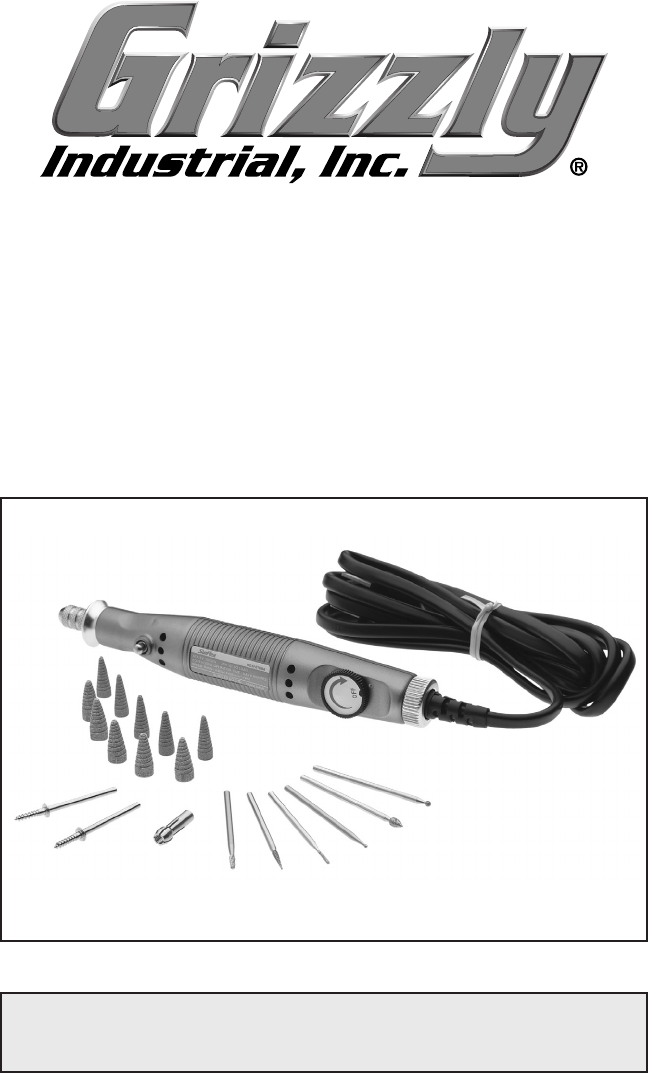

MODEL T10165 HIGH-PRECISION MINI ROTARY TOOL OWNER'S MANUAL Copyright © JUNE, 2009 By Grizzly Industrial, Inc. Warning: No portion of this manual may be reproduced in any shape or form without the written approval of Grizzly Industrial, inc.
This manual provides critical safety instructions on the proper setup, operation, maintenance and service of this machine/equipment. Failure to read, understand and follow the instructions given in this manual may result in serious personal injury, including amputation, electrocution or death. The owner of this machine/equipment is solely responsible for its safe use.
SAFETY For Your Own Safety Read Instruction Manual Before Operating This Equipment The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words which are intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
Safety Instructions For Machinery 7. Only allow trained and properly supervised personnel to operate machinery. Make sure operation instructions are safe and clearly understood. 8. KEEP CHILDREN AND VISITORS AWAY. Keep all children and visitors a safe distance from the work area. 9. MAKE WORKSHOP CHILD PROOF. Use padlocks, master switches, and remove switch keys. 10. NEVER LEAVE WHEN MACHINE IS RUNNING. Turn power off and allow all moving parts to come to a complete stop before leaving machine unattended.
Additional Safety Instructions for Mini Rotary Tool 1. CLAMP THE WORKPIECE. If the spinning tool slips from the workpiece while you are holding it, you could suffer piercing or abrasion injuries. DO NOT hold the workpiece with one hand and operate the tool with the other. Secure the workpiece in a vise or work-holding device before starting the rotary tool. 2. EXPLOSION HAZARDS. Sparks from the grinding operation can easily ignite flammable gasses, fluids, or materials.
INTRODUCTION Foreword Contact Info We are proud to offer the Grizzly Model T10165 High-Precision Mini Rotary Tool. This model is part of a growing Grizzly family of fine power tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to customer satisfaction. If you have any comments regarding this manual, please contact us: It is our pleasure to provide this manual with the Model T10165.
SETUP Unpacking Inventory Your new mini rotary tool was carefully packaged for safe shipping. If you discover any damage after you have signed for delivery, immediately call Customer Service at (570) 546-9663 for advice. Model T10165 Inventory (Figure 1) A. Collet 3⁄32" (pre-installed)..................... 1 B. Mini Rotary Tool.................................. 1 C. Abrasive Cones: —Coarse Grit (Yellow)........................ 5 —Medium Grit (Blue).......................... 5 D.
OPERATIONS 3. Fully insert the mandrel or bit shank into the collet until it stops, then retighten the collet nut. Operating this tool can propel objects into the air that may cause eye damage. To protect yourself from this hazard, ALWAYS wear ANSI approved safety glasses or goggles during operation. Mandrels & Bits Note: Only tighten the collet nut until the mandrel or bit cannot be removed when you tug on it. Overtightening may damage the components.
ACCESSORIES T20501—Face Shield Crown Protector 4" T20502—Face Shield Crown Protector 7" T20503—Face Shield Window T20452—"Kirova" Anti-Reflective Safety Glasses T20451—"Kirova" Clear Safety Glasses H0736—Shop Fox® Safety Glasses H7194—Bifocal Safety Glasses 1.5 H7195—Bifocal Safety Glasses 2.0 H7196—Bifocal Safety Glasses 2.5 T20502 H1432—Multi-Positional Hobby Vise This handy, go-anywhere vise features a powerful suction mechanism that securely attaches the vise to any smooth, flat surface.
REPLACEMENT PARTS 1 Consists of: 5 Each Coarse Abrasive Cones 5 Each Medium Abrasive Cones 2 Consists of: 1 Each Round Head 1.4mm Steel Bit 1 Each Cylindrical 2.1mm Steel Bit 1 Each Round Head 2mm Diamond Bit 1 Each Flame 3mm Diamond Bit 1 Each Cylindrical 1.
WARRANTY Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
