User's Manual
AUDIO
OUTPUT
GROUND
VGA
HDMI
LAN
USB
POWER
12V
1 2

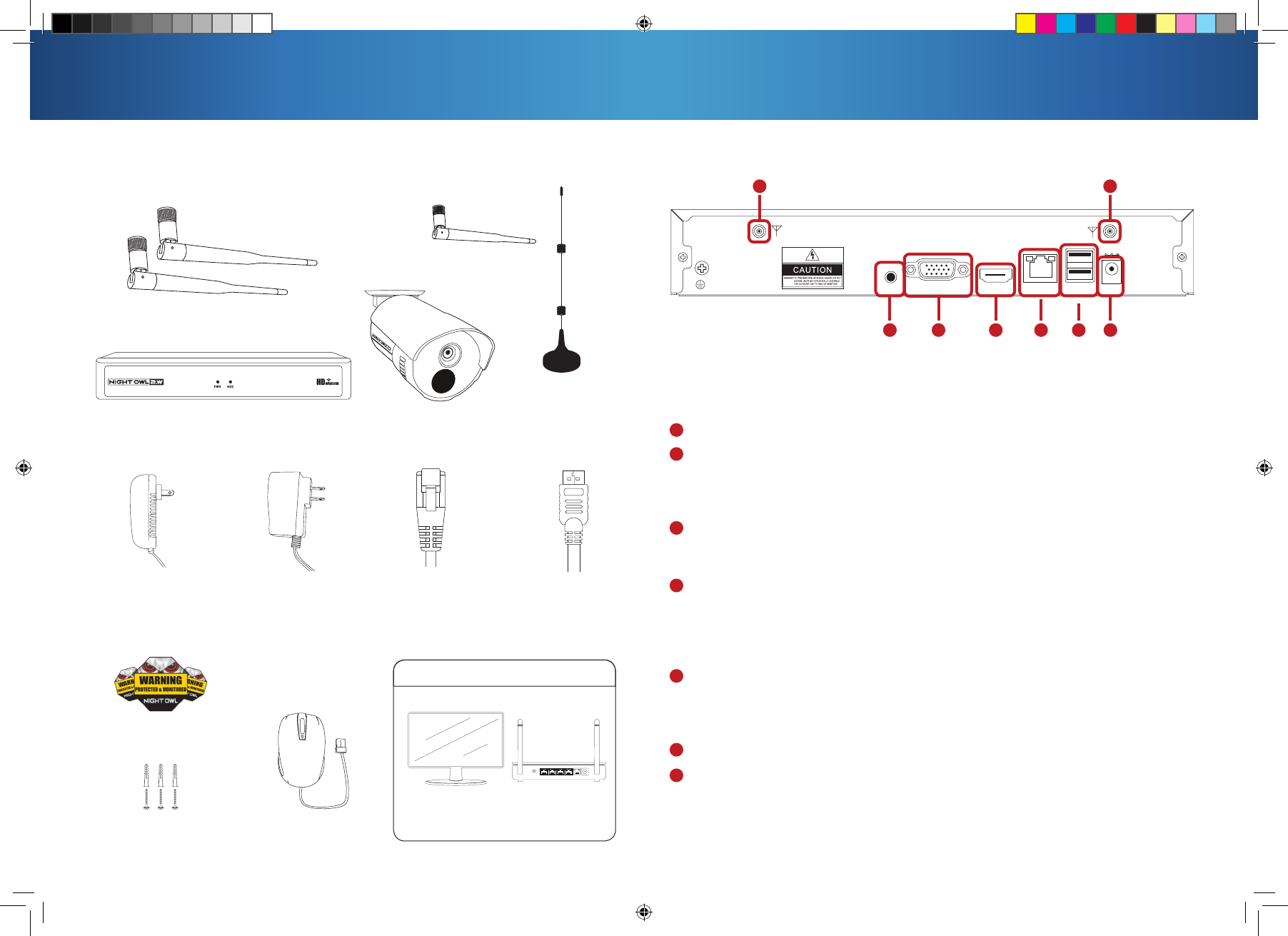

What’s in the Box
Package Contents
Wireless NVR
Camera(s)
USB Mouse (x1)
Mounting Hardware
Disclaimer: Images and Quantities may vary by model.
Safety Stickers
Monitor Router
Wireless NVR Specifications
Items Not Included
Camera Antenna
(1 per camera)
NVR Antenna (x2)
6 ft. HDMI (x1)
Wireless NVR Power
Adapter (x1)
9 ft. Camera
Power Adapter(s)
RESET
LAN1 LAN2 LAN3 LAN4 WAN
6 ft. RJ-45 Cable
(Ethernet) (x1)
Audio Output – allows for the connection of an amplified speaker.
VGA Output – VGA output allows for a video connection. If the TV/Monitor does
not have an HDMI input but does have a VGA input, connect the VGA cable
from the VGA output port on the NVR to the VGA input port on your TV/Monitor.
(VGA cable not included)
HDMI Output – HDMI output allows for a video connection. If the TV/Monitor
has an HDMI input, connect the HDMI cable from the HDMI output port on the
NVR to the HDMI input port on your TV/Monitor.
RJ-45 (Ethernet) Port – The RJ-45 port will be used to connect the Wireless
NVR to your modem/router for remote viewing. Please note that your Wireless
NVR comes with built-in Wi-Fi for the cameras to transmit to the NVR. However,
you will need to manually connect the NVR to your modem/router to remotely
view on a smart device or PC/Mac
®
.
USB Ports – USB ports allow for the connection of a USB mouse and/or a USB
flash drive. You will connect the included USB mouse to assist you in navigating
the NVR’s menu interface. You will connect a USB flash drive to download video
files from the NVR for long term storage or sharing.
Power Input – Power input is used to connect the included 12V DC power supply.
NVR Antenna Mount – for installation of two included NVR antennas.
A
B
C
D
E
F
G
Rear View
The maximum number of cameras you can connect to your Wireless NVR will be determined by the
number of channels.
A
DC
B E
F
GG
9 ft. Wi-Fi
Extender Antenna
(1 for every 4 cameras)
