User guide

MEASUREMENT
15

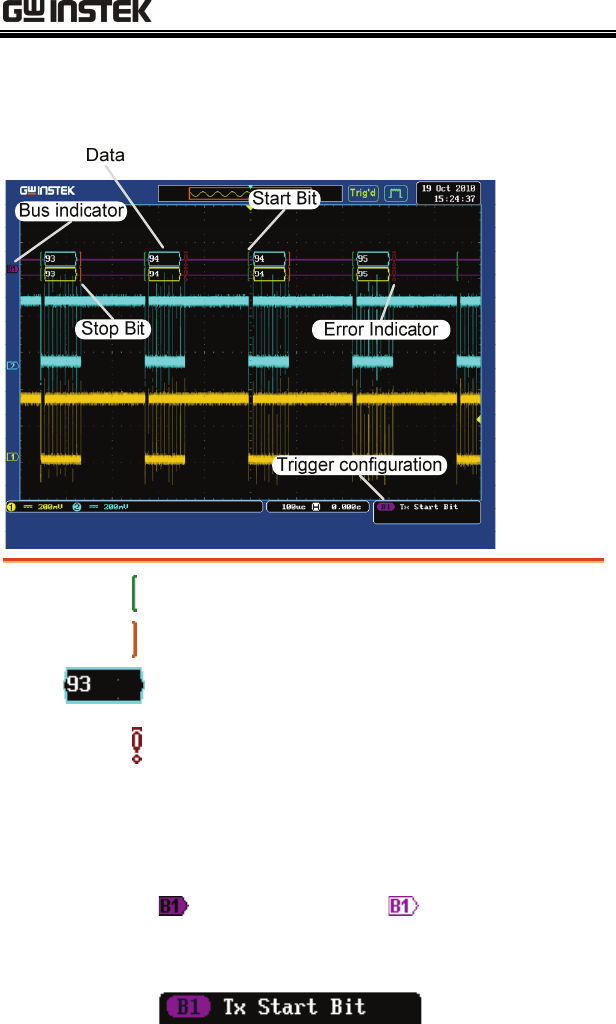

Serial Decode Display
Start Bit
The Start bit is shown as a green bracket.
Stop Bit
The Stop bit is shown as an orange bracket.
Data
Data packets can be shown in Hex or Binary. The
color of the packet is the same as the channel color.
Error Indicator
If there is an error in decoding the serial data, an
error indicator will be shown.
Bus Indicator
The Bus indicator shows the bus position. The
active bus is shown with a solid color. The Variable
knob can be used to horizontally position the Bus
indicator when it is active.
Active bus (B1)
Activated bus (B1)
Trigger
Configuration
Shows the bus trigger (B1/B2) and the Trigger On
settings.
