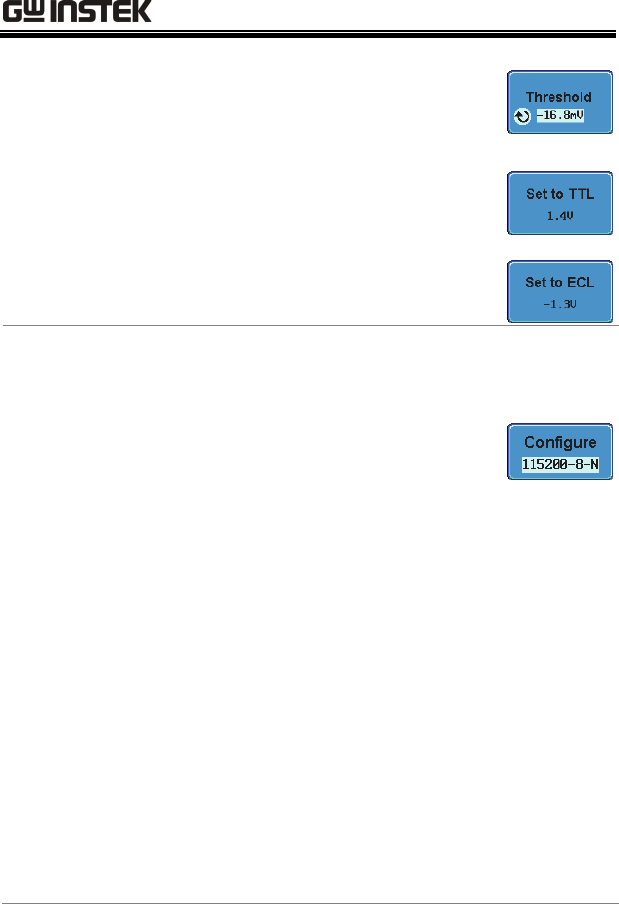

3. Press Threshold from the side menu
and configure the threshold.
Logic 0<threshold<logic 1
To set to TTL levels (1.4V), press TTL.
To set to ECL levels (-1.3V), press
ECL.
Configuration
The Configure key sets the baud rate, number of data
bits and parity.
1. Press Configure from the bottom
menu.
2. From the side menu select the Baud rate, Data
bits, Parity, Packets and End of Packet bits.
Baud Rate
50, 75, 110, 134, 150, 300, 600, 1200,
1800, 2000, 2400, 3600, 4800, 7200,
9600, 14400, 15200, 19200, 28800,
31250, 38400, 56000, 57600, 76800,
115200, 128000, 230400, 460800,
921600, 1382400, 1843200, 2764800
Data Bits
8 (fixed)
Parity
Odd, Even, None
Packets
On, Off
End of
Packet
(Hex)
00(NUL), OA(LF), OD(CR), 20(SP),
FF
