GDS-3000 Serial Decode User Manual

24

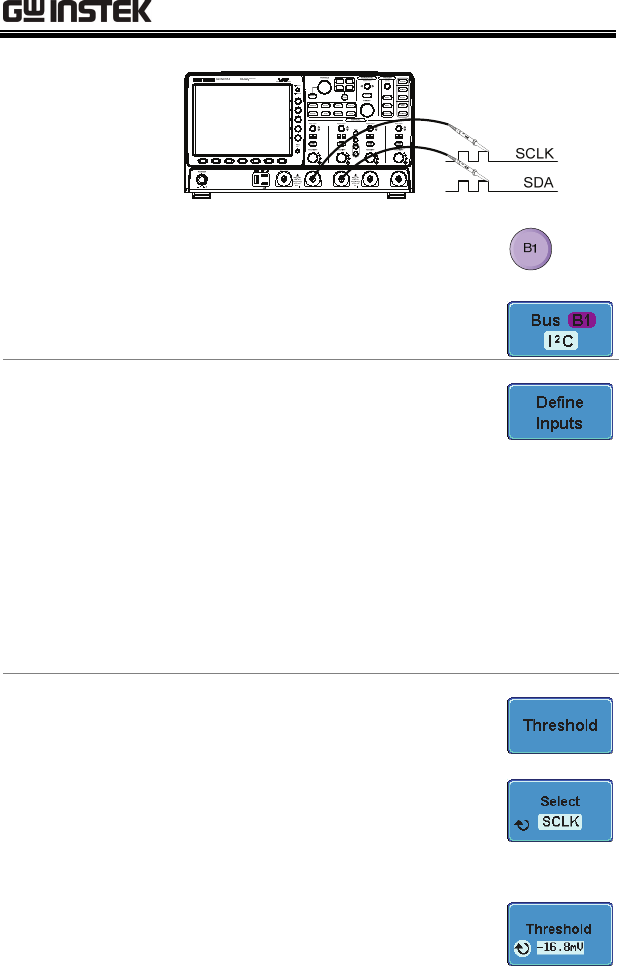

2. Press the corresponding bus key,

B1 or B2.

3. Press Bus from the bottom menu

and choose I

2

C from the side menu.

Define Inputs

1. Press Define Inputs from the lower

menu.

2. From the side menu choose the

SCLK input and the SDA Input.

SCLK

CH1~4

SDA

CH1~4

3. Choose the Addressing Mode.

Mode

7 bit, 10 bit

Set the Threshold

1. Press Threshold from the bottom

menu.

2. From the side menu Press Select to

choose SCLK or SDA thresholds.

Range

SCLK, SDA

3. Press Threshold from the side menu

and configure the threshold.
