4600g, 4600r, 4800i User’s Guide 9 - 3
SEMI Font
SEMI Font On
allows you to scan the SEMI font used in the semiconductor
industry.
All OCR Off
turns off all OCR capability in the imager, so the imager will be able
to scan linear, stacked, matrix, and composite bar codes, but not OCR fonts.
However, any OCR templates you have created will be retained in memory.
OCR Templates
You can create a custom “template,” or character string that defines the length
and content of OCR strings that will be read with your imager. There are several
choices when creating a custom template for your application. You can create a
template for a single format, you can string together several formats, and you can
create a template for a user-defined variable. These choices are described in
detail below.
Creating an OCR Template
A single template allows you to program the imager to read any combination of
characters in the order you specify. Refer to examples that follow the Template
Characters table below.

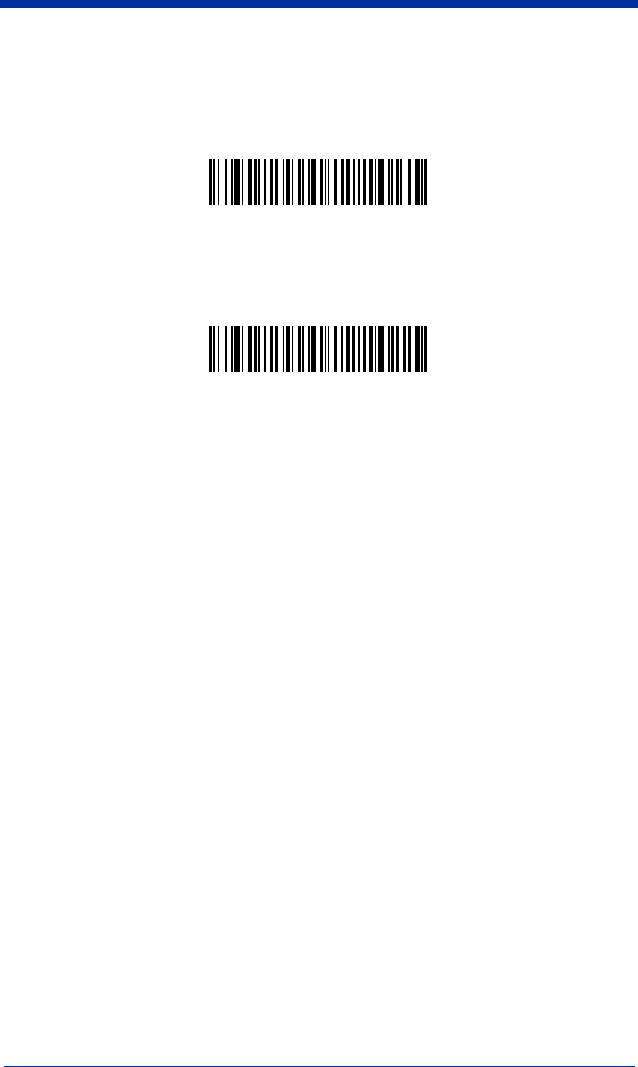

SEMI Font On
* All OCR Off
