9 - 12 4600g, 4600r, 4800i User’s Guide
OCR ISBN Application Example
One application of OCR is to read the ISBN characters typically encoded using
the OCR-A or OCR-B font. This is especially useful when the ISBN number is
not encoded in an EAN-13 bar code. The following example shows how to
configure the imager to read the ISBN strings on books in Japan. After you have

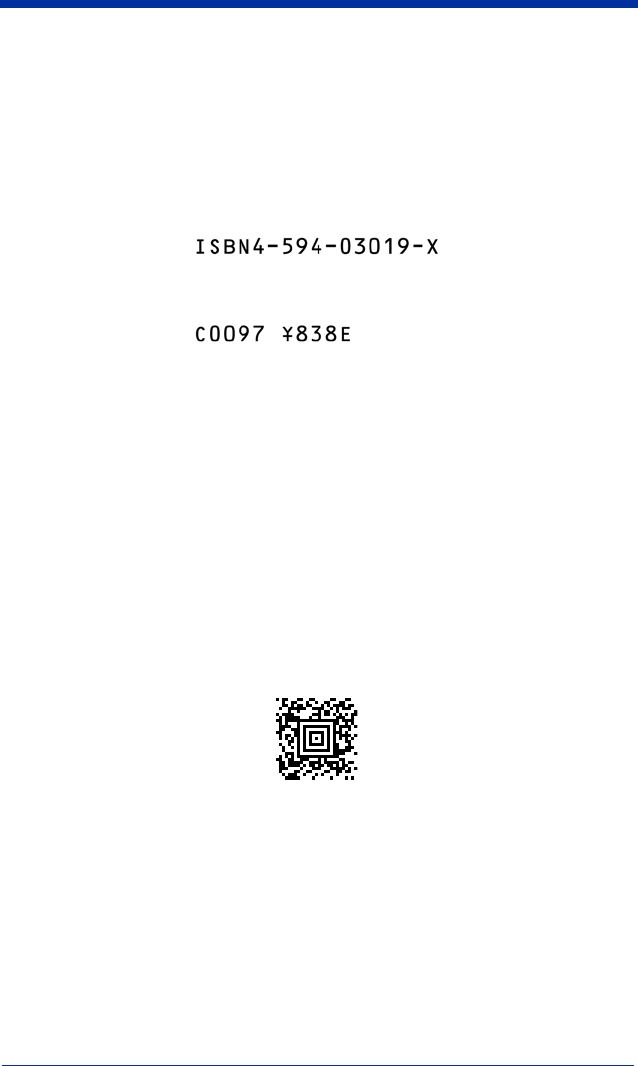

followed the steps below, you will be able to scan the following ISBN number or
the additional data below it, depending on the line of text at which the imager is
aimed.
1. Scan the OCR-B On bar code on page 9-2.
2. Program the user-defined variable “g” to comprise the ten digits plus the
dash:
0123456789-
3. In Japan, it is common for two fields to follow the ISBN number, the three
digit price field, and the four digit price field. The first field typically starts with
a “C” (uppercase c), followed by four digits. The second field typically starts
with a “P” or a yen symbol, followed by three or four digits, followed by an
“E.” Program the user-defined variable “h” to comprise the “P” and the yen
symbol (represented by a backslash).
P\
4. Scan the symbol below to set up three templates to handle the ISBN
number, the three digit price field, and the four digit price field.
