4600g, 4600r, 4800i User’s Guide 2 - 11
RS-232 Receiver Time-Out
The unit stays awake to receive data until the RS-232 Receiver Time-Out
expires. A manual or serial trigger resets the time-out. When an RS-232
receiver is sleeping, a character may be sent to wake up the receiver and reset
the time-out. A transaction on the CTS line will also wake up the receiver. The
receiver takes 300 milliseconds to completely come up. Change the RS-232
receiver time-out by scanning the bar code below, then scanning digits from the
inside back cover of this manual, then scanning
Save
. The range is 0 to 300
seconds.
Default = 0 seconds (no time-out - always on).
RS-232 Handshaking
RS-232 Handshaking allows control of data transmission from the Imager using
software commands from the host device. When this feature is turned
Off
, no
data flow control is used. When Data Flow Control is turned
On
, the host device
suspends transmission by sending the XOFF character (DC3, hex 13) to the
Imager. To resume transmission, the host sends the XON character (DC1, hex
11). Data transmission continues where it left off when XOFF was sent.
Default
= RTS/CTS, XON/XOFF and ACK/NAK Off
.

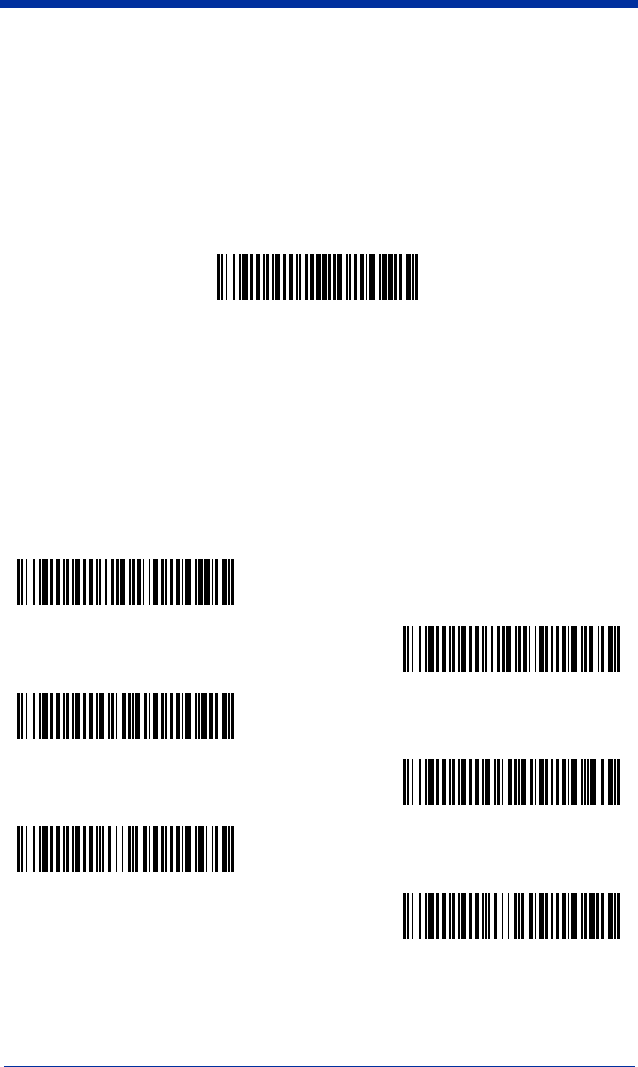

RS-232 Receiver Time-Out
RTS/CTS On
* XON/OFF Off
* RTS/CTS Off
XON/XOFF On
ACK/NAK On
* ACK/NAK Off
