4600g, 4600r, 4800i User’s Guide 3 - 7
Presentation Sensitivity
Presentation Sensitivity is a numeric range that increases or decreases the
imager's reaction time to bar code presentation. To set the sensitivity, scan the
Sensitivity
bar code, then scan the degree of sensitivity (from 0-20) from the
inside back cover, and
Save
. 0 is the most sensitive setting, and 20 is the least
sensitive.
Default = 1.
Streaming Presentation™ Mode
Note: This feature is applicable to the 4600r only.
When in Streaming Presentation mode, the imager leaves the scan illumination
on all the time and continuously searches for bar codes.
When using Preferred Symbology (page 3-14), a lower priority symbol must be
centered on the aiming pattern to be read in Streaming Presentation Mode.
Hands Free Time-Out
The Scan Stand, and Presentation, and Streaming Presentation Modes are
referred to as “hands free” modes. If the imager’s trigger is pulled when using a
hands free mode, the imager changes to manual trigger mode. You can set the
time the imager should remain in manual trigger mode by setting the Hands Free
Time-Out. Once the time-out value is reached, (if there have been no further
trigger pulls) the imager reverts to the original hands free mode.
Scan the
Hands Free Time-Out
bar code, then scan the time-out duration (from
0-300,000 milliseconds) from the inside back cover, and
Save
.
Default = 5,000
ms.

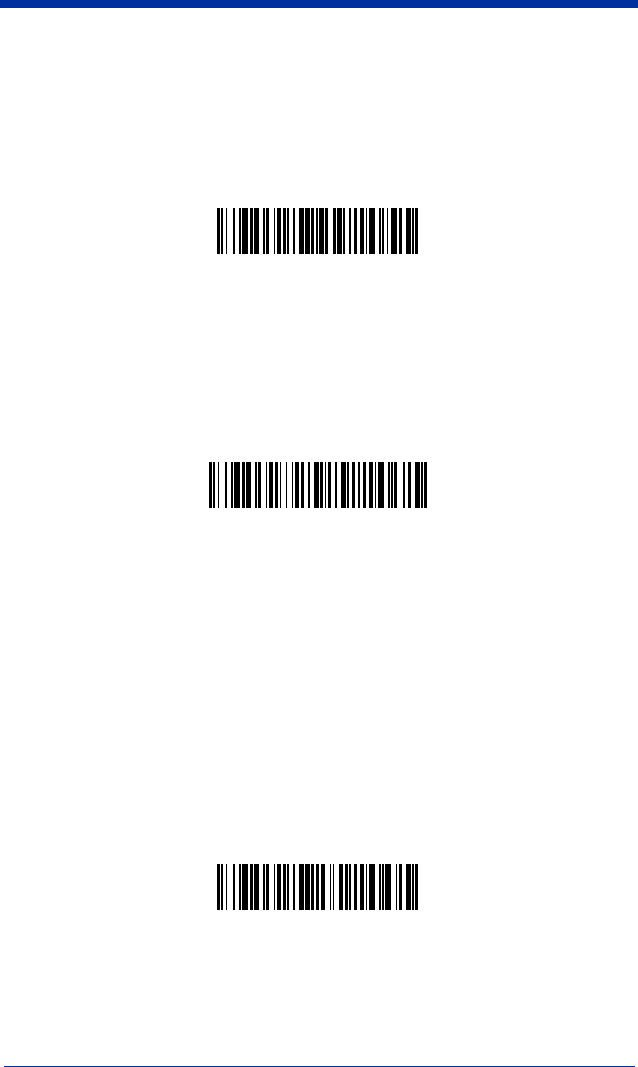

Sensitivity
Streaming Presentation Mode
Hands Free Time-Out
