Intercharacter, Interfunction, and Intermessage Delays
Some terminals drop information (characters) if data comes through too quickly.
Intercharacter, interfunction, and intermessage delays slow the transmission of
data, increasing data integrity.
Each delay is composed of a 5 millisecond step. You can program up to 99 steps
(of 5 ms each) for a range of 0-495 ms.
Intercharacter Delay
An intercharacter delay of up to 495 milliseconds (in 5 ms steps) may be placed
between the transmission of each character of scanned data. Scan the
Intercharacter Delay
bar code below, then scan the number of 5 millisecond
steps (0-99), and the
Save
bar code using the Programming Chart inside the
back cover of this manual.
To remove this delay, scan the
Intercharacter Delay
bar code, then set the
number of steps to 0. Scan the
Save
bar code using the Programming Chart
inside the back cover of this manual.
Note: Intercharacter delays are not supported in USB serial emulation.

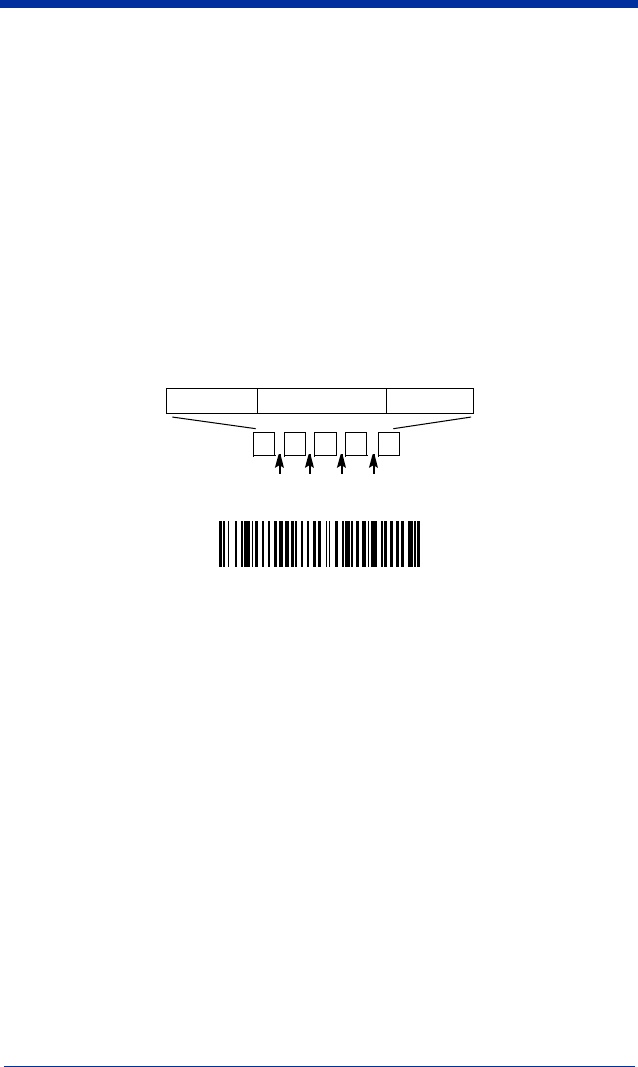

1 2345
Intercharacter Delay
Prefix Scanned Data Suffix
Intercharacter Delay
