6 - 6 4600g, 4600r, 4800i User’s Guide
When in serial mode, the imager scans until a bar code has been read or until
the deactivate command is sent. In serial mode, the imager can also be set to
turn itself off after a specified time has elapsed (see Read Time-Out, which
follows).
Read Time-Out
Use this selection to set a time-out (in milliseconds) of the imager’s trigger when
using serial commands to trigger the imager, or if the imager is in manual trigger
mode. Once the imager has timed out, you can activate the imager either by
pressing the trigger or using a serial trigger command. After scanning the
Read
Time-Out
bar code, set the time-out duration (from 0-300,000 milliseconds) by
scanning digits from the inside back cover, then scanning
Save
.
Default = 0
(infinite, or no time-out).
Note: Programming Read Time-Out in the secondary interface also programs it
in the primary interface.
Manual Trigger, Low Power
Note: Does not apply to the 4600r.
The imager powers down until the trigger is pulled. When the trigger is pulled,
the imager powers up and operates until there is no triggering for the time set
with the
Low Power Time-Out
bar code below. There is a delay of up to one
second in operation when the imager is first triggered, but there is no delay when
operating in low power time-out mode.
Note: Manual Trigger, Low Power cannot be used with keyboard wedge
applications.
Low Power Time-Out Timer
Scan the Low Power Time-Out bar code to change the time-out duration (in
seconds). Then scan the time-out duration (from 0-300 seconds) from the inside
back cover, and
Save
.
Default = 120 seconds.

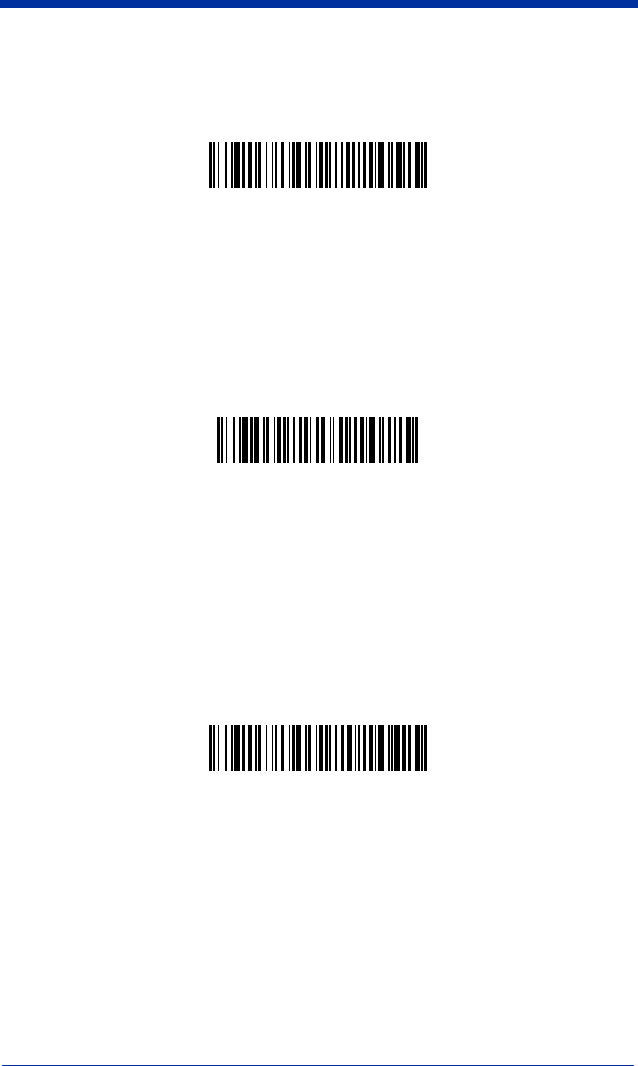

* Manual/Serial Trigger
Read Time-Out
Manual Trigger, Low Power
