Section 10 – Landing Gear Installation

Required Parts

• Fuselage • Landing gear fairing

• 10-32 x 1" socket head bolt (4)

• 10-32 nylon lock nut (4)

• #10 lock washer (4)

• 1/4-20 x 2” nylon bolt

Required Tools and Adhesives

• Hobby knife • 5/32" hex wrench

• Adjustable wrench (small)

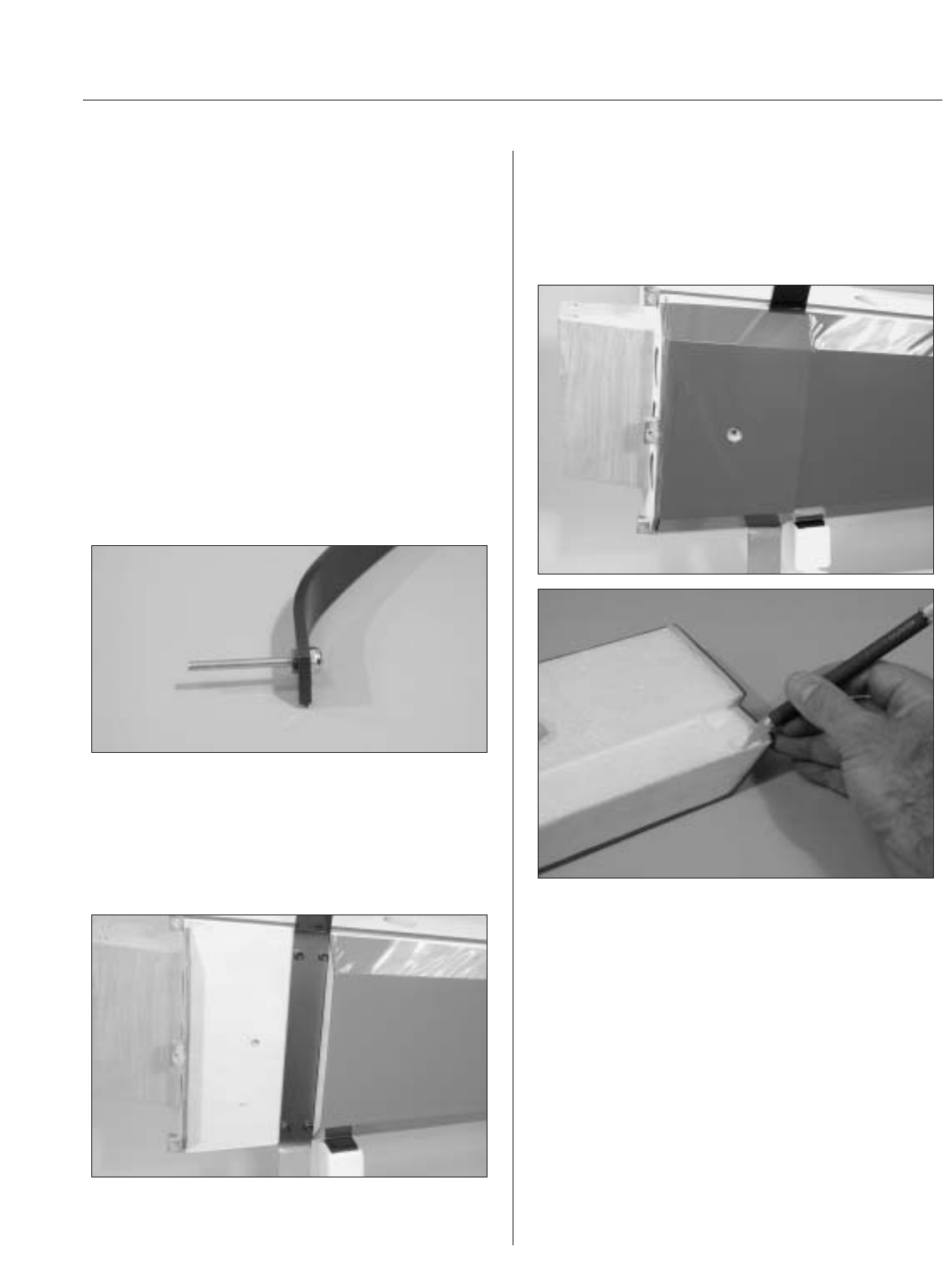

Step 1

Install the axles in the landing gear. Secure the

axles using an adjustable wrench and the nuts

provided with the axles.

Step 2

Install the landing gear using four 10-32 x 1" socket

head bolts, four #10 lock washers and four

10-32 nylon lock nuts. (The lock nuts are placed

inside the fuselage.)

Step 3

Press the landing gear fairing into position to transfer

the location of the bolt heads into the foam. Use a

hobby knife to remove the foam to provide clearance

for the heads of the bolts.

Step 4

Attach the landing gear fairing using a 1/4-20 x 2"

nylon bolt.
