Section 1 – Aileron Servo Installation
7

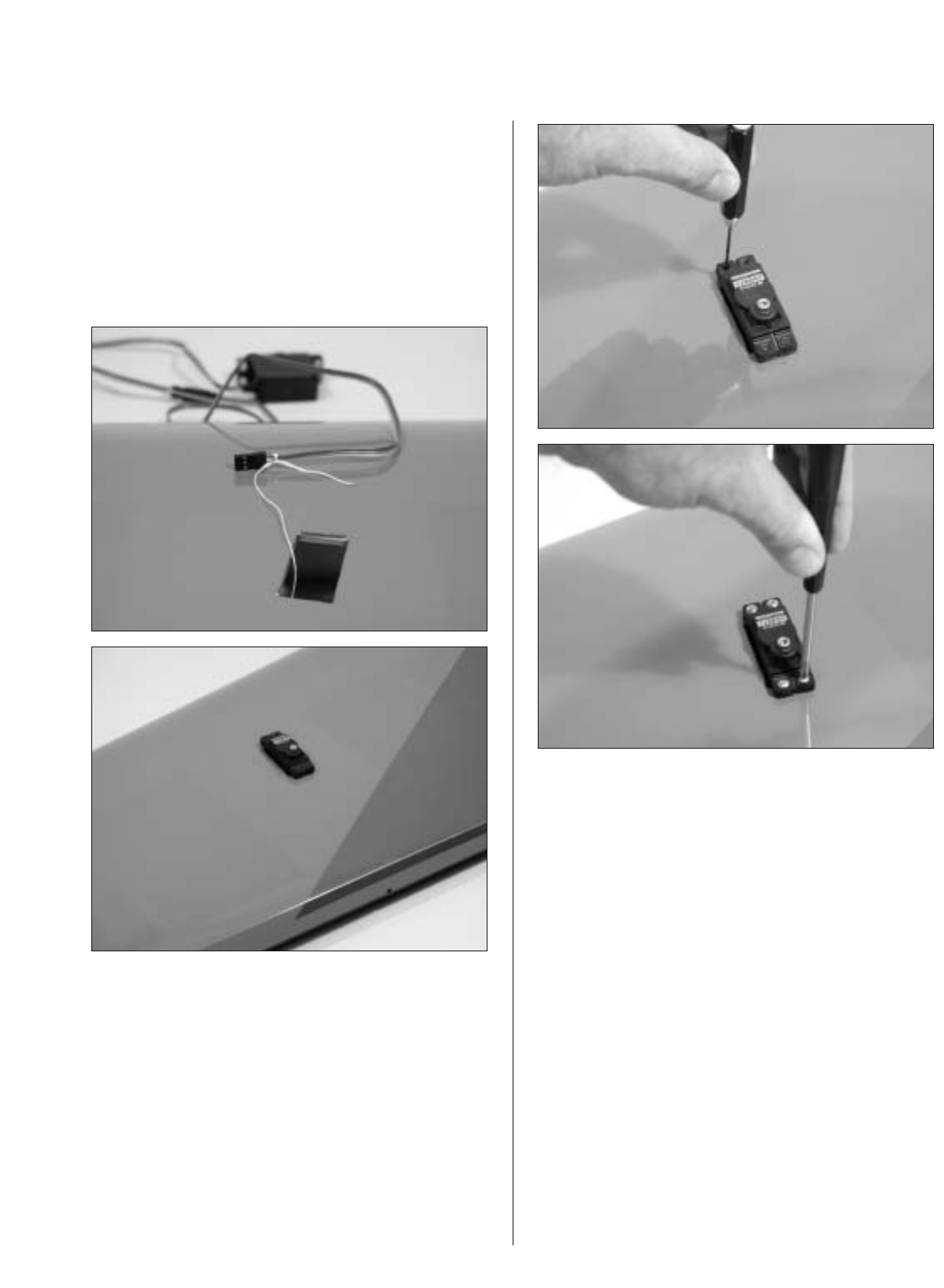

Step 4
Insert the servo with the 24" extension towards the
tip of the wing. Use the string to pull the servo lead
through the wing. Position the servo so the output
shaft is towards the trailing edge of the wing. Use
a 1/16” drill bit to drill the locations for the servo
screws. Mount the servos using the hardware
provided with the servos.
Step 5
Repeat Steps 3 and 4 for the servo near the root of
the wing panel.
Step 6
Repeat Steps 1 through 5 for the remaining
wing panel.
Photo for Step 4
Photo for Step 4
