Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustrations below as a guide for
7.1-channel and 5.1-channel systems.
To create the most realistic surround-sound environment possible, you should place
your speakers in a circle with the listening position at its center. You should angle each
speaker so it directly faces the listening position. Use the diagrams below as a guide.
TV
C
FL FR
SL SR
SUB

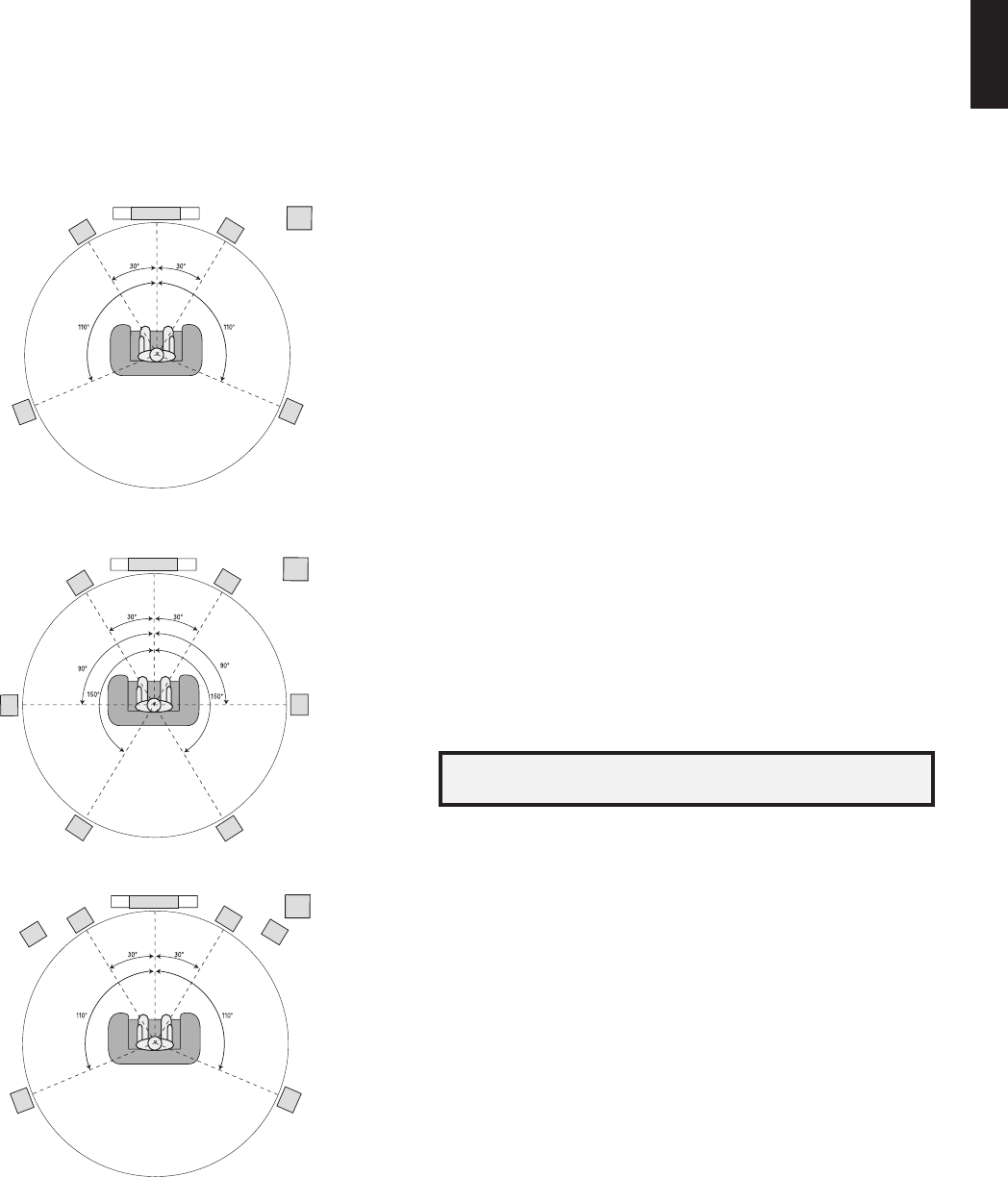

Speaker Positioning for 5.1-Channel Systems
Speaker Positioning for 7.1-Channel Systems
(Top: with Surround Back Speakers; Bottom: with Front Height Speakers)
SBL SBR
TV
C
FL FR
SL SR
SUB
* FHL and FHR speakers should be at least
3 ft (0.9m) above the FL and FR speakers.
FHL* FHR*
TV
C
FL FR
SL SR
SUB
NOTE: In a 7.1-channel system, you must choose to use either surround back speakers
or front height speakers – you cannot use both simultaneously.
Placing the Left, Center and Right Speakers
Place the center speaker either on top of, below or mounted on the wall above or below
the TV or video display screen. Place the front left and right speakers along the circle,
about 30 degrees from the center speaker and angled toward the listener.
Place the front left, front right and center speakers at the same height, preferably at
about the same height as the listener’s ears. The center speaker should be no more than
2 feet (0.6m) above or below the left/right speakers. If you’re using only two speakers
with your AVR, place them in the front left and right positions.
Placing the Surround Speakers in a 5.1-Channel System
You should place the left and right surround speakers approximately 110 degrees from
the center speaker, slightly behind and angled toward the listener. Alternatively, place
them behind the listener, with each surround speaker facing the opposite-side front
speaker. You should place the surround speakers 2 feet – 6 feet (0.6m – 1.8m) higher
than the listener’s ears.
Placing the Surround Speakers in a 7.1-Channel System
In a 7.1-channel system, place the side surround speakers 90 degrees from the center
speaker, directly to either side of the listening position. Place the surround back left and
right speakers 150 degrees from the center speaker, directly facing the opposite-side
front speaker. You should place all the surround speakers 2 feet – 6 feet (0.6m – 1.8m)
higher than the listener’s ears.
Placing Front Height Speakers in a 7.1-Channel System
Your AVR includes Dolby Pro Logic IIz decoding, which uses the AVR’s Assigned Amp
channels as front height channels. The addition of front height channels – an additional
pair of speakers positioned above the front left and right speakers – produces a surround-
sound experience with added depth and dimension by creating lifelike sound that comes
at you from varying heights.
We recommend placing front height speakers at least 3 feet (0.9m) higher than the front
left and front right speakers, and directly above or farther apart than the front left and
right speakers. The higher and further apart you place the front height speakers, the more
you should angle them down and in toward the listening position.
NOTE: Your receiver will sound its best when the same model or brand of loudspeaker
is used for all positions.
Placing the Subwoofer
Because a room’s shape and volume can have a dramatic effect on a subwoofer’s
performance, it is best to experiment with placement so that you will find the location
that produces the best results in your particular listening room. With that in mind, these
rules will help you get started:
Placing the subwoofer next to a wall generally will increase the amount of bass in the •
room.
Placing the subwoofer in a corner generally will maximize the amount of bass in the •
room.
In many rooms, placing the subwoofer along the same plane as the left and right •
speakers can produce the best integration between the sound of the subwoofer and
that of the left and right speakers.
In some rooms, the best performance could even result from placing the subwoofer •
behind the listening position.
A good way to determine the best location for the subwoofer is by temporarily placing it in
the listening position and playing music with strong bass content. Move around to various
locations in the room while the system is playing (putting your ears where the subwoofer
would be placed), and listen until you find the location where the bass performance is
best. Place the subwoofer in that location.
Place Your Speakers
