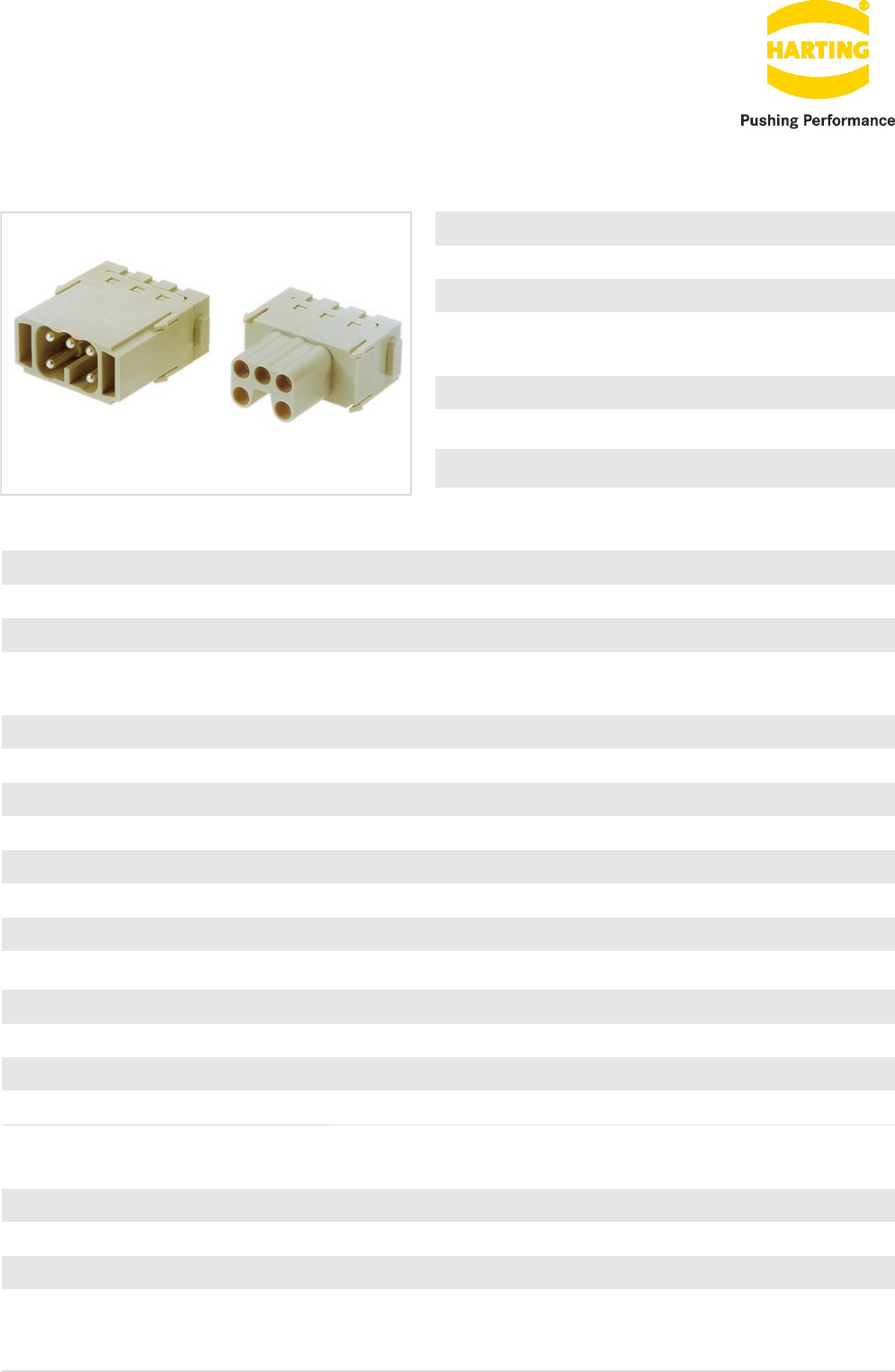

Han ES module, cage clamp male (AU)
Page1/2 | Creation date2018-08-31 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Electric GmbH & Co. KG | Wilhelm-Harting-Straße 1 | 32339 Espelkamp | Germany
Phone [phone] | [e-mail] | www.HARTING.com
Han ES module, cage clamp male (AU)
Part number 09 14 005 2617
Specification Han ES module, cage clamp male (AU)
HARTING eCatalogue https://b2b.harting.com/09140052617
Identification
Category Modules
Series
Han-Modular
®
Type of module
Han
®
ES module
Version
Termination method Cage-clamp termination
Gender Male
Number of contacts 5
Technical characteristics
Conductor cross-section 0.14...2.5 mm²
Electrical data acc. to IEC 61984 16 A400 V6 kV3
Rated current 16A
Rated voltage 400V
Rated impulse voltage 6kV
Pollution degree 3
Rated voltage acc. to UL 600V
Insulation resistance
≥10
10
Ω
Contact resistance ≤3mΩ
Limiting temperature -40 ... +125 °C
Stripping length 7 ... 9 mm
Mating cycles ≥500
Material properties
Material (insert) Polycarbonate
Colour (insert) RAL 7032 (pebble grey)
Material (contacts) Copper alloy
Surface (contacts) Gold plated
