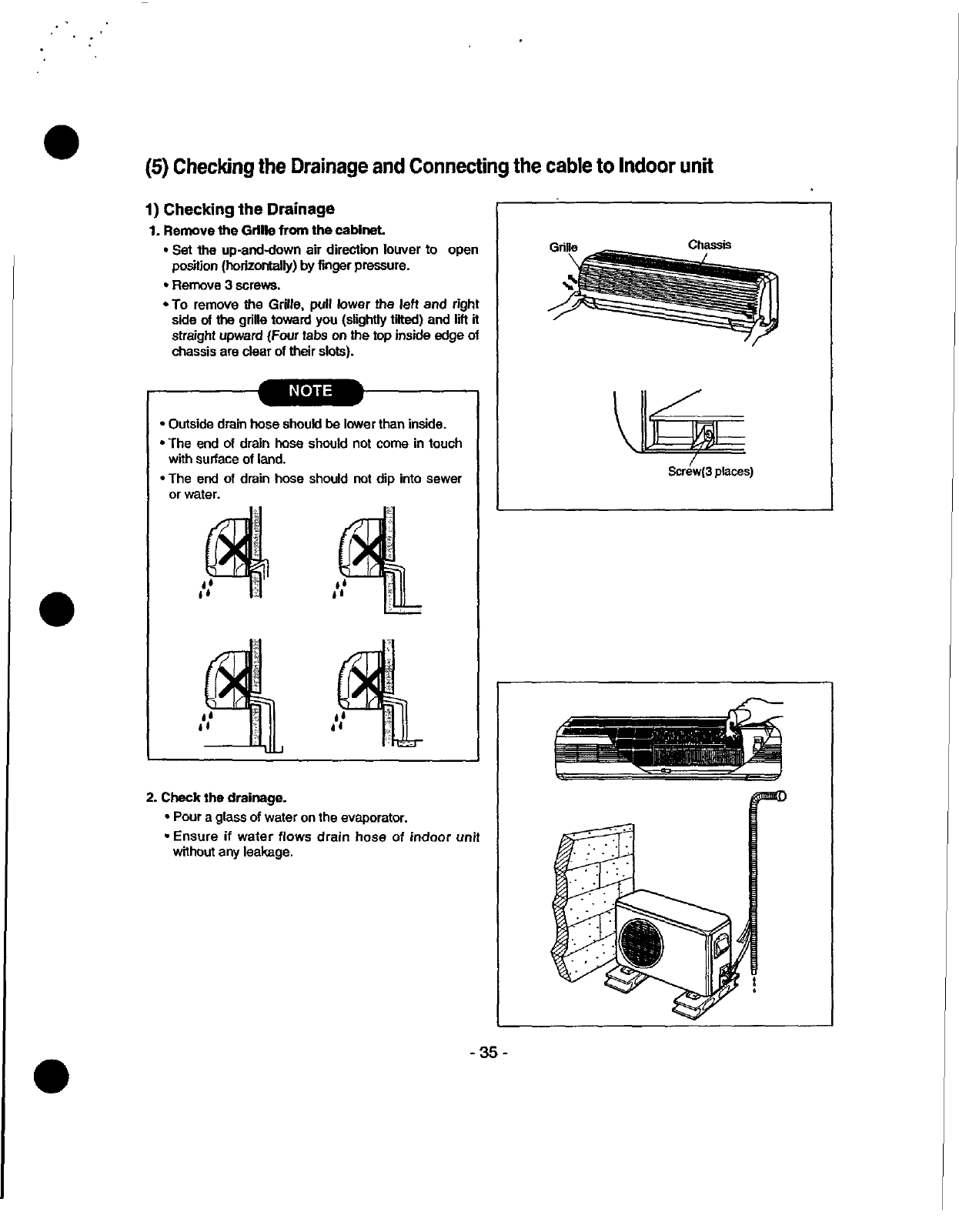

Checking
the
Drainage
and
Connecting the cable to
Indoor
unit
1) Checking
the Drainage
1. Remove the Grille
from
the
cabinet.
"
Set the up-and-down
air direction
louver to
open
position (horizontally) by
finger pressure.
" Remove 3
screws.
"
To remove the Grille,
pull
lower
the left and right
side
of
the grille toward you (slightly
tilted)
and
lift it
straight upward
(Four
tabs on
the
top inside
edge of
chassis are clear
of their slots).
"
Outside drain hose should
be
lower than inside.
" The end
of drain
hose should not come
in touch
with
surface of land.
" The end
of
drain hose should not
dip
into sewer
or water.
16
Y
I-
2.
Check the drainage.
" Pour
a glass of water
on the evaporator.
" Ensure
if
water flows
drain hose of indoor unit
without any leakage.
Grille
Chassis
j ""
Screw(3 places)
