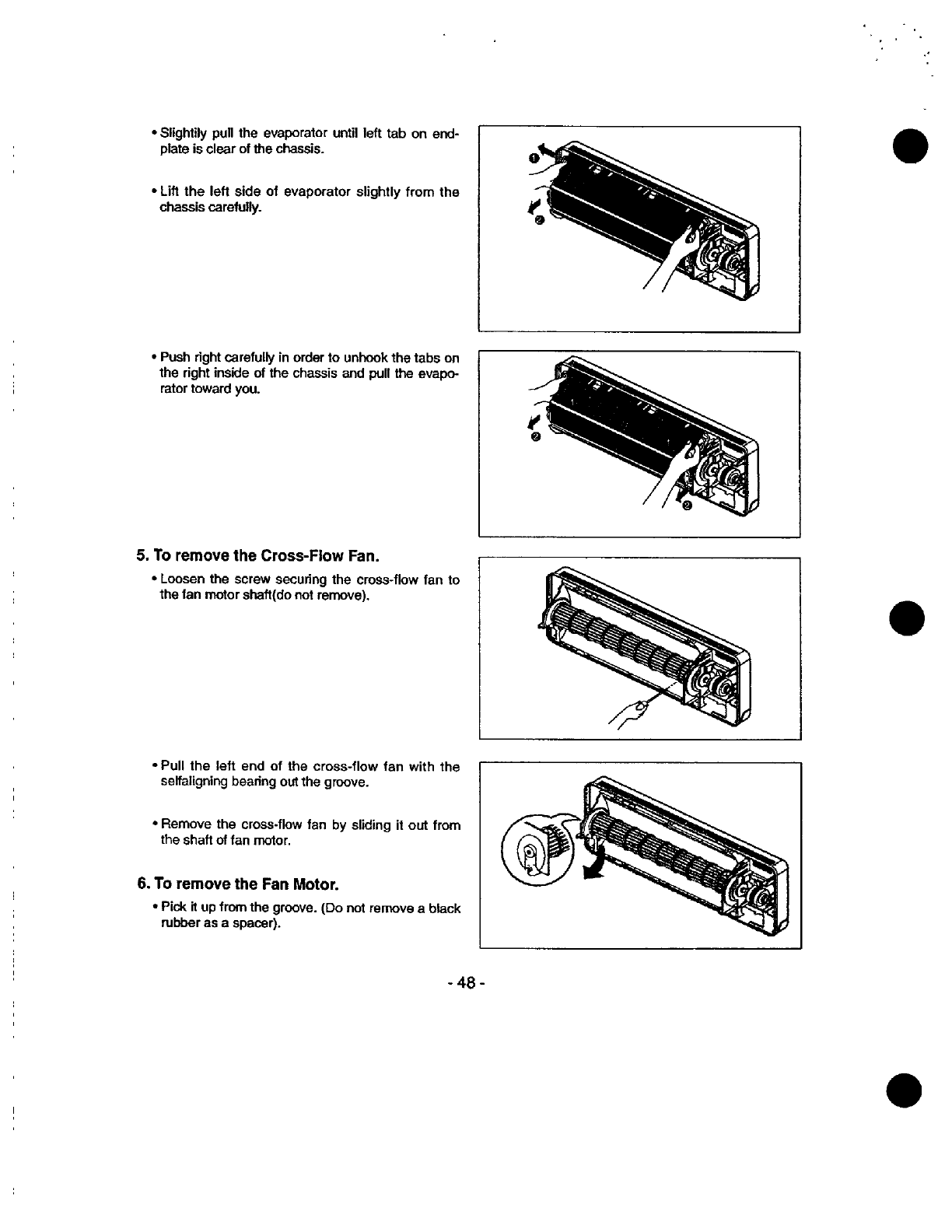

" Slightily pull the evaporator until left
tab
on end-
plate is clear of
the
chassis.
" Lift the left
side
of evaporator
slightly
from the
chassis carefully.
" Push
right carefully
in order to
unhook the tabs on
the
right inside of the
chassis and pull the
evapo-
rator toward
you.
5.
To
remove the Cross-Flow Fan.
" Loosen the screw
securing the
cross-flow fan to
the fan
motor
shaft(do
not
remove).
" Pull
the left
end
of
the cross-flow
fan with
the
selfaligning bearing
out the
groove.
"
Remove the
cross-flow fan
by
sliding it out from
the
shaft of
fan motor.
6. To
remove the
Fan Motor.
" Pick it
up
from
the
groove. (Do not
remove
a black
rubber as
a spacer).
O~
r
-48-
"
