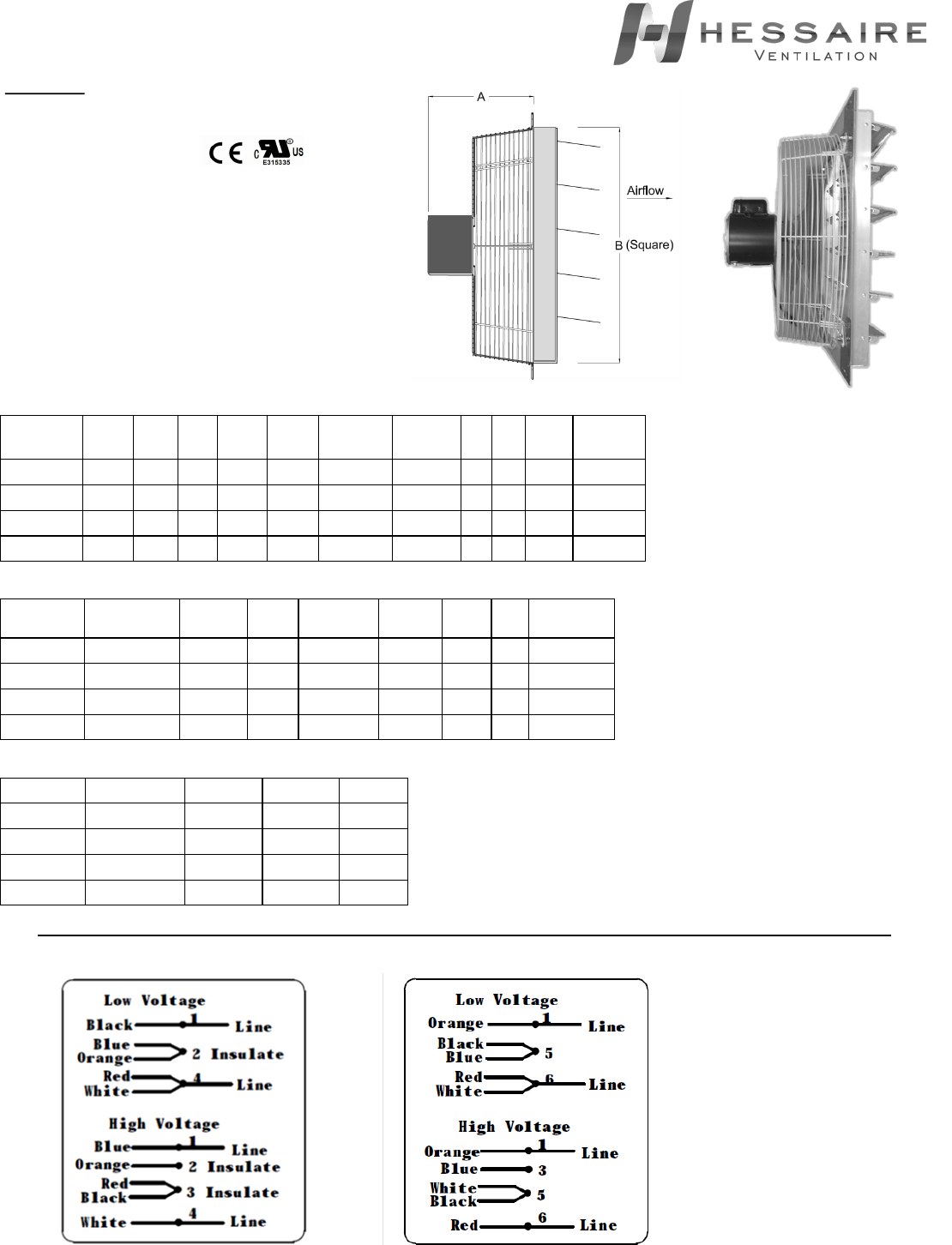

Specification

Part #: 12SF4V-N, 16SF4V-N, 20SF4V-N, 24SF4V-N
Descripon: Shuer style exhaust fans, variable Spd
Features:
Guards white powder coated
Motors
- TEAO(IP55 rang)
- Permanently sealed ball bearings
- Permanent split capacitor
- Class B insulaon
- Automac thermal overload protecon
- UL recognized in US & Canada
- Wired with 9 cord, 115v molded plug end
Shuers counterweighted to reduce pres-
Performance/Specs:
Shipping Info:
Model
#
Blade
Dia.
HP Spd
High
CFM
RPM Volts Amps Ph Hz
Sha
Dia.
Decibels
@ 7
12SF4V-N 11"
1/10
Var. 1200 1700 115/230 1.0/0.5 1 60 1/2 64
16SF4V-N 14"
1/10
Var. 1470 1700 115/230 1.0/0.5 1 60 1/2 69
20SF4V-N 18"
1/4
Var. 3050 1725 115/230 2.4/1.2 1 60 1/2 72
24SF4V-N 22" 1/3 Var. 4450 1725 115/230 3.5/1.7 1 60 1/2 73
Boxed
Dims
Boxed
Weight
Pallet
Qtys
Pallet
Dims
Pallet
Weight
Dim
A
Dim
B
Rough-In
Opening
Model
#
16x16x15 17 45 48x48x85 805 10.75 12 12.5x12.5 12SF4V-N
21x21x15 20 20 48x48x82 440 10.75 16 16.5x16.5 16SF4V-N
24x24x15 28 20 48x48x84 600 10.75 20 20.5x20.5 20SF4V-N
28x28x17 37 20 60x60x93 740 11.5 24 24.5x24.5 24SF4V-N
Model #
Motor Prop Guard Shuer
12SF4V-N B075-4CNY 9001497 G12SF37 SA12SF
16SF4V-N B075-4CNY 9001496 G16SF37 SA16SF
20SF4V-N B180-4CNY 9001467 G20SF37 SA20SF
24SF4V-N B250-4C 9001460 G24SF48 SA24SF
Replacement Parts:
B075-4CNY/B180-4CNY Wiring Diagram
B250-4C Wiring Diagram
