Title:

How to use N+1 hot spare in NVR

Version:

v1.0

Date:

12/18/2018

Product:

NVR

Page:

No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788

E-Mail: support@hikvision.com • www.hikvision.com

How to rebuild RAID5 when degraded

Description

Hikvision NVR supports RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, and RAID 5 is the most

frequently-used type.

As for RAID 5, if one HDD is broken, the RAID5 will be in degraded mode, and we can rebuild

RAID5 to recover data. If there are two HDDs broken, the RAID5 will be offline.

Note: RAID function is now supported by DS-9600NI-I series and DS-96000NI-I series NVR.

Preparation

NVR, Four HDDs at least

1) If Global Hot Spare HDD is set before:

Steps:

1. The degraded RAID 5 will rebuild automatically.

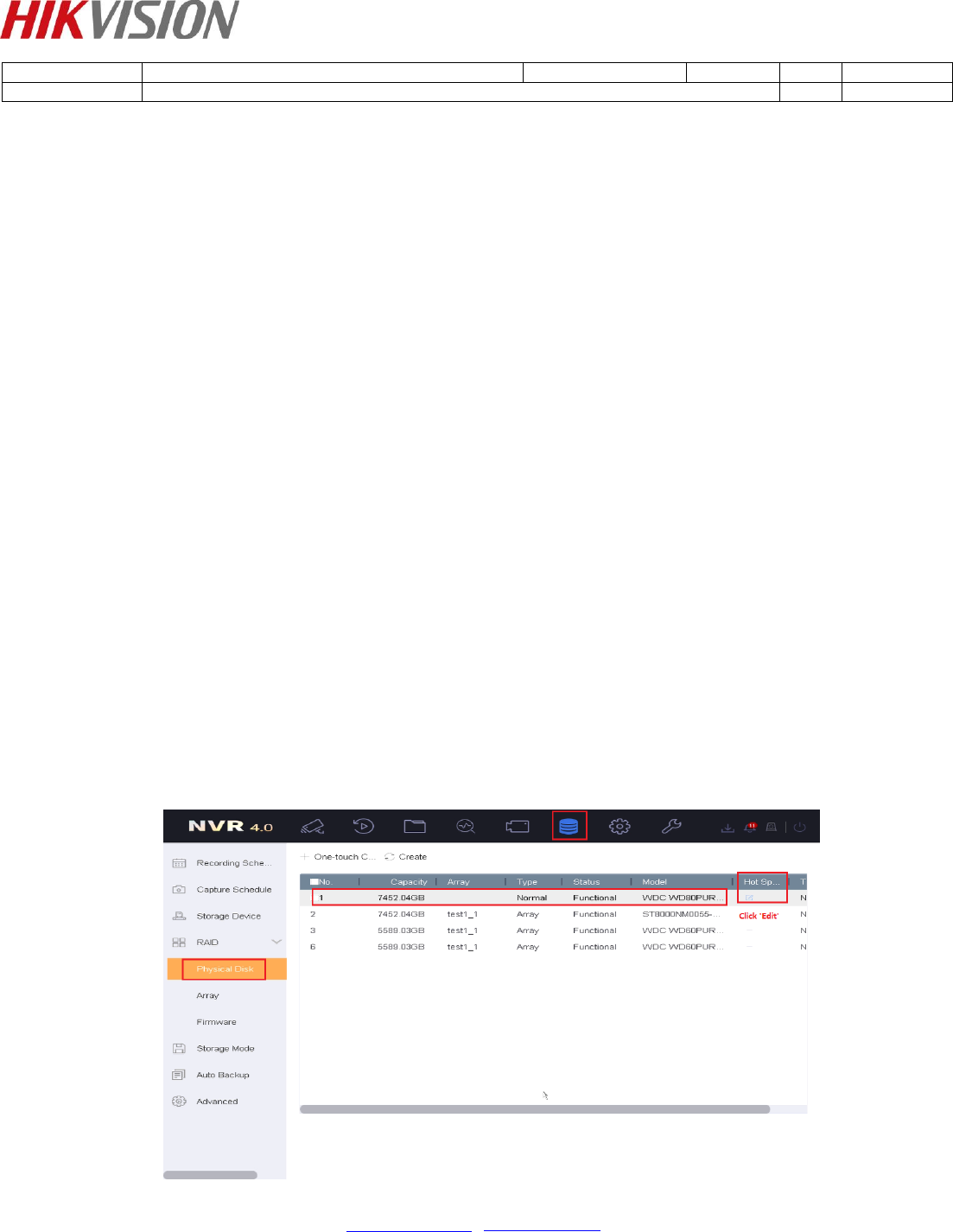

2. Then, user should replace the broken HDD with a new one, and plug it into HDD cabinet. Set its type as

Global Hot Spare in Storage→RAID→Physic Disk. Just in case that another HDDs will be broken.
