PLOW ASSEMBLY

Pivot Bar/Trip Spring/Moldboard Assembly/Plow Markers

Parts Needed: F, K, M, S

12.

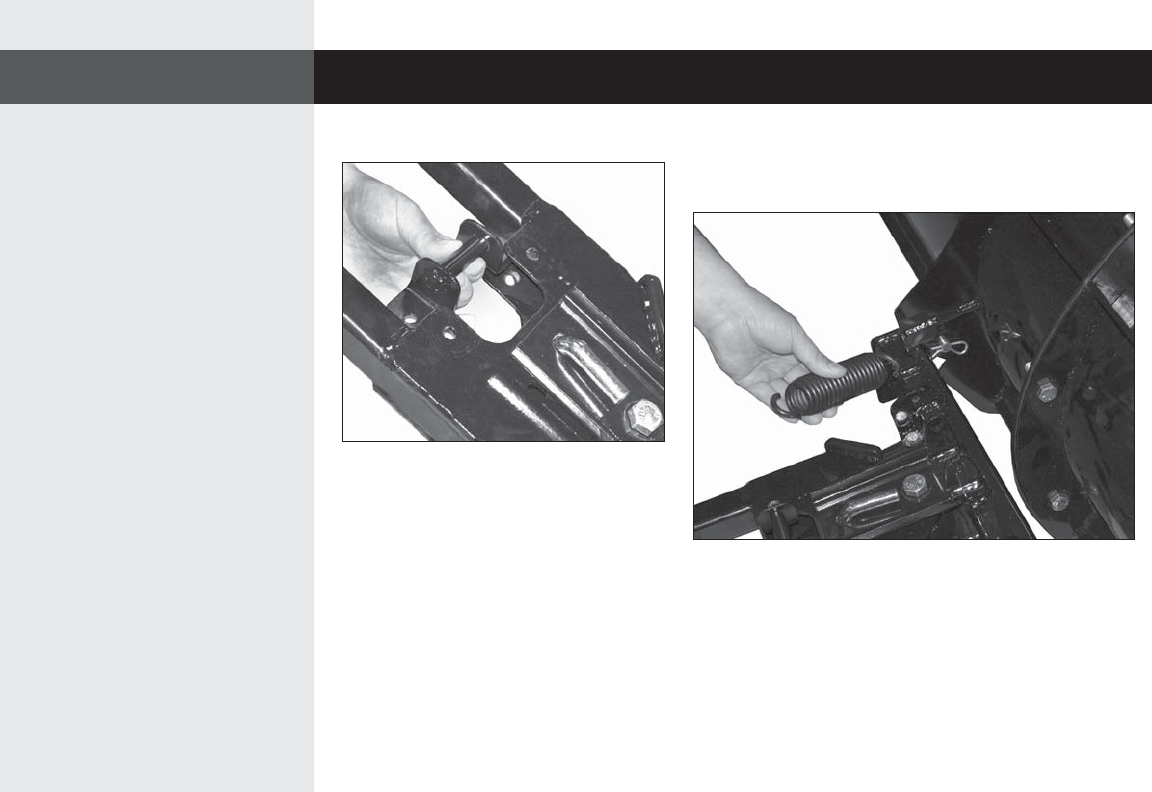

Align manual latch (K) under

top plate of A-frame as shown.

Attach latch by inserting two

3/8-16 x 1" and 3/8" Locknuts.

Tighten fasteners using a 9/16"

box wrench and a 9/16"

ratchet wrench.

13.

Attach four trip springs to pivot bar as shown.
