Installation Guide

20 21 21
Electric Lift Assembly (Models 23200/23250)
Parts Needed:L, Q, S, T, U
PLOW ASSEMBLY

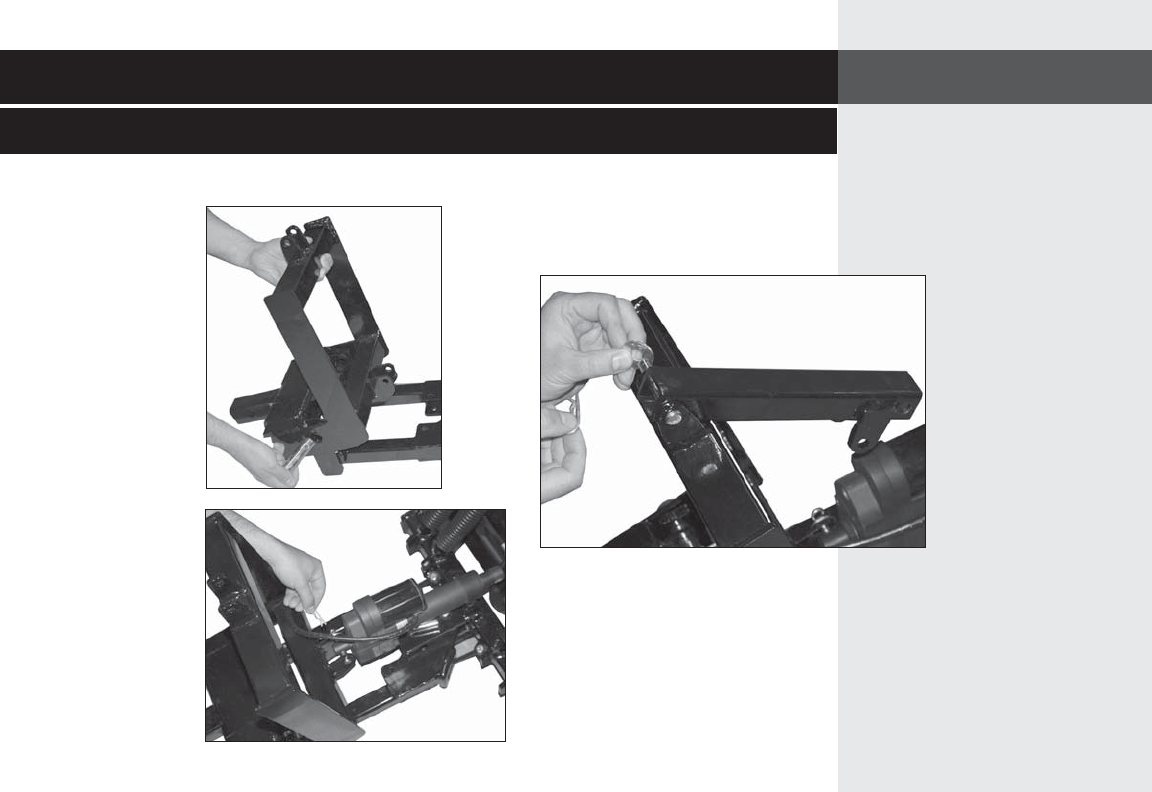

24.
Align lift frame (L) and
insert two 1 x 3" pins.
Insert two cotter ¼ x 2"
cotter pins and bend ends
to lock into place.
25.
Attach linear actuator (U)
to lift frame using ½ x 3"
pin, ½ at washer and
1/8" hair pin cotter.
26.
Attach lift arm (Q) to lift frame (L) using ½ x 3'
pin, ½" atwasher and 1/8" hair pin cotter.
If you have an electric lift plow (Models 23200/23250) continue here from step 11.
