Optical drive
NOTE: Optical drive spare part kits include bracket and bezel.
Description Spare part number
DVD+/-RW Double-Layer SuperMulti Drive for use in all models 858505-001
DVD+/-RW Double-Layer SuperMulti Drive for use in HP 250/256 G5 Notebook PC models 908491-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 48).

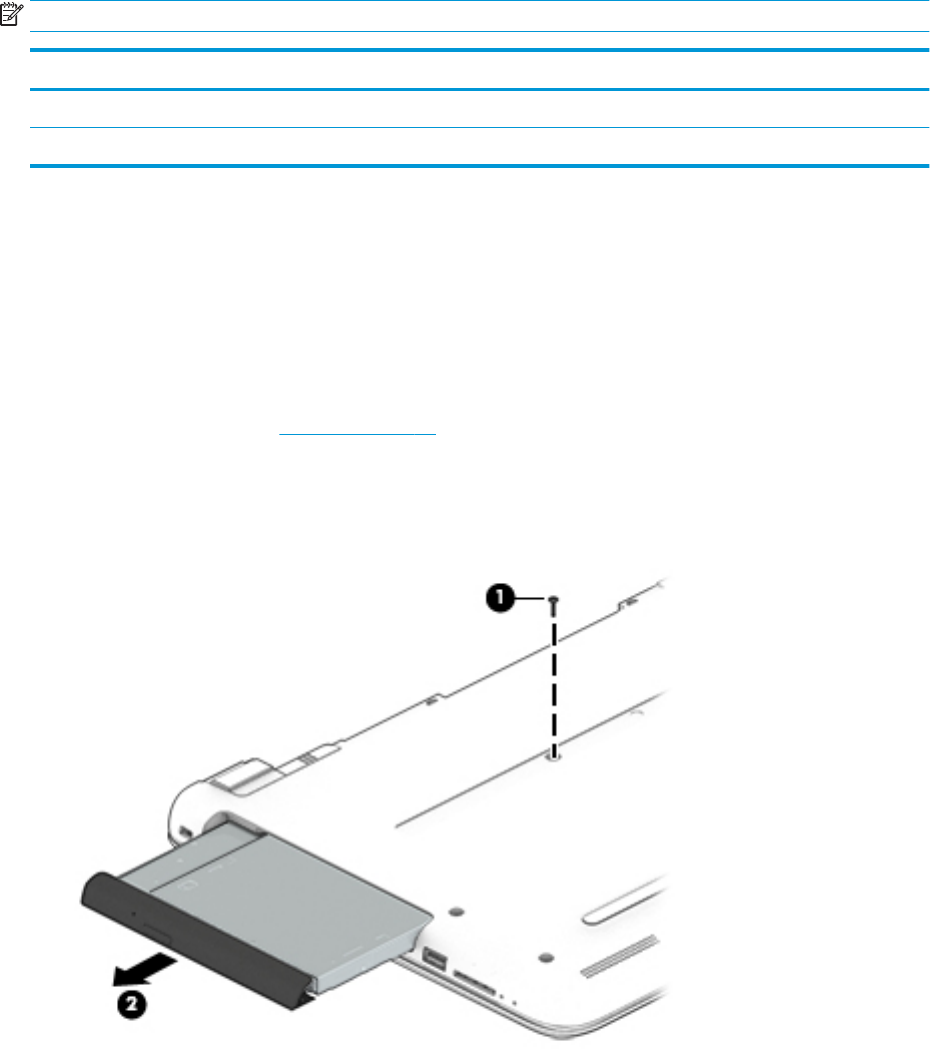

To remove the optical drive:
1. Remove the Phillips PM2.5×8.0 screw (1) that secures the optical drive to the computer.
2. Remove the optical drive (2) by sliding it out of the optical drive bay.
Component replacement procedures 49
