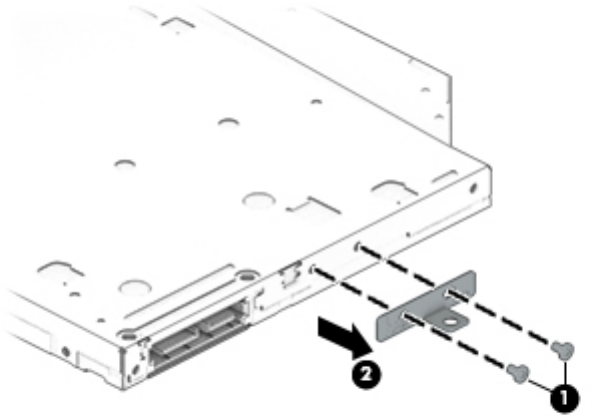

3. If it is necessary to replace the bracket on the rear of the optical drive, remove the two Phillips
PM2.0×2.5 screws (1) that secure the bracket to the drive, and then remove the bracket (2).
Reverse this procedure to reassemble and install the optical drive.
