Optical drive board
Description Spare part number
Optical drive board (includes cable) 855007-001
Before removing the optical drive board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 48).
5. Remove the optical drive (see Optical drive on page 49), if installed.
6. Remove the bottom cover (see Bottom cover on page 52).

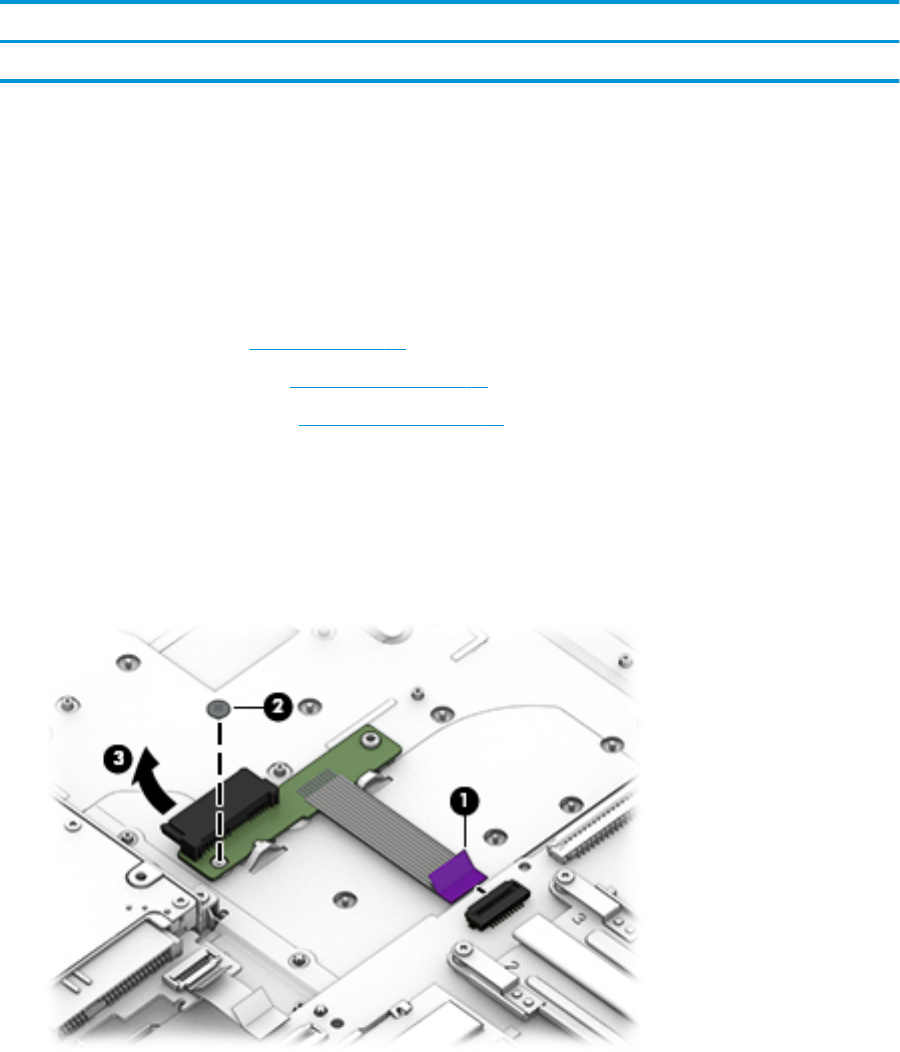

To remove the optical drive board:
1. Disconnect the cable from the system board (1).
2. Remove the Phillips PM2.0×2.4 screw (2) that secures the optical drive board to the computer.
3. Rotate the connector side of the board upward, and then pull the board and cable up and out of the
computer (3).
Reverse this procedure to install the optical drive board and cable.
58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
