HP Notebook PC (Intel) * Models: 15-ay000 - 15-ay099 HP 250 G5 Notebook PC HP 256 G5 Notebook PC - Maintenance and Service Guide

Solid-state drive board
Description Spare part number
Solid-state drive board (includes cable) 850946-001
Before removing the solid-state drive board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 48).
5. Remove the optical drive (see Optical drive on page 49), if installed.
6. Remove the bottom cover (see Bottom cover on page 52).

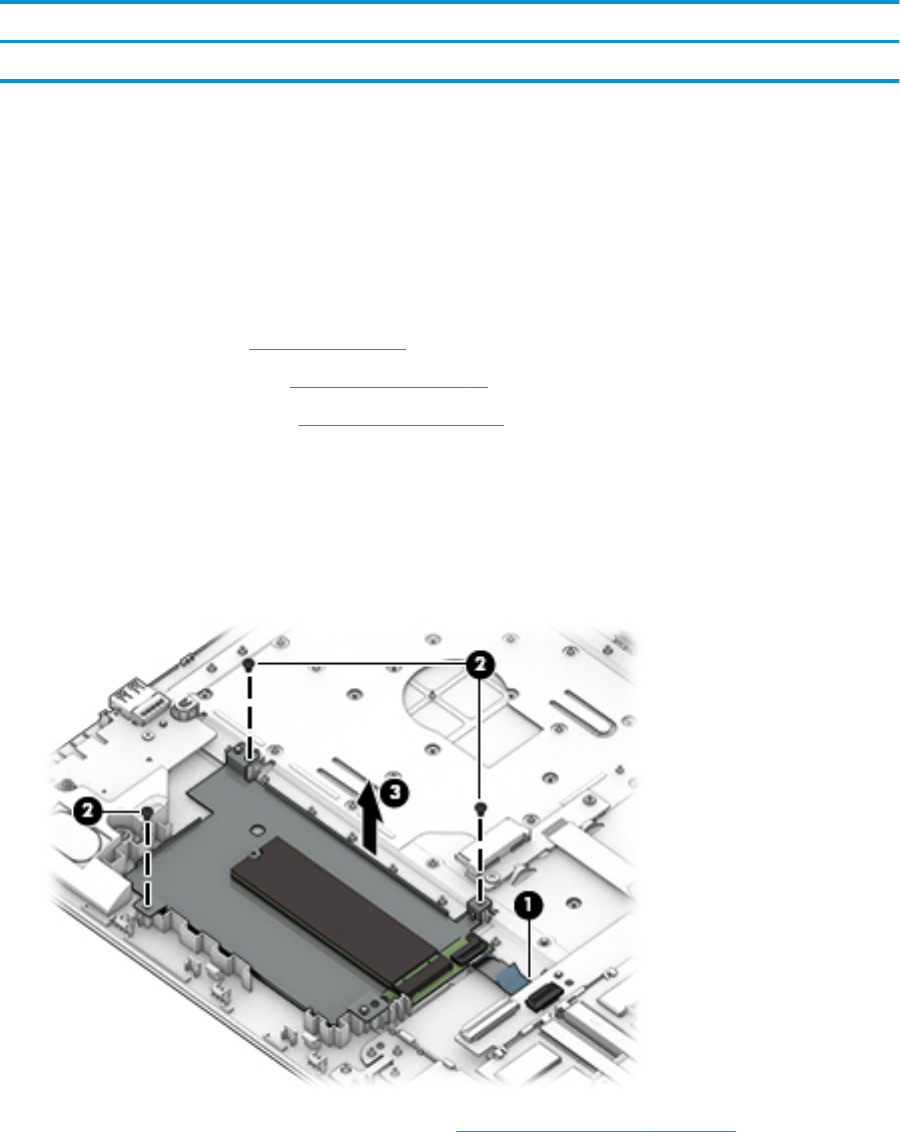

To remove the solid-state drive board:
1. Disconnect the cable from the system board (1).
2. Remove the three Phillips PM2.0×3.0 screws (2) that secure the solid-state drive board and holder to the
computer.
3. Lift the board out of the computer (3).
4. Remove the solid-state drive from the holder (see Solid-state drive (SSD) on page 65).
Reverse this procedure to install the solid-state drive board and cable.
66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
