Description Spare part number
Silver models 905913-001
Hinges (left and right) 855006-001
Webcam/microphone module for use in HP Notebook PC models:
HD 709372-030
VGA 766523-019
Webcam/microphone for use in HP Notebook PC and HP 250/256 G5 Notebook PC models:
HD 861336-001
VGA 861337-001
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 48).
5. Remove the optical drive (see Optical drive on page 49), if installed.
6. Remove the bottom cover (see Bottom cover on page 52).
7. Remove the fan (see Fan on page 70).
To remove the display assembly:

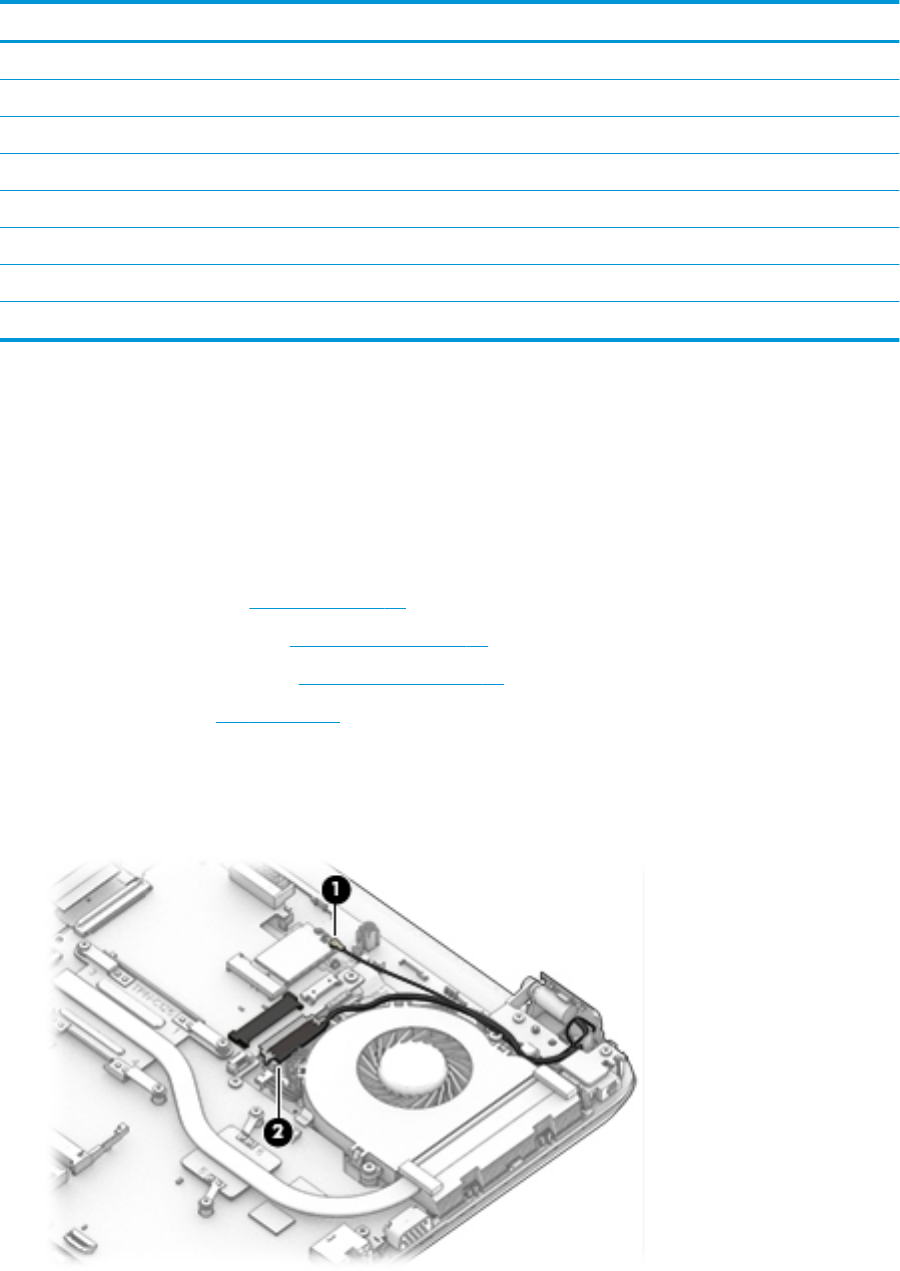

1. Disconnect the wireless antennas from the WLAN module (1).
2. Disconnect the display panel cable from the system board (2).
3. Position the computer with the display open and hanging down o the side of a table.
78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
