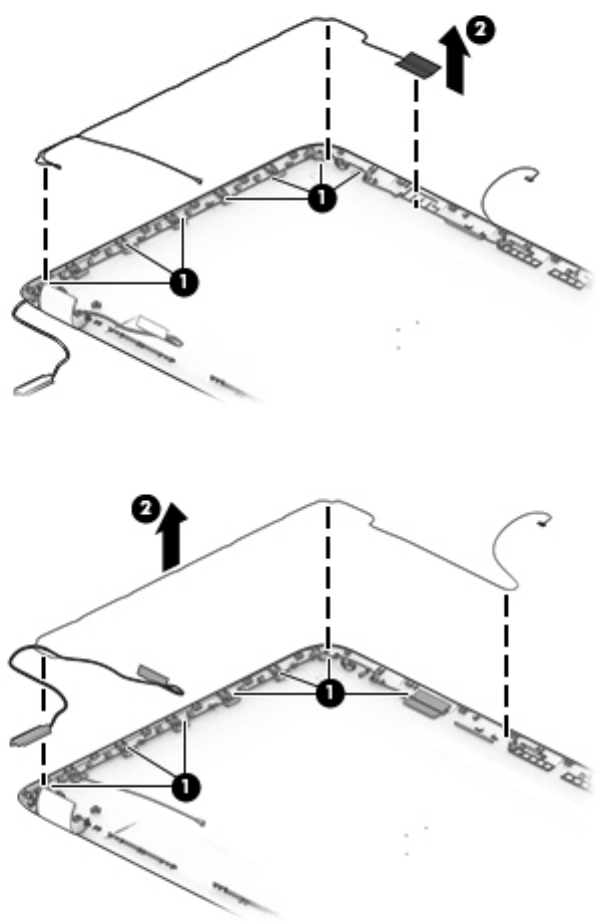

5. To remove the wireless antenna cables and transceivers, release the wireless antenna cables from the
clips built into the display enclosure (1), and then remove the cables (2).
6. To remove the display/webcam cable, remove the cable from the clips built into the display enclosure
(1), and then remove the cable from the display enclosure (2).
7. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
82 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
