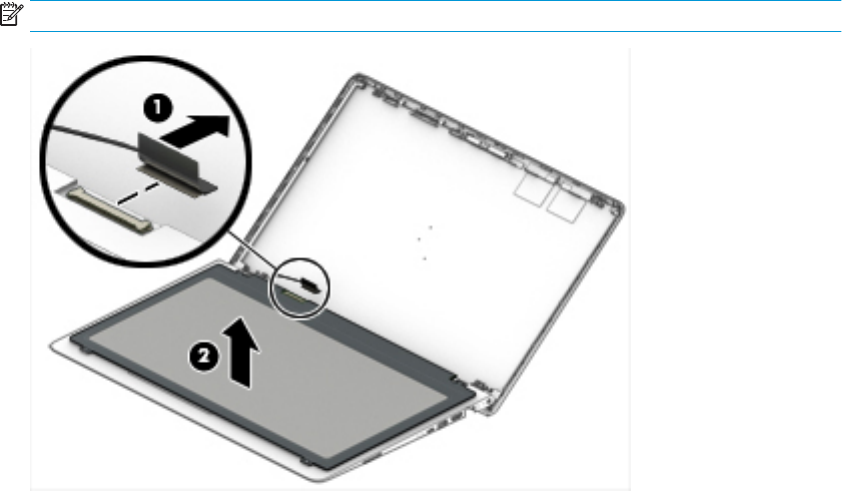

c. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel, and then disconnect the cable (1).
d. Remove the display panel from the computer (2).
NOTE: The display will not be connected to the computer as shown in the following image.
5. To remove the display hinges:
a. Remove the three Phillips broad head PM2.5×2.5 screws (1) and the Phillips PM2.5×3.0 screw (2)
that secure each hinge to the display enclosure.
62 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
