c. Lift the fan out of the case (3).
To replace the PCI fan, reverse the removal procedures.
Installing a system board
The system board is secured to a system board tray. You must remove the tray before you can remove or
install a system board.
1. Prepare the computer for disassembly (Preparing for disassembly on page 8).
2. Remove the access panel (Removing and replacing the access panel on page 18).

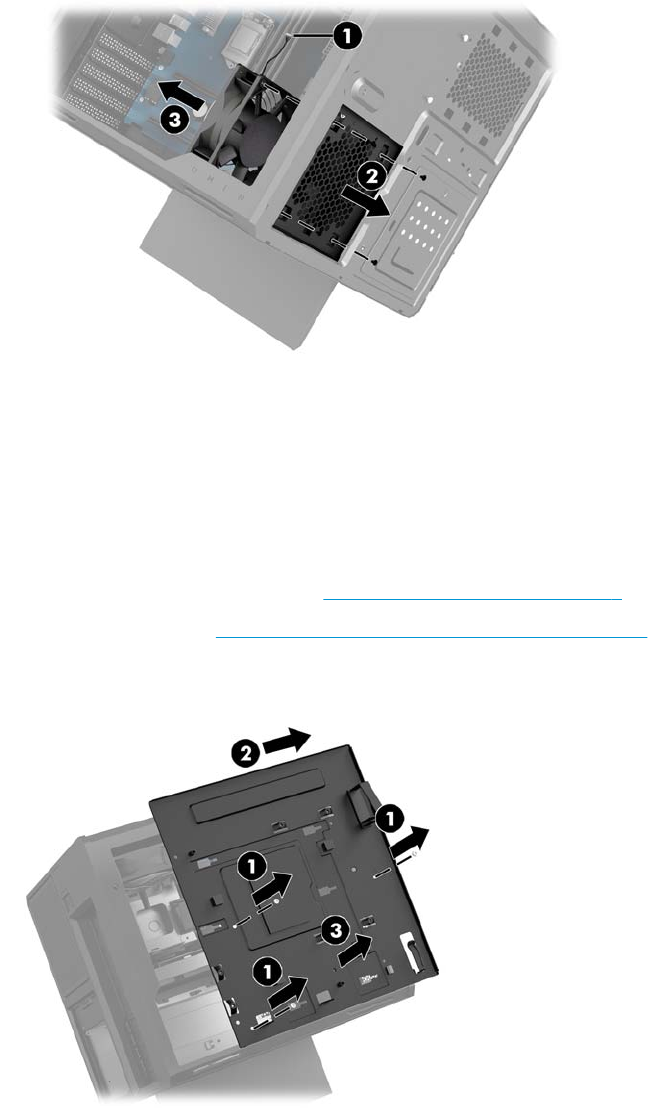

3. To remove the system board tray, remove the three screws that secure the tray to the case (1), slide the
tray to the right (2), and then lift the tray out of the case (3).
Installing a system board 25
