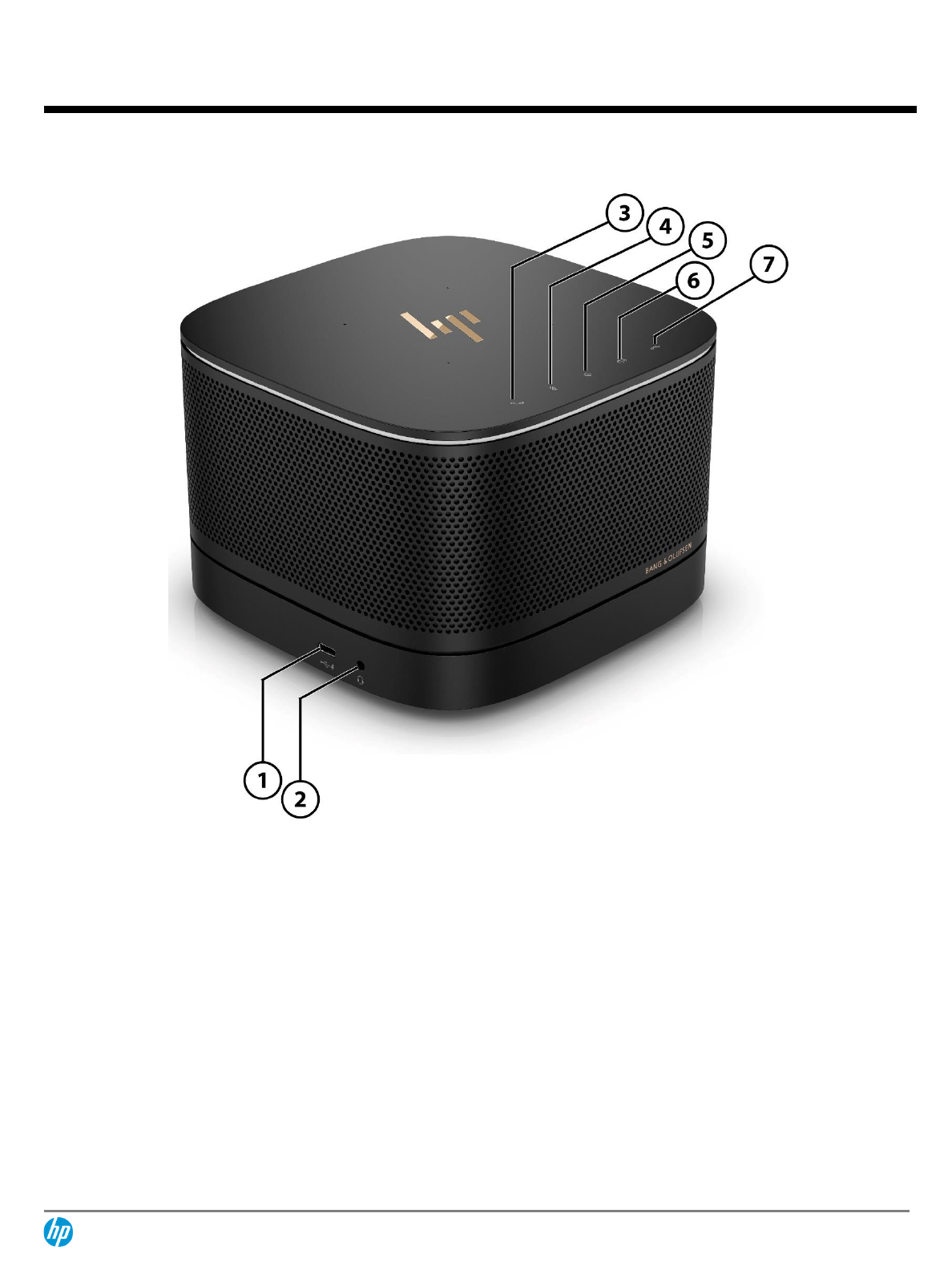

QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications HP Elite Slice for Meeting Rooms G2 for Skype Room Systems 1. 2. 3. 4. Side Ports/Collaboration buttons USB Type-C™ 3.1 Gen 1 USB port 5. Volume down Audio-out (headphone)/audio-in (microphone) 6. Volume up Call 7. Hang up Mute Not all configuration components are available in all regions/countries.
QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Back Connectors 1. 2. 3. 4. Power button Power connector RJ-45 (network) jack USB Type-C™ 3.1 Gen 1 USB port (60 W input, DisplayPort™ Alternate Mode) 5. 6. 7. 8. 2 USB Type A 3.1 Gen 1 ports Dual-Mode DisplayPort™ (DP++) HDMI port UltraSlim cable lock slot Not all configuration components are available in all regions/countries.
QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications At A Glance • • • • • • • o o • • • • • • • • • • • • • • • Designed for rooms of all sizes with 3rd party AV accessories Modular system from the base that enhances the interactive experience through unique technology New HP Audio Module with capacitive touch Skype for Business keys (comes with HP Elite Slice for Meeting Rooms G2) for Call or Answer/ Mute/Volume Up/ Volume Down/ Hang up/End or Reject support Th
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications OPERATING SYSTEMS AND TOPOLOGY REQUIREMENTS Preinstalled Windows 10 IoT 64 Enterprise CBB1 1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications PROCESSOR Intel® Core™ i52,3 Intel® Core™ i5-7500T vProTM Processor 35W Up to 3.3 GHz Max. Turbo Frequency (2.7 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel® HD Graphics 630 Supports DDR4 memory up to 2400 MT/s data rate Supports Intel® vProTM Technology and Intel® Stable Image Platform Program (SIPP) Intel® Core™ i5-7400T non vProTM Processor 65 W Up to 3 GHz Max. Turbo Frequency (2.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications MEMORY Both slots are customer accessible / upgradeable, Supports Dual Channel Memory Type Maximum DDR4-2400 (Transfer rates up to 2400 MT/s) 32 GB capacity # of Slots 2 DIMM Configurations 8 GB DDR4-2400 SODIMM (2x4GB) (Dual Channel)20 20. 8 GB DDR4-2400 SDRAM: up to 32 GB thru option kit(s). STORAGE / DRIVES Solid State Drives M.2 NVMe5 256 GB PCIe NVMe M.2 Solid State Drive 128 GB PCIe NVMe M.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications AUDIO / MULTIMEDIA Conexant CX7501 1x Universal audio jack Four speakers with dual passive radiator stereo sound system HP Audio Module 2.0 Four Digital Microphones KEYBOARDS AND POINTING DEVICES Keyboards7 HP Business Slim USB Keyboard (China Only) HP Business Slim USB Keyboard Mice7 HP USB Optical Mouse HP Mouse Pad HP USB Mouse (China only) 7. Keyboards and mice are sold separately or as an optional feature.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications SLOTS Integrated 1 M.2 2230 PCIe for WLAN 1 M.2 2280 PCIe for NVMe SSD MODULES Included HP Cable and Port cover HP Center of Room Control8,9 HP Video Ingest Module Optional VESA Mount10 Wireless Display Module 8. Dimensions: Width (X) 301.75mm or 11.88 in; Height(Y) 219.75mm or 8.65 in; Depth (Z) 80.8mm or 3.17 in; Weight: 1040 grams or 2.3 lbs 9. 31.2 cm (12.3") diagonal FHD LCD touch screen (1920 x 1280) 10.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications SECURITY MANAGEMENT Active Health (black box flight recorder) Infineon TPM SLB9670 1.2/2.0 (Common Criteria EAL4+ certified) HP Dual Head Keyed Cable Lock Kit HP Sure Start 3.0* *NOTE: Available on HP Elite products equipped with Intel® 7th generation processors. POWER SUPPLY 90W AC adapter13 Up to 85% efficient 13. All power supplies are not available in every region.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications HP VIDEO INGEST MODULE Functionality • • • • • 1080 Resolution support 60Hz refresh 1 x HDMI 1.
QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications PORT COVER Functionality • • • • • Tamper-proofing of cables from the back of Slice Extends Power, 2 USB Type-A, RJ45, DisplayPort, and HDMI cables for connections under the table Clean single condensed cable for single group of cables extended from Slice Separate Type-C cable for easy movement of Center Of Room Control display on the table Cover to hide back connections to Slice WIRELESS DISPLAY MODULE Spec
QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications SERVICE AND SUPPORT On-site Warranty: Protected by an HP standard three-year (3-3-3) or one-year (1-1-1) limited warranty (varies by region). Certain restrictions and exclusions apply. Limited warranty delivers next business day service for parts and labor and includes Complimentary Limited Technical Support. One-year onsite and labor are not available in all countries.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications HIGH DEFINITION AUDIO Audio by Bang & Olufsen Type Four speakers with dual passive radiator stereo sound system HD Stereo Codec 1x Universal audio jack (w/ re-tasking) Audio I/O Ports High Definition Audio Internal Speaker Amplifier TI TAS5754M Sampling Conexant CX7501 Analog Audio 1x Universal audio Jack # of Channels Yes – Uses OS soft wavetable Internal Speaker Yes – four speakers DAC Sampling
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications GRAPHICS Intel® HD Graphics 630 (integrated) DisplayPort™ 1.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications Supported Display Resolutions and Refresh Rates Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. For All in One platforms, resolutions higher than the integrated panel resolution are not supported on the integrated panel. DisplayPort™ 1.2 HDMI Refresh Rate 640 x 480 60, 75, 85 X X X VESA DMT, CVT 0.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications 3840 x 2160 60 X X CVT-RBv1/v2 (8.29M9-R), SMPTE 274M 4096 x 2160 24 X X CVT-RBv1/v2 (8.85M-R), SMPTE 274M 4096 x 2160 25 X X CVT-RBv1/v2 (8.85M-R), SMPTE 274M 4096 x 2160 30 X X CVT-RBv1/v2 (8.85M-R), SMPTE 274M 4096 x 2160 50 X X CVT-RBv1/v2 (8.85M-R), SMPTE 274M 4096 x 2160 60 X X CVT-RBv1/v2 (8.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications STORAGE 128GB SATA 2.5" (Non-SED) Solid State Drive Unformatted Capacity 256 GB Architecture TLC NAND Flash Interface SATA 3.2 (6.0 Gb/s) Form Factor 2.5 inch Dimensions (W x D x H) 6.98 x 10.05 x 0.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications 128 GB M.2 2280 PCIe NVMe SSD Drive Weight Capacity Height Length Width Interface Performance Maximum Sequential Read Maximum Sequential Write Logical Blocks Operating Temperature Features < 10g 128GB 2.38mm 80mm 22mm PCIE Gen3 Up to Random Read/Write = 60K/50K IOPS Up to 1400MB/s Up to 395MB/s 250,069,680 0° to 70°C (32° to 158°F) [ambient temp] APST; ASPM L1.2; NVME spec 1.
QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications NETWORKING Intel 8260 802.11a/b/g/n/ac (2x2) WiFi and Bluetooth® 4.2 Combo vPro Wireless LAN Standards IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac Interoperability Wi-Fi certified Frequency Band 802.11b/g/n • 2.402 – 2.482 GHz 802.11a/n • 4.9 – 4.95 GHz (Japan) • 5.15 – 5.25 GHz • 5.25 – 5.35 GHz • 5.47 – 5.725 GHz • 5.825 – 5.850 GHz Data Rates • 802.11b: 1, 2, 5.5, 11 Mbps • 802.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications Power Management ACPI and PCI Express compliant power management 802.11 compliant power saving mode Receiver Sensitivity3 802.11b, 1Mbps : -93.5dBm maximum 802.11b, 11Mbps : -84dBm maximum 802.11a/g, 6Mbps : -86dBm maximum 802.11a/g, 54Mbps : -72dBm maximum 802.11n, MCS07 : -67dBm maximum 802.11n, MCS15 : -64dBm maximum 802.11ac, MCS0 : -84dBm maximum 802.
QuickSpecs HP Elite Slice for Meeting Rooms G2 for Skype Room Systems Technical Specifications LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications INPUT / OUTPUT DEVICES HP USB Business Slim USB Keyboard Physical characteristics Keys 104, 105, 106, 107, 109 layout (depending upon country) Dimensions (L x W x H) 171.97 x 68.35 x 8.27 in (436.8± 1.5 x 137.6± 1.0 x 21.0± 1.0 cm) Weight 1.32 lb (0.6± 0.08 kg) Operating voltage + 4.4 – 5.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Technical Specifications Operating shock 40 g, six surfaces Non-operating shock 80 g, six surfaces Operating vibration 2-g peak acceleration Non-operating vibration 4-g peak acceleration Drop (out of box) 26 in (66 cm) on carpet, six-drop sequence Drop (in box) 30 in (76.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs After Market Options Memory Part Number HP 4GB DDR4-2400 SODIMM Z9H55AA HP 8GB DDR4-2400 SODIMM Z9H56AA HP 16GB DDR4-2400 SODIMM Z9H53AA HP 16GB DDR4-2666 SODIMM 3TK84AA HP 4GB DDR4-2666 SODIMM 3TK86AA HP 8GB DDR4-2666 SODIMM 3TK88AA Storage HP 256GB SATA TLC Non-SED Solid State Drive P1N68AA HP PCIe NVME TLC 256GB SSD M.
HP Elite Slice for Meeting Rooms G2 for Skype Room Systems QuickSpecs Summary of Changes Date of change: June 21, 2018 October 2, 2018 November 9, 2018 January 16, 2018 Version History: V1 to V2 V2 to V3 V3 to V4 V4 to V5 Update Update Update Update Description of change: Typology requirements added to Operating system section Wireless display module added General re-arrangement Audio codec corrected © Copyright 2019 HP Development Company, L.P. All rights reserved.
