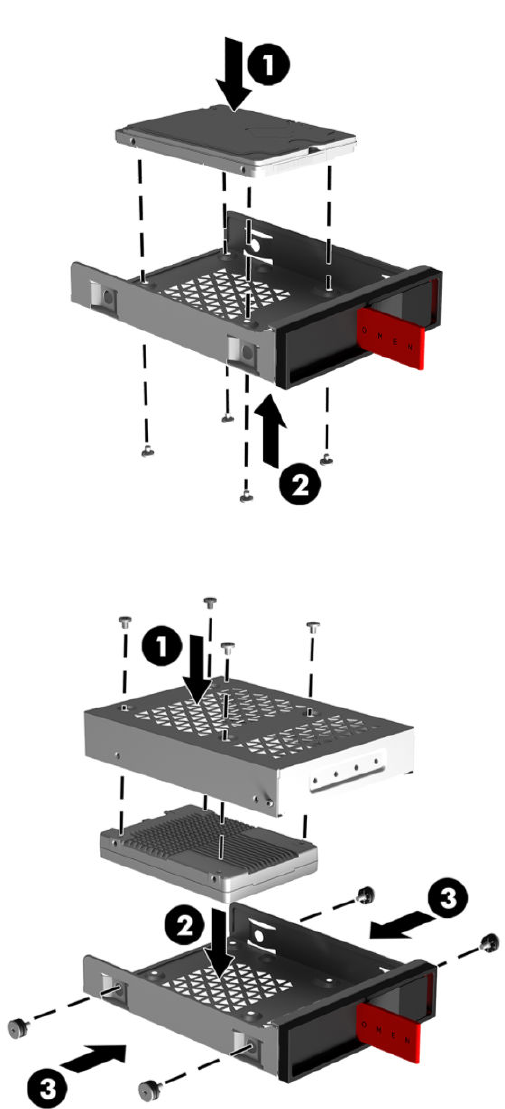

b. 2.5-inch solid-state drive: Insert the drive into the drive cage (1), and then install four mounting
screws (2).
c. U.2 drive: Insert the drive into the adapter bracket and secure with four screws (1). Insert the
adapter bracket assembly into the drive cage (2), and then install four mounting screws (3).
