Installing a 9.5 mm slim optical drive
Before installing the optical drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 20).
2. Remove the access panel (Access panel on page 23).
Install the optical drive:
1. If you are installing a slim optical drive in a bay covered by a bezel blank, remove the front bezel (Front
bezel on page 24) and then remove the bezel blank (Slim optical drive bezel blank on page 25).

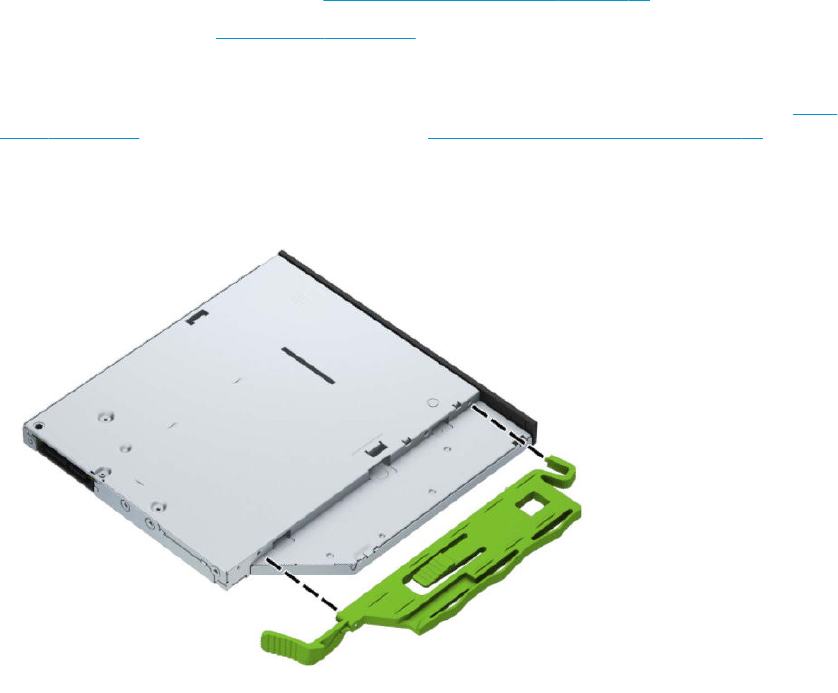

2. Align the small pin on the release latch with the small hole on the side of the drive and press the latch
rmly onto the drive.
