Installation Bulletin - (Windows)

Windows

HP Deskjet 6540-50 series

*c8963-90052*

USB

LAN

123

Printed in <country> 03/2004

Windows

is a registered trademark of Microsoft Corporation.

1 2

Purchase optional HP Jetdirect external print servers

(subject to availability). For network setup, follow

the network setup options on the CD.

Insert CD, then follow onscreen

instructions.

Open cover.

Close cover.

Do not touch copper strip.

Wait for a Wizard screen.

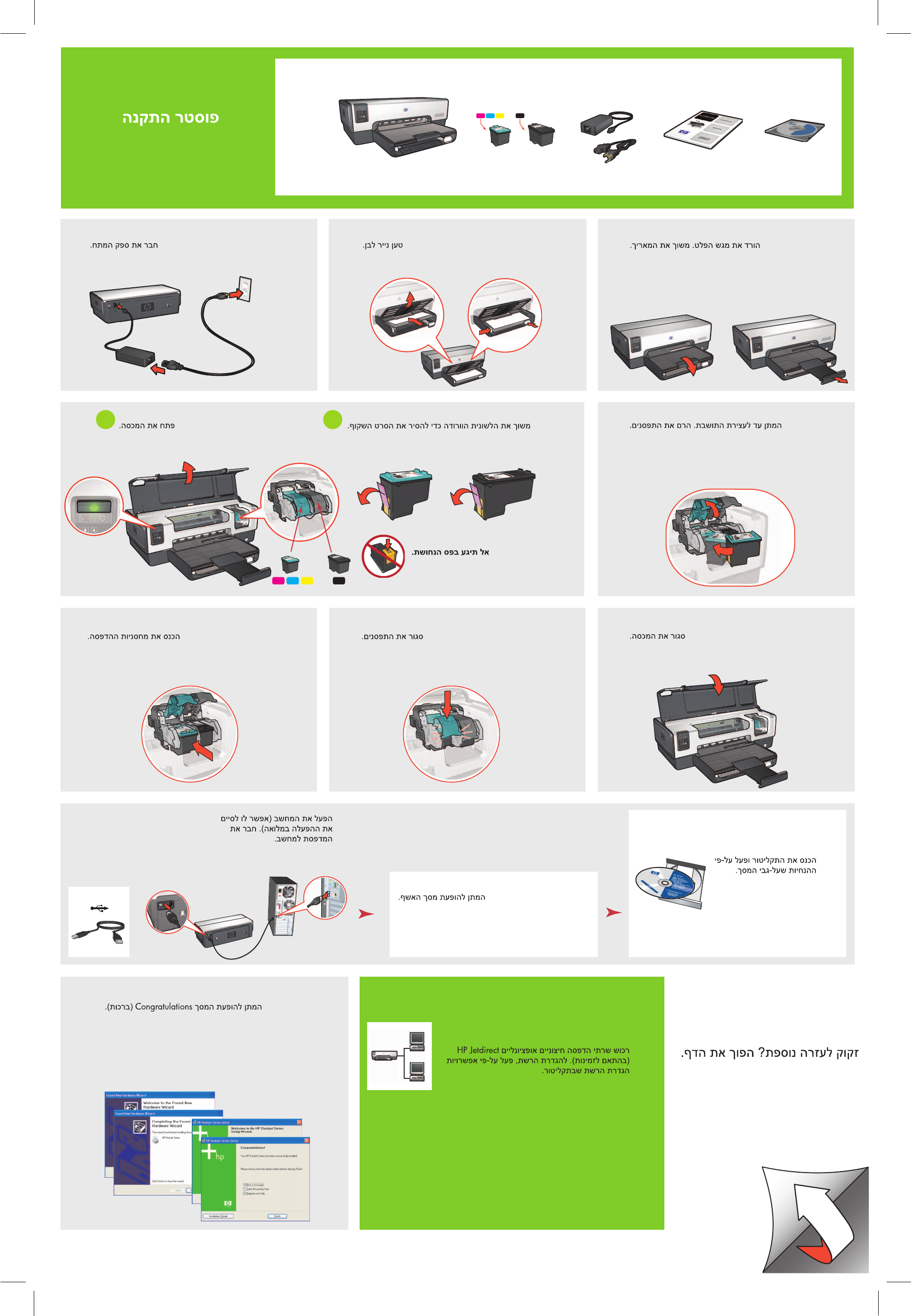

Setup Poster

Insert print cartridges. Close latches.

Turn on computer (allow it to

completely start up). Connect

printer to computer.

Need more help? Turn page.

Pull pink tab to remove clear tape.

Plug in power supply. Load white paper.

Wait until cradle is idle. Raise latches.

Lower Out tray. Pull out extension.

Wait for the Congratulations screen.

PAGE 1
Setup Poster HP Deskjet 6540-50 series 1 *c8963-90052* Windows 2 Plug in power supply. 4 1 Open cover. 2 Load white paper. Pull pink tab to remove clear tape. 3 Lower Out tray. Pull out extension. 5 Wait until cradle is idle. Raise latches. 8 Close cover. Do not touch copper strip. 6 Insert print cartridges. 9 Turn on computer (allow it to completely start up). Connect printer to computer. 7 Close latches. Insert CD, then follow onscreen instructions. Wait for a Wizard screen.
PAGE 2
If you see one of these screens, then follow the steps shown. Windows Me Windows XP Windows 2000 Windows 98 Select hpf6500p.inf. No screens? 1. Click the Start button, then select Run. Need more help? 2. Click the Browse button. 3. Select HPPP CD in the Look in drop-down list. 4. Select Setup, then click the Open button. 5. Click OK, then follow the onscreen instructions. www.hp.com/support If the installation fails... 1 Verify the following: USB USB Printer is turned on.
