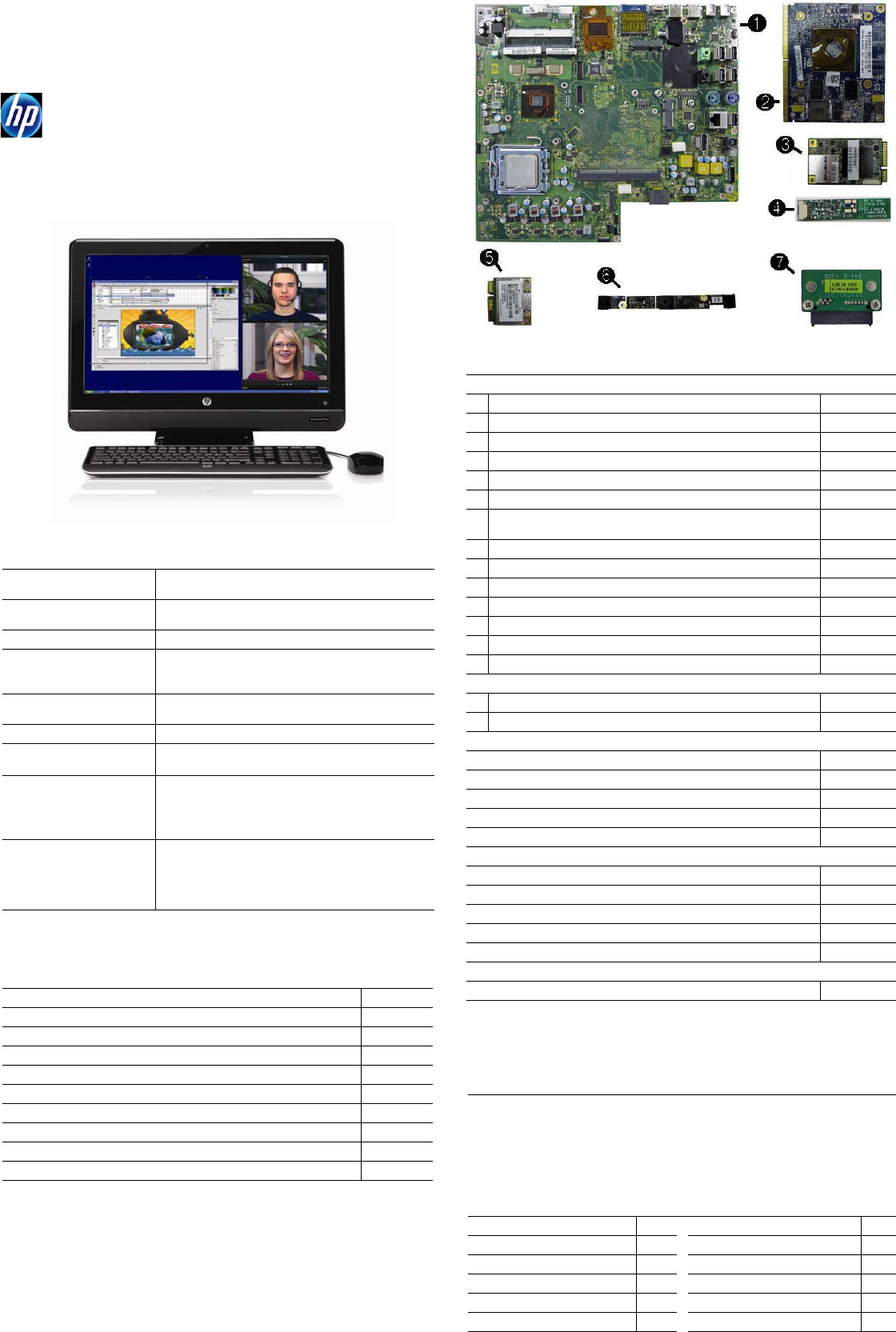

HP Compaq 6000 Pro AIO Illustrated Parts & Service Map 628500-003 page 1
Illustrated Parts & Service Map
HP Compaq 6000 Pro All-In One Business PC
© 2010, 2011, 2013 Hewlett-Packard Development Company, L.P. The informa-
tion contained herein is subject to change without notice. HP shall not be lia-
ble for technical or editorial errors or omissions contained herein. Intel,
Pentium, Intel Inside, and the Intel logo are trademarks or registered trade-
marks of the Intel Corporation and its subsidiaries in the U. S. and other
countries.
Document Number 628500-003. 3rd Edition July 2013.
Key Specifications
Spare Parts
Processor Type Intel® Pentium dual core, Intel Core™2 Duo, Intel Cel-
eron® dual core
RAM Type DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz) non-
ECC
Maximum RAM Supported 8 GB
Expansion Slots • (1) full-height mini PCIe x1
• (1) half-height mini PCIe x1
• (1) MXM 3.0 graphics slot
Graphics Adapter Integrated Intel Graphics Media Accelerator 4500;
MXM graphics
Chipset Intel Q43 Express
Drive Support • (1) 5.25-inch Slimline
• (1) 3.5-inch or 2.5-inch
I/O Interfaces (2) side USB ports, (5) rear USB ports, DisplayPort
monitor output, RJ-45 network connection, 1394 port,
PS/2 keyboard and mouse ports, stereo audio line out-
put; with optional TV tuner: (2) coax jacks, IR Emitter
(Blaster) output (optional)
Operating Systems • Windows 7
• Windows Vista
• Windows XP
• Novell SuSE Linux Enterprise Desktop 11
• FreeDOS
Mass Storage Devices (bracket not spared, reuse existing bracket)
8X DVD-ROM drive 637998-001
8X DVD±RW SuperMulti DL drive 619238-001
4X DVD±RW SuperMulti DL drive 619239-001
8X DVD±RW SuperMulti DL drive, LightScribe, HF 615944-001
8X DVD±RW SuperMulti DL drive, non-LightScribe 657959-001
1 TB hard drive 621418-001
500 GB hard drive 621421-001
320 GB hard drive 621420-001
250 GB hard drive 621419-001
80 GB solid-state drive 607817-001
Standard and Optional Boards
System boards with thermal grease, alcohol pad, and CPU socket cover
1 System board 607818-001
2 Graphics card, G210, 512 MB 621426-001
* Graphics card, HD5570, 1 GB 628380-001
* Graphics card, GFX, 1 GB 652164-001
3 HP TV tuner 613990-001
* TV tuner module for use in the Asia-Pacific region 621424-001
* TV tuner module for use in Hong Kong and the People’s Republic
of China
621423-001
4 Bluetooth module 617047-001
5 WLAN module (802.11b/g/n) 593897-001
* WLAN module (802.11a/b/g/n), 2x2 652165-001
6 Webcam module 625254-001
7 Optical drive board 643153-001
* Brightness board 643152-001
* Hood sensor board 643154-001
Memory modules (PC3-10600)
*2 GB
593895-001
*4 GB
593896-001
Intel Core2 Duo processors with alcohol pad and thermal grease:
E8600, 6-MB cache, 3.33 GHz 497732-001
E8500, 6-MB cache, 3.16 GHz 466170-001
E8400, 6-MB cache, 3.00 GHz 466169-001
E7600, 3-MB cache, 3.06 GHz 573954-001
E7500, 3-MB cache, 2.93 GHz 531988-001
Intel Pentium processors with alcohol pad and thermal grease:
E6700, 2-MB cache, 3.20 GHz 418950-001
E6600, 2-MB cache, 3.06 GHz 602070-001
E6500, 2-MB cache, 2.93 GHz 586748-001
E5500, 2-MB cache, 2.80 GHz 613035-001
E5400, 2-MB cache, 2.70 GHz 586743-001
Intel Celeron processor with alcohol pad and thermal grease:
E3300, 1-MB cache, 2.50 GHz 585886-001
* Not shown
Keyboards (not illustrated)
USB
USB, blue
PS/2
PS2/, blue
Wireless
Wireless, blue
USB, Smartcard
USB, Washable
USB, mini
590271-xx1
658321-xx1
611374-xx1
665887-xx1
611376-xx3
647446-xx1
613463-xx3
613125-xx1
611375-xx3
Brazilian Portuguese -201 LA Spanish -161
French Canadian -121
People’s Republic of China -AA1
International -371 Taiwanese -AB1
International English -AR1 Thai -281
Japanese -291 U.S. -001
Korean (Hangul) -AD1 U.K. -031
