Service Manual Product Information 1-9

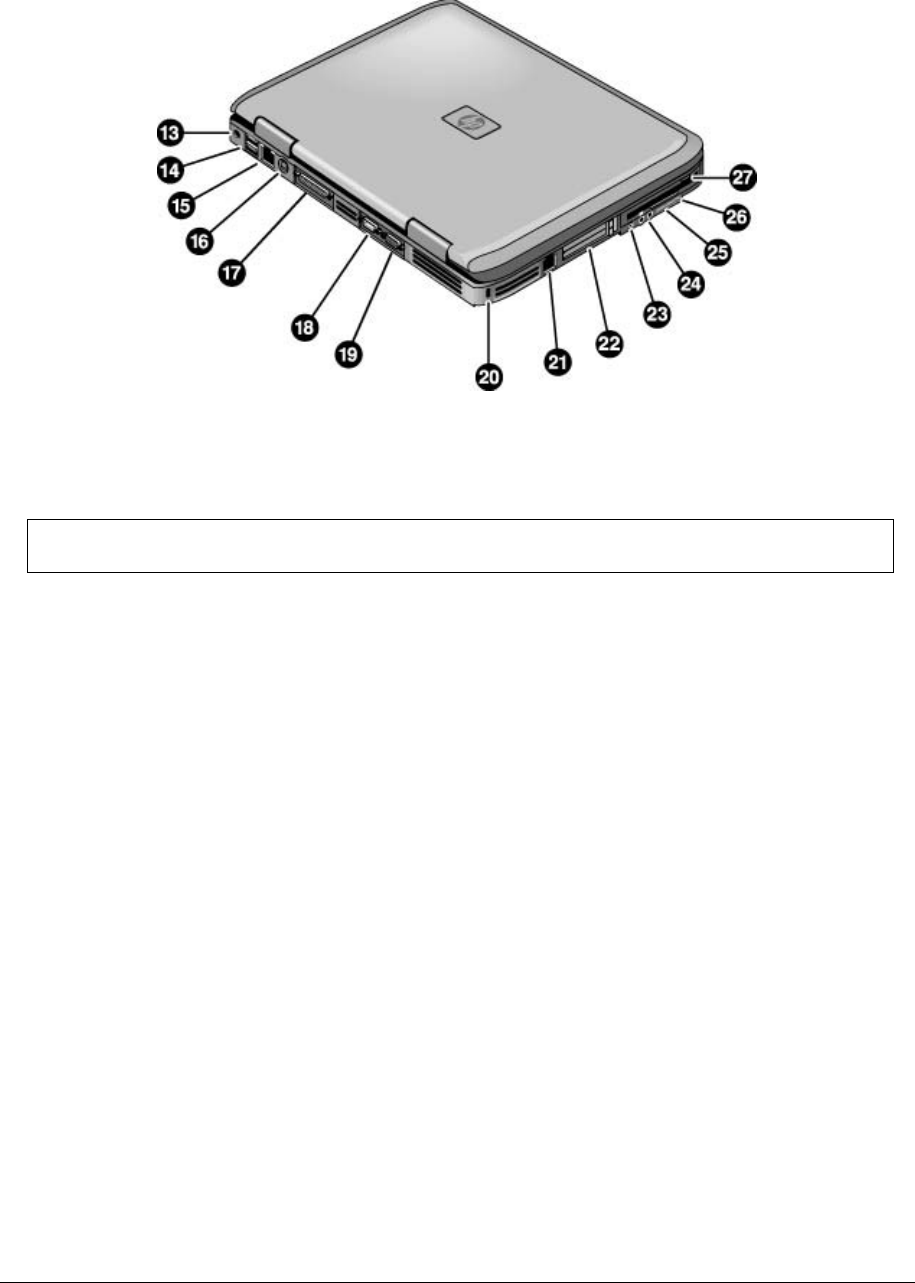

Figure 1-2. Back View
HP Pavilion ze4x00
HP Compaq nx9005 and nx9000
NOTE: Compaq Evo Notebook N1050v, N1010v, and Compaq Presario 2100 and 1100 are very
similar, except for logo.
13. AC adapter jack
14. Two universal Serial Bus (USB) ports
15. LAN port*
16. S-Video port*
17. Parallel port (LPT1), use this port for a parallel
printer or other parallel device
18. Serial port (COM1), use this port for a serial
mouse, modem, printer, or other serial device
19. External monitor port
20. Kensington lock slot (security connector)
21. Modem port*
22. PCMCIA card and CardBus slot and button
23. IEEE 1394 port*
24. Audio jacks (left to right), external microphone
and audio out (headphones)
25. Volume controls*
26. Audio mute button and audio mute light*
27. Floppy drive*
* on certain models
