Service Manual Product Information 1-11

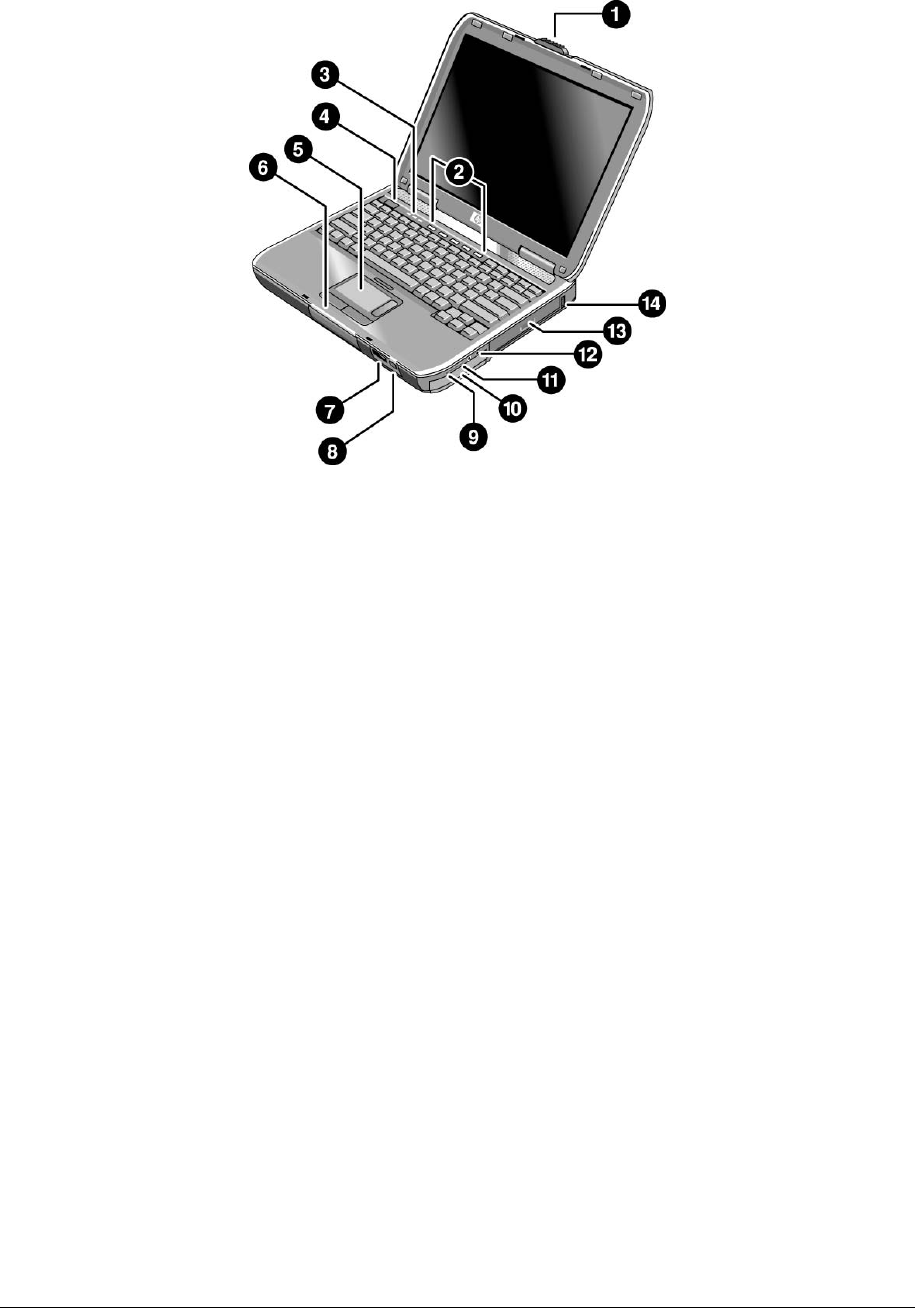

Figure 1-4. Front View
HP Pavilion ze5x00,
HP Compaq nx9010 and nx9008,
and Compaq Presario 2500
1. Notebook open/close latch
2. One-touch buttons
3. Keyboard status lights
4. Power button, turns the notebook on and off
5. Touch pad, scroll pad, Select buttons, plus
on-off button
6. Main status lights (left to right), power mode,
hard disk activity, and battery
7. Infrared port*
8. Wireless on-off button and indicator light*
9. Audio mute button and audio mute light*
10. Battery
11. Volume controls*
12. Audio jacks (left to right): external microphone
and audio out (headphones)
13. CD-ROM, DVD, or other drive
14. Universal Serial Bus (USB) port
* on certain models
