2-10 Removal and Replacement Service Manual
4. Remove the four M3.0×4.0mm screws from the hard disk drive and hard disk drive tray,
and then lift the drive out of the tray.
5. Remove the connector bar from the hard disk drive.
NOTE: Connector bar not used on HP Pavilion ze5x00 series

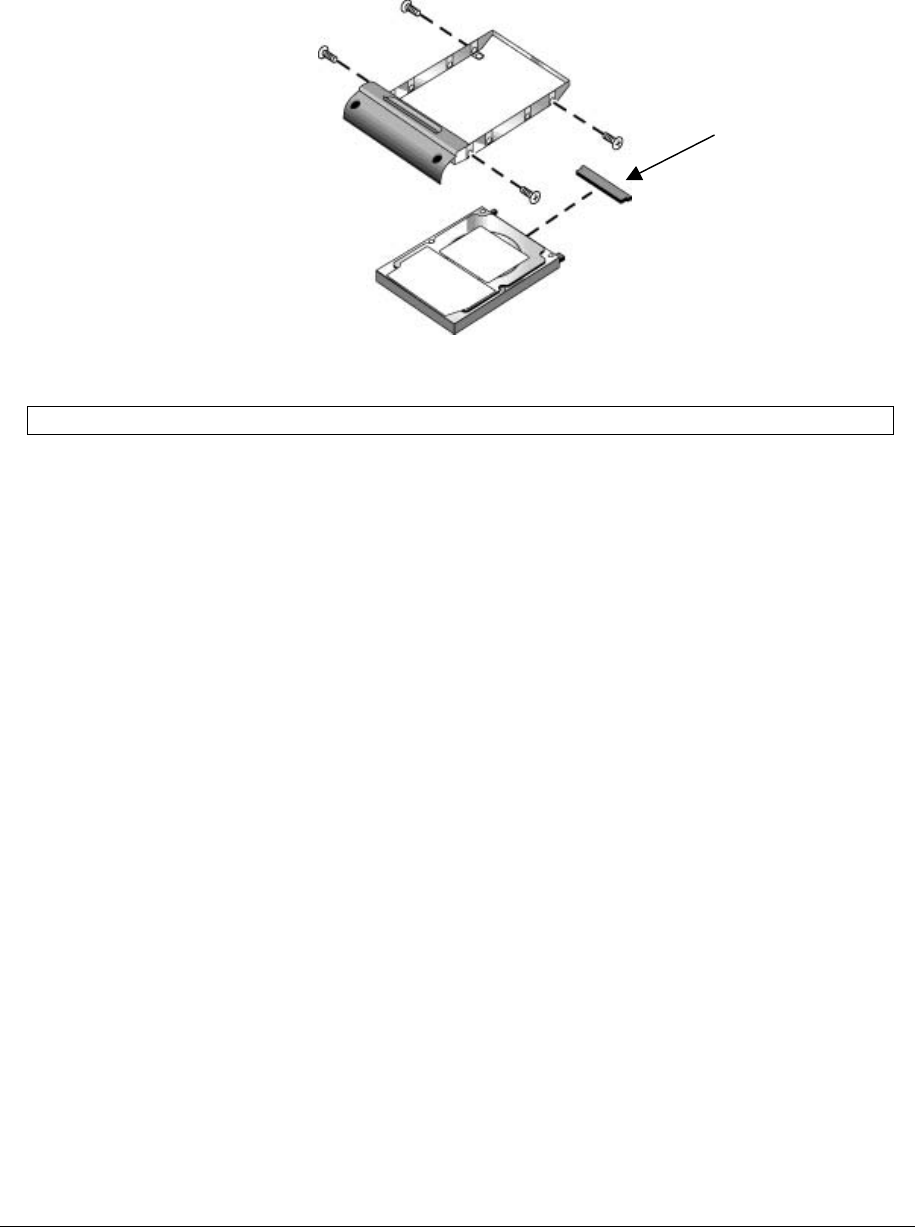

Figure 2-8. Removing the Hard Disk Drive Tray
See note below
