Service Manual Removal and Replacement 2-27

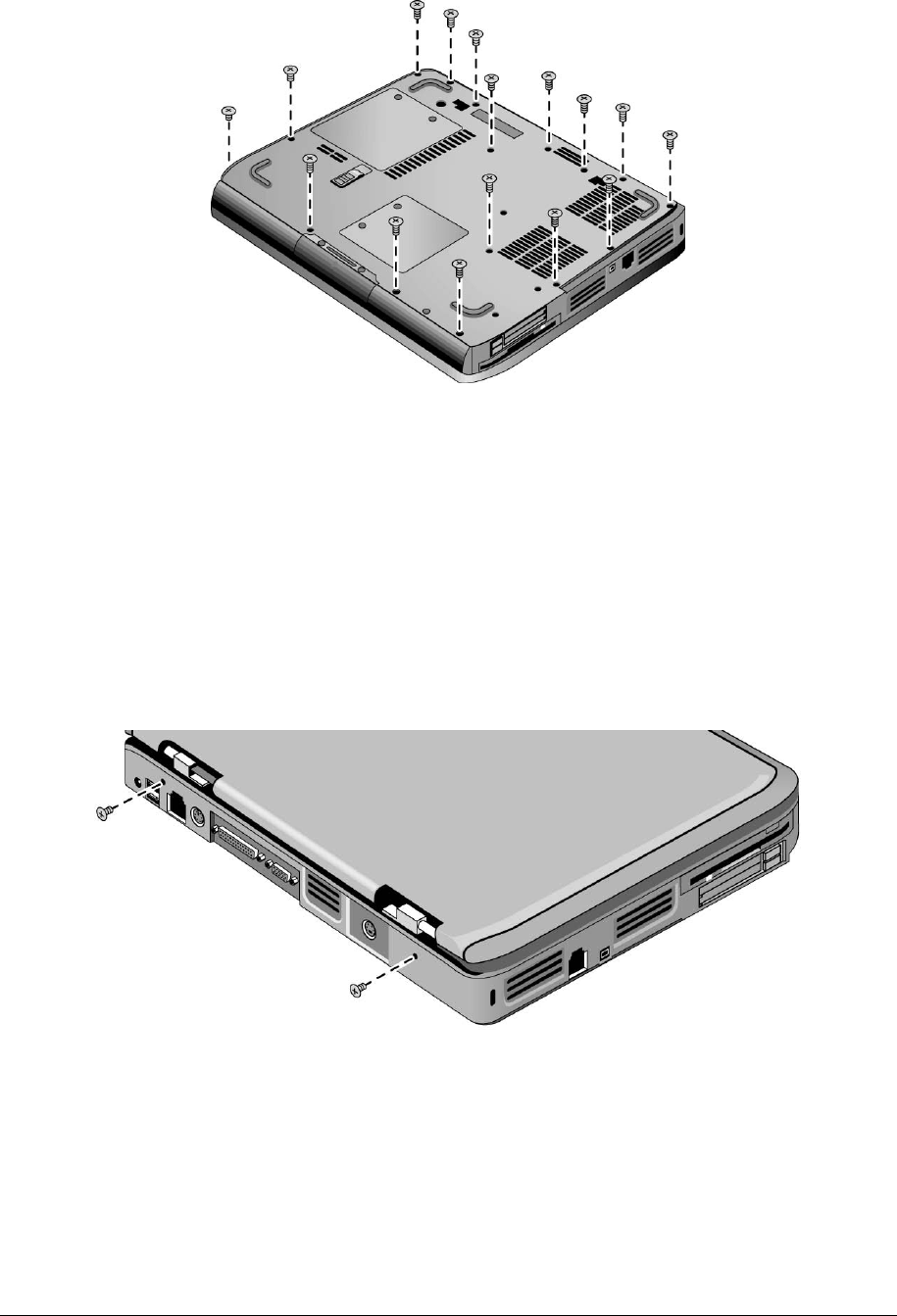

Figure 2-19. Removing the Top Case Screws
HP Pavilion 5x00,
HP Compaq nx9010 and nx9008,
and Compaq Presario 2500 Models
5. Turn the notebook top side up with the rear panel facing forward.
6. Remove the two M2.5×7.0mm screws from the rear of the bottom case.
Figure 2-20. Removing the Top Case Screws
HP Pavilion 5x00,
HP Compaq nx9010 and nx9008,
and Compaq Presario 2500 Models
