2-30 Removal and Replacement Service Manual

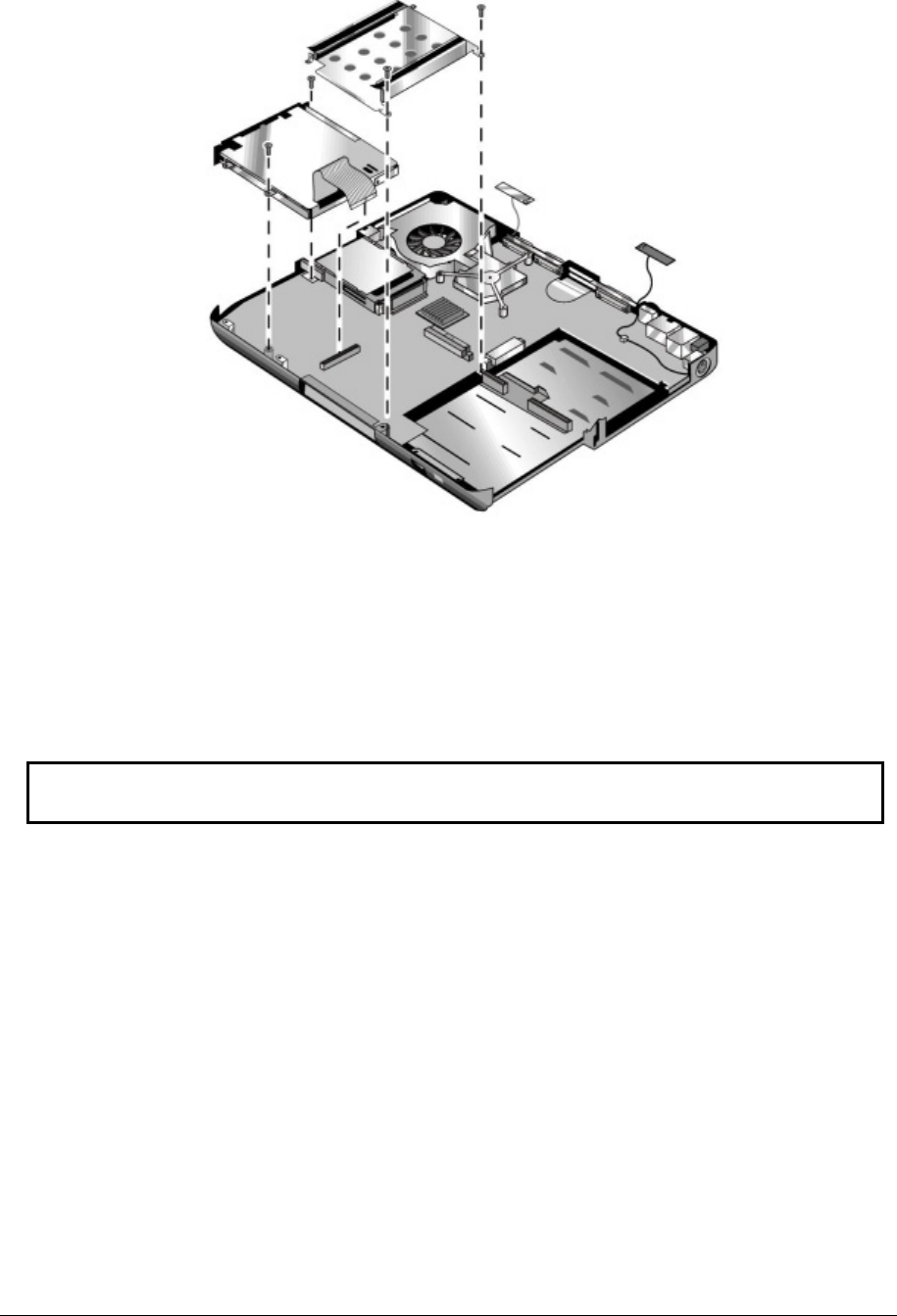

Figure 2-22. Removing the Floppy Drive
HP Pavilion 4x00, HP Compaq nx9005 and nx9000,
Compaq Evo Notebook N1050v and N1010v,
and Compaq Presario 2100 and 1100 Models
Reassembly Notes
CAUTION: Do not excessively bend or fold the floppy drive cable. Excessive flexing can
damage the floppy drive cable connections.
• Connect the floppy drive cable to the motherboard prior to replacing the floppy drive and hard
disk drive guide.
• When replacing the hard disk drive guide, do not secure the left side to the motherboard. The
left side of the guide gets secured during the top case replacement procedure.
