2-44 Removal and Replacement Service Manual
c. To install an AMD CPU module, insert the module into the socket on the motherboard
(the CPU module is keyed for installation and can be inserted only in one way).

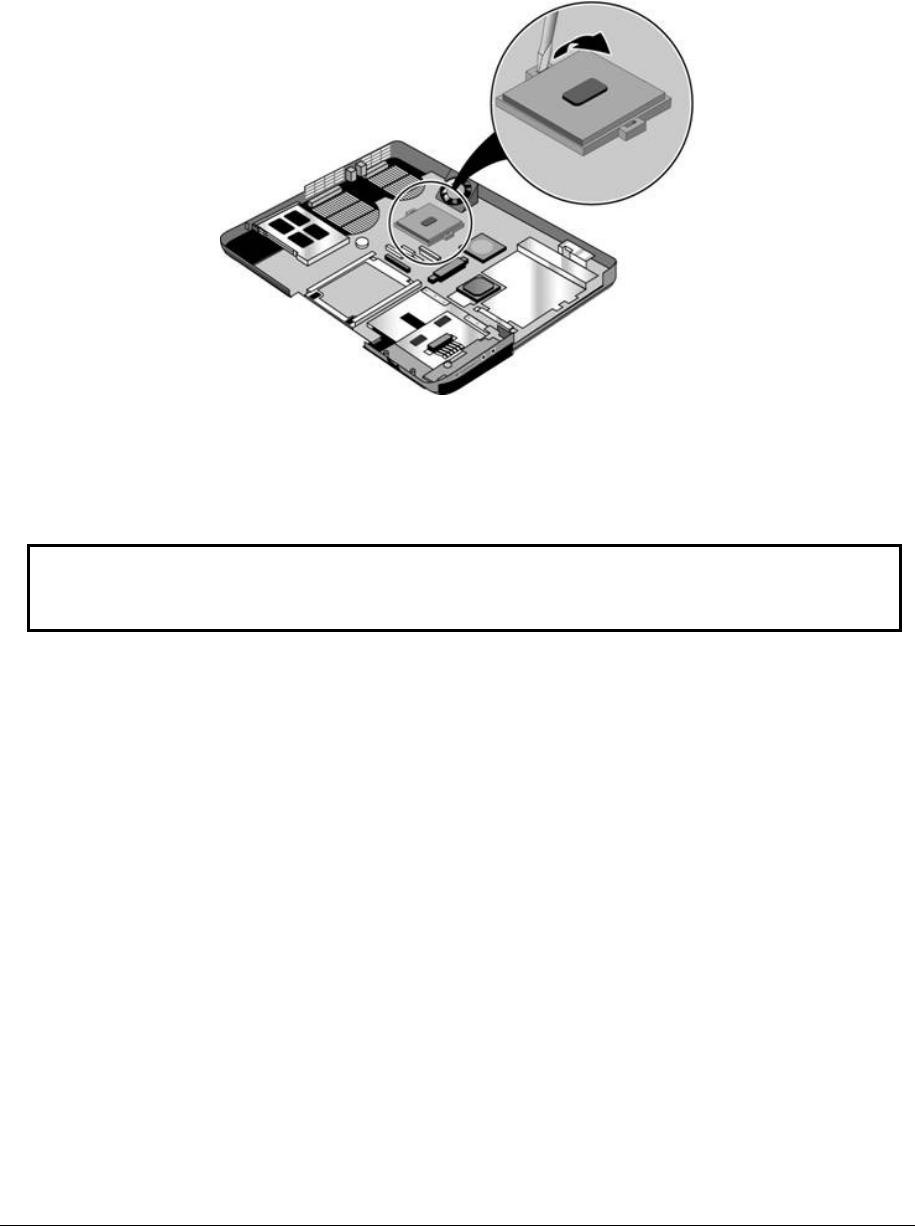

d. Place the flat-blade screwdriver into the position shown in Figure 2-31 and move as
indicated by the arrow in the illustration below to secure the CPU module into the socket.
Figure 2-31. AMD CPU Module Installation
HP Pavilion 4x00, HP Compaq nx9005 and nx9000,
Compaq Evo Notebook N1050v and N1010v,
and Compaq Presario 2100 and 1100 Models
CAUTION: Each time you install a new CPU module, you must also replace the heat sink’s
thermal pad to maintain optimum heat transfer. If necessary, use a sharp knife or scraper to
carefully remove the old thermal from the heat sink. Then attch the new thermal pad.
