2-48 Removal and Replacement Service Manual
6. Disconnect the 1394 cable from the motherboard.
7. Remove the M2.5×6.0mm screw that secures the RJ11/1394 connector module to
the bottom case.
8. Remove the RJ11/1394 connector module.

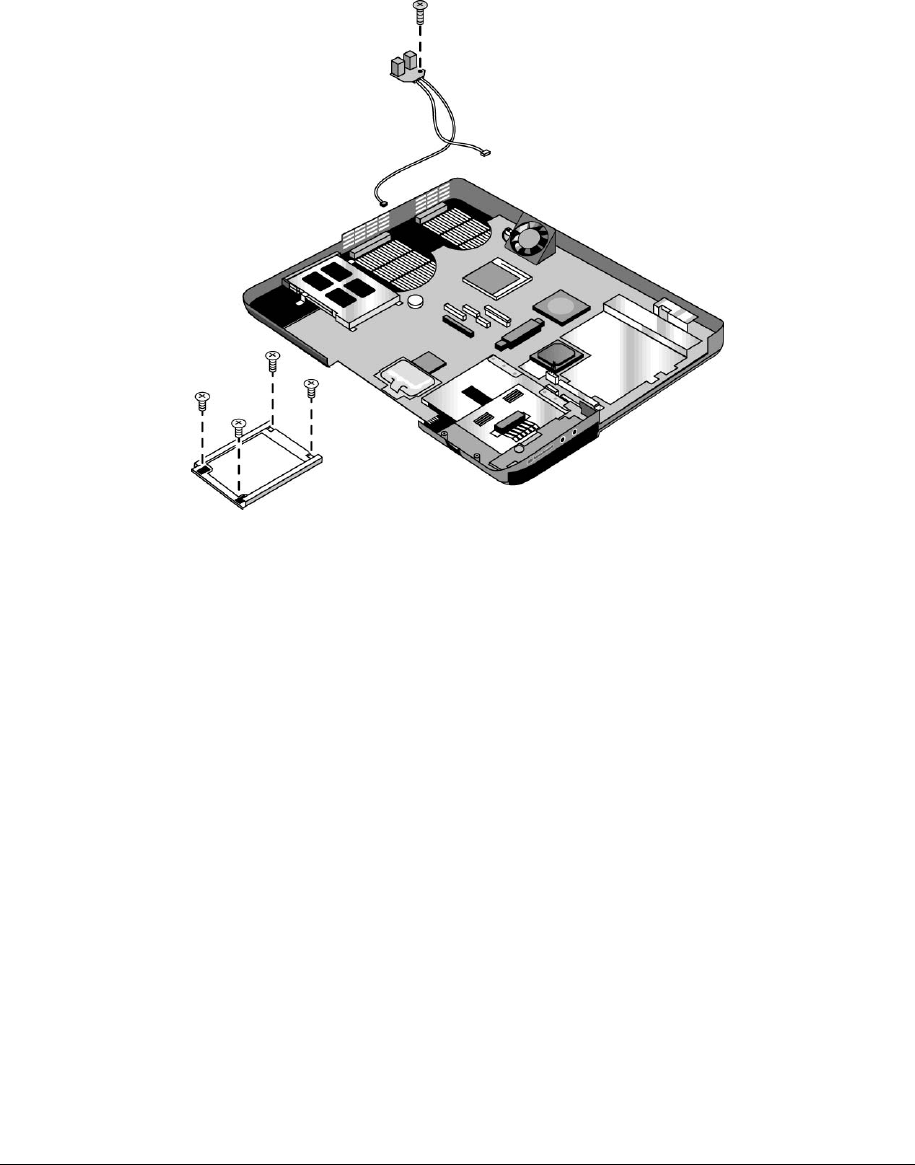

Figure 2-33. Removing the RJ11/1394 Connector Module
HP Pavilion 5x00,
HP Compaq nx9010 HP nx9008,
and Compaq Presario 2500 Models
