Installation 24
1.
On HP-UX and Solaris systems, include the following environment variables in the $HOME/.dtprofile
file for each user ID used to view the NNM maps. This action ensures that the discovered HP nodes
display using the HP specific icons.
IPMAP_NO_SYMBOL_CHANGES=TRUE
export IPMAP_NO_SYMBOL_CHANGES
2. On HP-UX and Solaris systems, include the following environment variable in the $HOME/.dtprofile
file for each user ID used to view the NNM maps. This action enables you to launch to the desired
HP Systems Insight Manager server.
IMADDRESS=IP address or hostname of the Systems Insight Manager server
export IMADDRESS
3. Enable Map Persistence to ensure that the HP status updates are populated on both the main map
and submaps within the NNM.
4. To provide access to HP Systems Insight Manager from the NNM Home Base, edit the insight.xml
file, perform a search, and replace "localhost" with the name or address of the HP Systems Insight
Manager Server. The insight.xml file is located in the $OV_WWW_REG/dynamicViews/$LANG
directory.
The following sections describe how to implement these settings within the NNM environment on HP-UX
and Solaris platforms ("Setting map persistence in HP-UX and Solaris environments" on page 24) and
Windows® platforms ("Setting map persistence in a Windows environment" on page 26).
Setting map persistence in HP-UX and Solaris environments

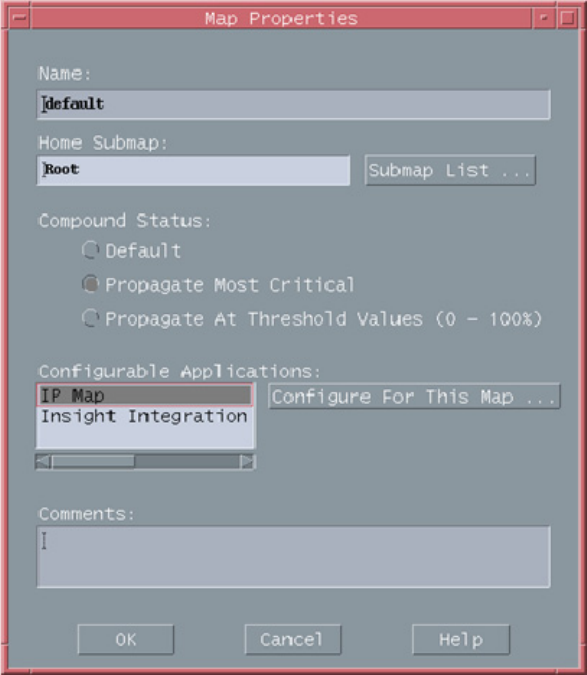

1. From the NNM segment map, select Map>Map Properties. The Map Properties window appears.
