Using the software 41
• isCpqRILOE—True/False
• cpqRILOEip—IP Address of the RILOE or ILO
The CPQDIS process discovers the management processor agent running on the server and then retrieves
the IP address for the cpqRILOEip field.
In addition, the foreground process CPQRILOE.EXE launches to the address of the RILOE or ILO
management processor from the server selected on the NNM map. See "Product architecture (on page
9)" for a full description of the processes installed by the Insight Integration.
If the IP address does not appear correctly, verify the IP address returned by the host system by using the
SNMPGET command (snmpget HOSTNAME 1.3.6.1.4.1.232.9.2.5.1.1.5.2).
For example:
D:\snmpget spiral 1.3.6.1.4.1.232.9.2.5.1.1.5.2
232.9.2.5.1.1.5.2 : IpAddress: 172.25.162.159
Finding systems installed with RILOE or iLO
To display all discovered HP systems installed with RILOE or iLO, perform a Find By Attribute procedure
on the isCpqRILOE attribute:

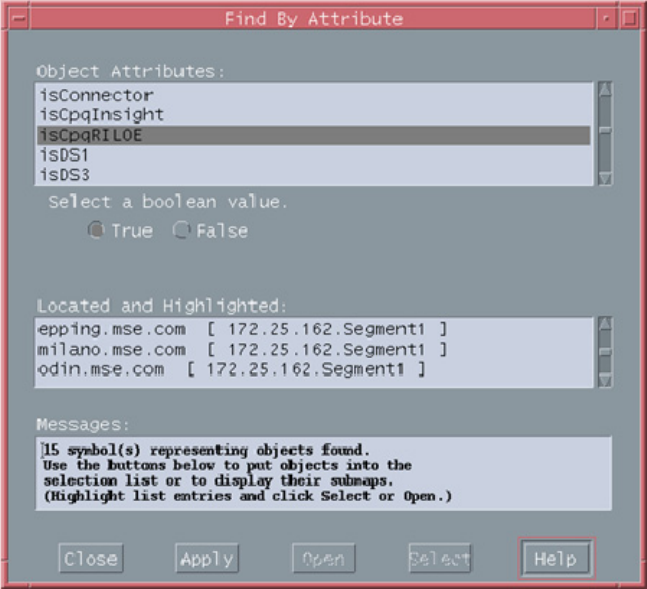

1. From the NNM interface, select Edit>Find>Object by Attribute. The Find By Attribute window
appears.
2. In the Object Attributes list, highlight isCpqRILOE, and click Apply. All nodes matching the
isCpqRILOE attribute are listed in the Located and Highlighted field.
