Using the software 50

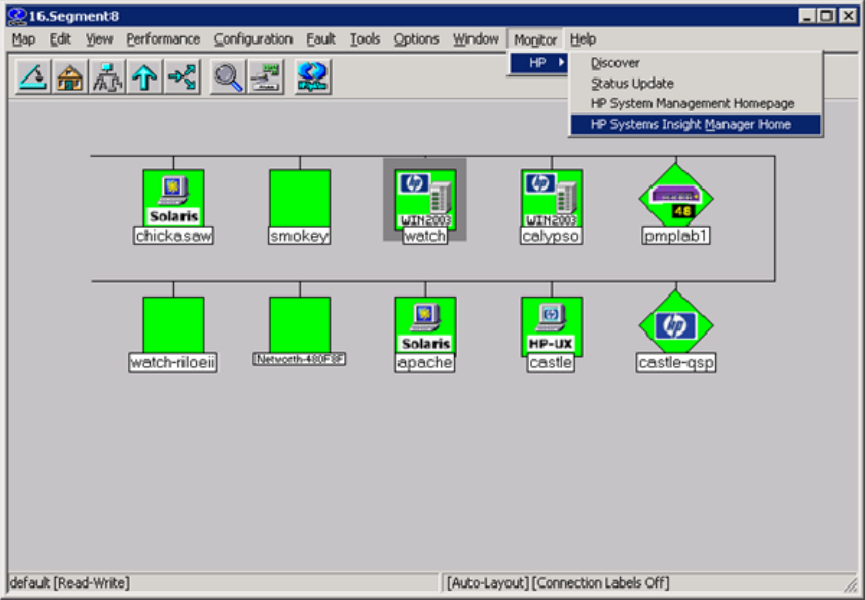

HP extensions to the HP NNM Map menu options
HP menu extensions provided with the Insight Integration are located under Monitor>HP.
The HP menu contains the following options:
• Discover (on page 50)
• Status Update (on page 51)
• HP System Management Homepage ("HP System Management Homepage menu option" on page
51)
• HP Systems Insight Manager Home ("HP Systems Insight Manager Home menu option" on page 51)
Discover
Nodes running the HP Insight Management Agents are automatically discovered by the CPQDIS
background process, which is initialized by the OVSTART command. The Discover menu option can be
used to manually identify new nodes as servers and desktops running the HP Insight Management Agents
outside of the defined discovery parameters in the CPQCONFIG.DAT file. See "Configuration files (on
page 22)" for more information on editing the CPQCONFIG .DAT parameters. See "Product architecture
(on page 9)" for a full description of the processes installed by the Insight Integration.
The Discovery menu option is unavailable if any of the following conditions exist:
• No nodes are selected.
• Any of the selected nodes are of noncomputer type.
To discover nodes in the current submap:
1. Select the required nodes on the segment submap.
