Using the software 57
3.

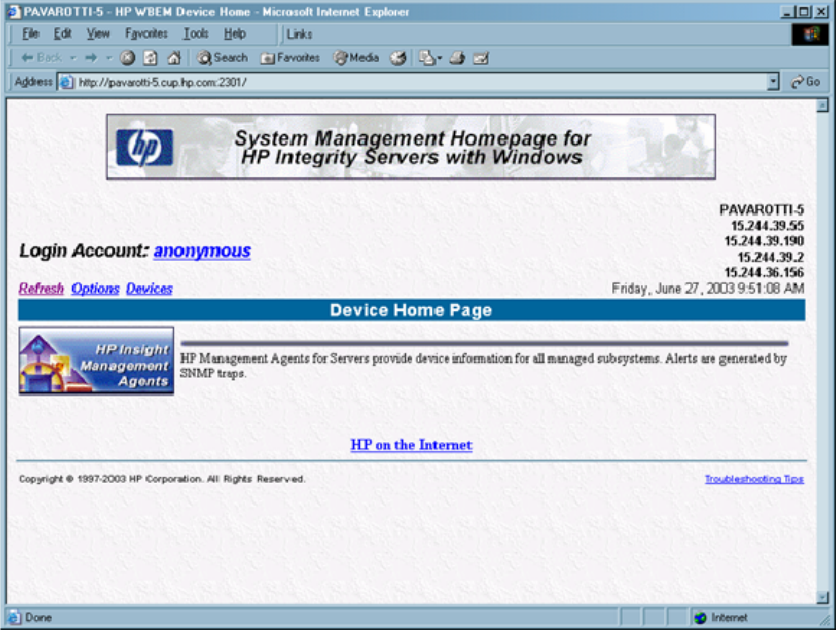

Click the HP Insight Management Agent icon to open the management summary page. This page
presents details on system configuration and hardware status for the selected HP Integrity Superdome
server.
Additional systems data for Integrity servers is also available through the Insight Information menu options
on the device menu. These menu entries provide quick access to a selection of key system configuration,
status, and performance data obtained directly from the HP Insight Management Agents.
These menu options are not intended to provide all the information for a managed HP system. The most
complete system configuration and status data for an individual HP system can be viewed by browsing to
the web-based HP System Management Homepage of the Insight Management Agents.
See "HP Insight Information menu options (on page 61)" for more information on the new menu options.
HP event management in
HP Network Node Manager
The Insight Integration combines more than 400 SNMP event definitions for HP server, client, and storage
configurations into the NNM Alarm Browser. All raw HP trap content is written to the NNM Event Log
and then translated into plain text through the CPQTRAPD process before it is displayed in the NNM
Alarm Browser.
All HP events also include color-coded severity levels and additional information for suggested resolutions.
This level of event translation makes for easier event identification and root-cause analysis, which helps
solve problems faster and improve systems availability.
