Using the software 74
• Processor Utilization—30 minutes
• Processor Utilization—1 hour

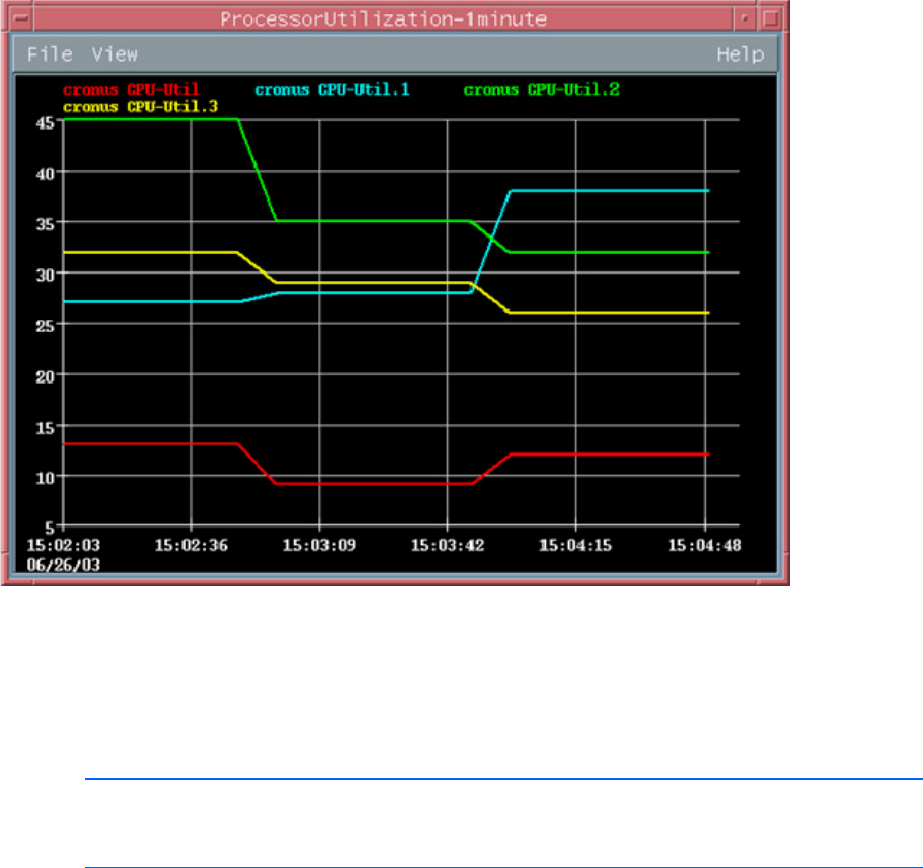

The following is an example of the CPU Utilization—1 Minute graph.
Some data might not be supported on all systems. For example, the System Temperatures graph will
return "-1" for values that are not supported. Web-enabled Insight Management agents display "N/A" for
unsupported items in summary data.
Information that is more useful is provided for data collection if the MIBs are loaded into NNM. For
example, instead of displaying the label "3" for data collection, "cpqHoCpuUtilFiveMin" will display with
the MIBs loaded.
NOTE: When using the Insight Integration, do not load the traps from the Insight MIBs. For
proper operation, implement the predefined trap definitions provided in the Insight Integration
configuration files.
The HP Insight Graphs option appears on all items with the CpqInsight property set to "True." In some
cases, the graphs will not apply to the system on which the option displays. For example, the ProLiant
BL10e enclosure has this option, but the graphs return no data.
HP Insight rack information
New menu options have been added for devices classified as blade servers. These entries provide access
to information from the HP Rack MIB, but only appear on systems that have been classified by the
discovery process as blade servers.
The HP Insight Rack Information menu entries are also available when the HP Onboard Administrator is
selected. The FRU Table is not available when the HP Onboard Administrator is selected.
