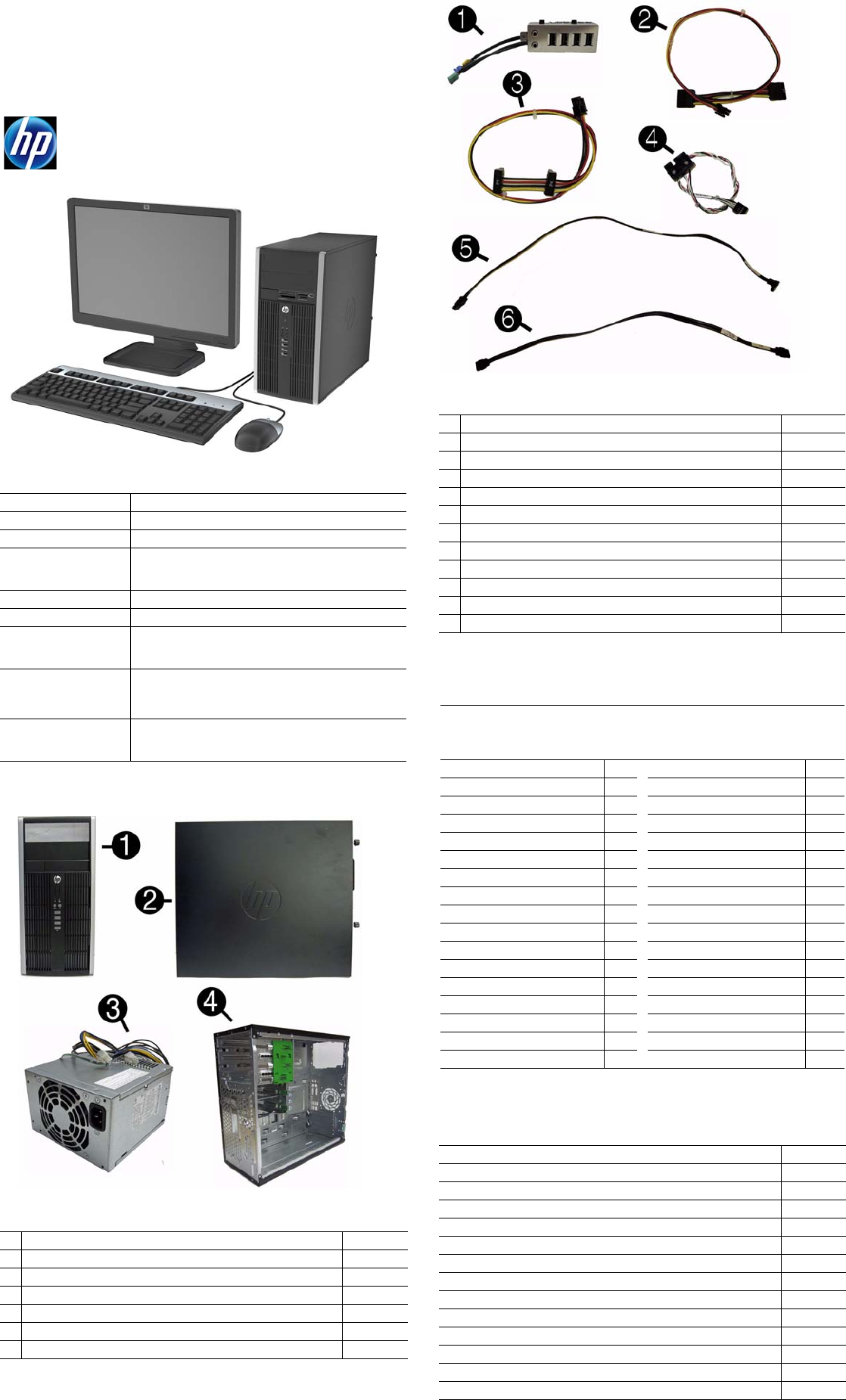

Illustrated Parts & Service Map: 8200 Elite Series Microtower

HP Compaq 8200 Elite, MT 649705-001 page 1
Illustrated Parts & Service Map
HP Compaq 8200 Elite Business PC
Microtower
© 2011 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for tech-
nical or editorial errors or omissions contained herein.
Document Number 649705-001. 1st Edition March 2011.
Key Specifications
Spare Parts
Processor Type Intel® Core i7, i5, i3
RAM Type
Non-ECC DDR3 PC3-10600 (1333 MHz) & PC3-8500 (1066 MHz)
Maximum RAM 16 GB
Expansion Slots • (2) PCIe-x16
• (1) PCIe-x1
• (1) PCI
Chipset Intel Q67 Express
Graphics Adapter Integrated Intel HD graphics
Bays • (2) external 5.25-inch
• (2) internal 3.5-inch
• (1) external 3.5-inch
I/O Interfaces Front: (4) USB, microphone, headphone
Rear: (6) USB, PS/2 keyboard and mouse, line in, line out,
VGA, DisplayPort v1.1a, RJ-45, serial port, eSATA (optional),
parallel (optional)
Preinstalled Operating
Systems
• Windows® Vista
• Windows 7
• FreeDos
System Unit
1 Front bezel 646826-001
2 Access panel 646825-001
3 Power supply, 320W, 90% efficient 613764-001
* Power supply, 320W 613765-001
4 Chassis not spared
* 5.25-inch bezel blank, jack black 570838-001
* 3.5-inch bezel blank, jack black 583653-001
* Not shown
Cables
1 Front I/O assembly 646827-001
2 SATA optical drive power cable 646834-001
3 SATA hard drive power cable 646833-001
4 Power switch/LED assembly 646828-001
5 SATA cable, 18 inch, 1 straight end, 1 angled end (unlabeled) 639958-001
6 SATA cable, 17.7 inch, 2 straight ends 639959-001
* SATA cable, 18 inch, 1 straight end, 1 angled end (labeled) 646830-001
* DMS-59 to dual VGA cable 463023-001
* Adapter, DisplayPort to VGA 603250-001
* Adapter, DisplayPort to DVI 484156-001
* Adapter, DisplayPort to HDMI 617450-001
* DisplayPort cable 487562-001
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
Washable
Smartcard
537745-xx1
537746-xx1
613125-xxx
631411-xx4
Arabic -17x LA Spanish[b] -16x
Belgian[b] -18x Norwegian[b] -09x
Brazilian Portuguese[b] -20x
People’s Republic of China[b] -AAx
Bulgaria [c] -26x Portuguese -13x
Czech -22x Romanian [c] -27x
Danish[b] -08x
Russian -25x
Finnish[a] -35x Saudi Arabia -DEx
French[b] -05x Slovakian -23x
French Canadian -12x
South Korea[b] -KDx
German[b] -04x Spanish[b] -07x
Greek[b] -15x Swedish[b] -10x
Hebrew -BBx Swiss -11x
Hungarian -21x Taiwanese[b] -ABx
International[b] -37x Thai[b] -28x
International English[b] -L3x
Turkish -14x
Italian[b] -06x U.S. -00x
Japanese[b] -29x U.K.[b] -03x
[a] not for 537745
[b] not for 613125
[c] not for 631411
Mass Storage Devices (not illustrated)
16X SATA DVD±RW drive with LightScribe 581600-001
16X SATA DVD-ROM drive 581599-001
Blu-ray BD-RW SuperMulti DL Drive with LightScribe 617030-001
1 TB, 7200 rpm SATA hard drive 636930-001
750 GB, 7200 rpm SATA hard drive 632938-001
500 GB, 7200 rpm SATA hard drive 636929-001
320 GB, 7200 rpm SATA hard drive, 2.5-inch 634824-001
300 GB, 10000-RPM SATA3 hard drive 639695-001
300 GB, 10000-RPM SATA2 hard drive 648963-001
250 GB, 7200 rpm SATA hard drive 636927-001
160 GB, 10000-RPM SATA hard drive 639694-001
160 GB, 10000-RPM SATA hard drive, 2.5-inch 508312-001
160 GB Solid State Drive (SSD) 646809-001
80 GB Solid State Drive (SSD) 607817-001
