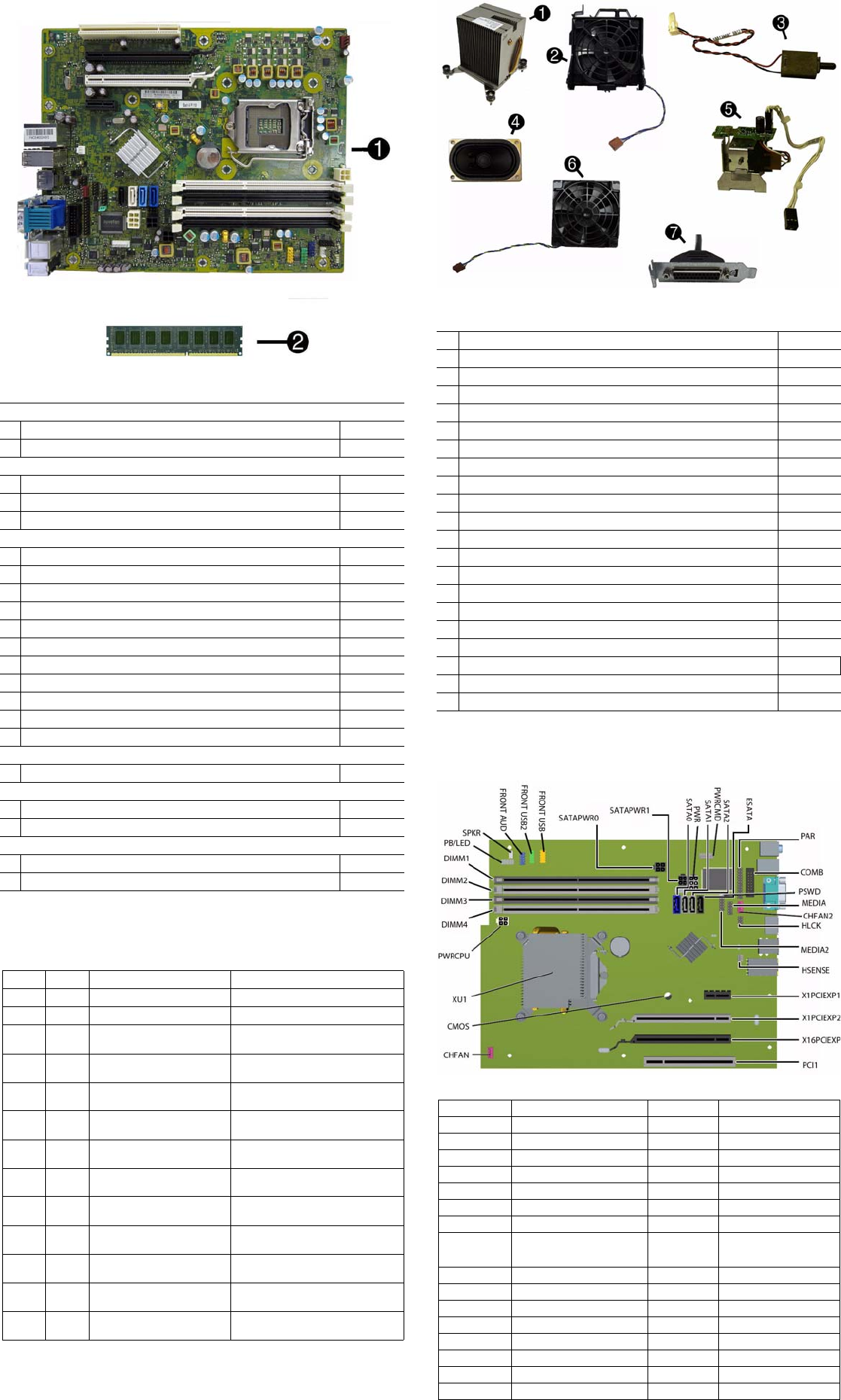

Illustrated Parts & Service Map: 8200 Elite Series Microtower
HP Compaq 8200 Elite, MT 649705-001 page 2
System Board
Standard and Optional Boards
System boards with thermal grease, alcohol pad, and CPU socket cover
1 System board 611834-001
* System board, does not include Trusted Platform Module (TPM) 649741-001
Memory modules (PC3-10600, CL9)
21 GB
635802-001
*2 GB
635803-001
*4 GB
585157-001
Other boards
* HP WLAN 802.11 b/g/n 538048-001
* Antenna for use with 538048-001 583345-001
* nVidia Quadro NVS295 PCIe x16 graphics card, 256 MB 641462-001
* nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB 632486-001
* nVidia GF405, DVI/VGA PCIe x16 graphics card, 512 MB 641732-001
* ATI Radeon HD6350 PCIe x16 graphics card, 512 MB 637995-001
* ATI Radeon HD6450 PCIe x16 graphics card, 512 MB 637996-001
* ATI Radeon HD6570 PCIe x16 graphics card, 1 GB 637997-001
* AMD FirePro 2270 PCIe x16 graphics card, 512 MB 637213-001
* Intel PRO/1000CT NIC, includes bracket 635523-001
* HP FireWire / IEEE 1394a PCIe x1 Card 637591-001
Intel Core i7 processors (include thermal material)
* 2600, 3.4 GHz, 8-MB L3 cache, 95W 638632-001
Intel Core i5 processors (include thermal material)
* 2500, 3.3 GHz, 6-MB L3 cache, 95W 638631-001
* 2400, 3.1 GHz, 6-MB L3 cache, 95W 638630-001
Intel Core i3 processors (include thermal material)
* 2120, 3.3 GHz, 3-MB L3 cache, 65W 638629-001
* 2100, 3.1 GHz, 3-MB L3 cache, 65W 638628-001
* Not shown
Diagnostic LEDs
LED Color LED Activity State/Message
Power Green On Computer on
Power Green 1 blink every 2 seconds Normal Suspend Mode
Power Red 1 blink every second followed
by a 2 second pause
CPU thermal shutdown
Power Red 3 blinks, 1 blink every second
followed by a 2 second pause
Processor not installed
Power Red 4 blinks, 1 blink every second
followed by a 2 second pause
Power failure (power supply overload)
Power Red 5 blinks, 1 blink every second
followed by a 2 second pause
Pre-video memory error
Power Red 6 blinks, 1 blink every second
followed by a 2 second pause
Pre-video graphics error
Power Red 7 blinks, 1 blink every second
followed by a 2 second pause
System board failure (ROM
Power Red 8 blinks, 1 blink every second
followed by a 2 second pause
Invalid ROM based on Checksum
Power Red 9 blinks, 1 blink every second
followed by a 2 second pause
System powers on but is unable to boot
Power Red 10 blinks, 1 blink every second
followed by a 2 second pause
Bad option card
Power Red 11 blinks, 1 blink every second
followed by a 2 second pause
Current processor does not support a
feature previously enabled.
none none System does not power on and
LEDs are not flashing
System unable to power on
Miscellaneous Parts
1 Heat sink 645326-001
2 Fan chassis with guard 585884-001
3 Hood sensor 638816-001
4 Speaker, 40mm x 70mm 645330-001
5 Solenoid lock 641498-001
6 Chassis fan, 92mm x 92mm 636922-001
7 Printer port, PCI card 638817-001
* Serial port, PCI card 638815-001
* Fan duct assembly 646824-001
* Card reader, 22-in-1 636166-001
* Grommet, hard drive isolation, blue 594220-001
* USB powered speakers 571536-001
* Mouse, PS2, optical, jack black 537748-001
* Mouse, USB, BFR-PVC 590270-001
* Mouse, washable 619580-001
* Mouse, optical, jack black 444740-001
* Mouse, laser, jack black 570580-001
* USB 3.0 port, PCIe x1 card 616610-001
* eSATA port assembly, PCI card 645558-001
* Hard drive conversion bracket 397117-001
* Clamp lock, includes universal cable (plate not included) 508987-001
*Not shown
System Board Connectors and Jumpers (component location may vary)
SPKR Speaker connector HLCK Hood lock connector
FRNT AUD Front panel connector MEDIA2 Media card reader connector
FRONT_USB2
2nd USB connector HSENSE Hood sensor connector
FRONT_USB 1st USB connector X1PCIEXP1 PCIe X1 slot
SATA PWR0
Optical drive power connector X1PCIEXP2 PCIe X1 slot
SATA PWR1
Hard drive power connector X16PCIEXP PCIe X16 slot
SATA0 1st hard drive (SATA3.0) PCI1 PCI slot
PWR Main power connector CHFAN Fan connector
SATA1 2nd hard drive, or 2nd ODD if an
ESATA Adapter Cable exists
(SATA 3.0)
CMOS CMOS header
PWR CMD Power connector XUI
Processor socket
SATA2 1st optical drive (SATA 2.0) PWRCPU CPU power connector
ESATA eSATA connector or 2nd ODD DIMM4 Memory socket - Channel A
PAR Parallel port connector DIMM3 Memory socket - Channel A
COMB Serial port DIMM2 Memory socket - Channel B
PSWD Password header DIMM1 Memory socket - Channel B
MEDIA
Media card reader connector
PB/LED Power switch connector
CHFAN2 System fan connector
